Sq Ft
4,238 FT²
Bed
4
Bath
3.5
Stories
2
Garage
3
Depth
89'
Width
50'
On Sale
$1,287.75
$1,287.75
© copyright by designer
View All 5 Images | Photographs may reflect modified home
Sq Ft
4,238 FT²
From
$1,287.75
Bed
4
Bath
3.5
Stories
2
Garage
3
Depth
89'
Width
50'

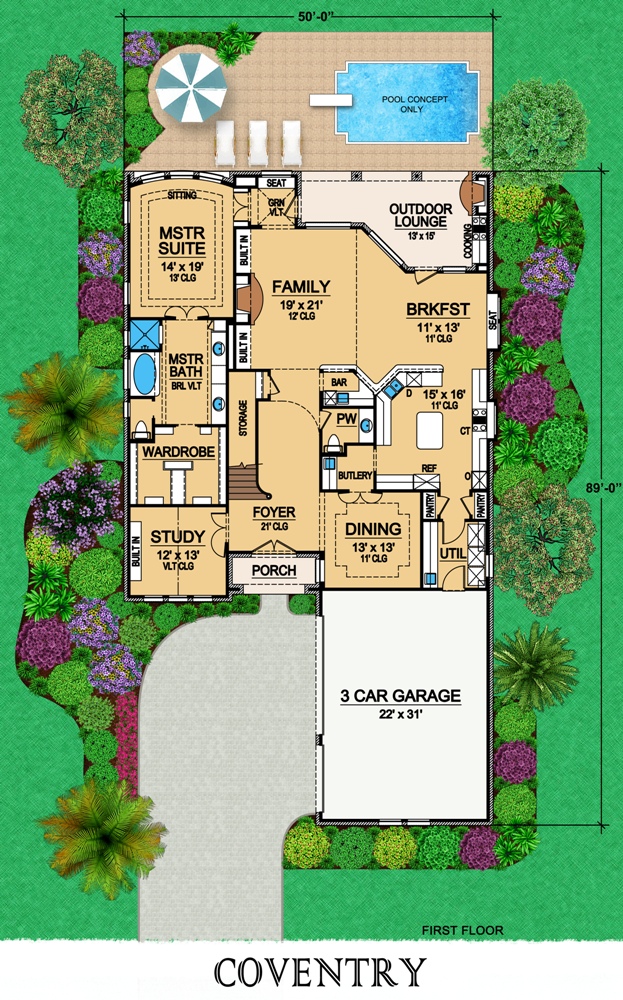

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

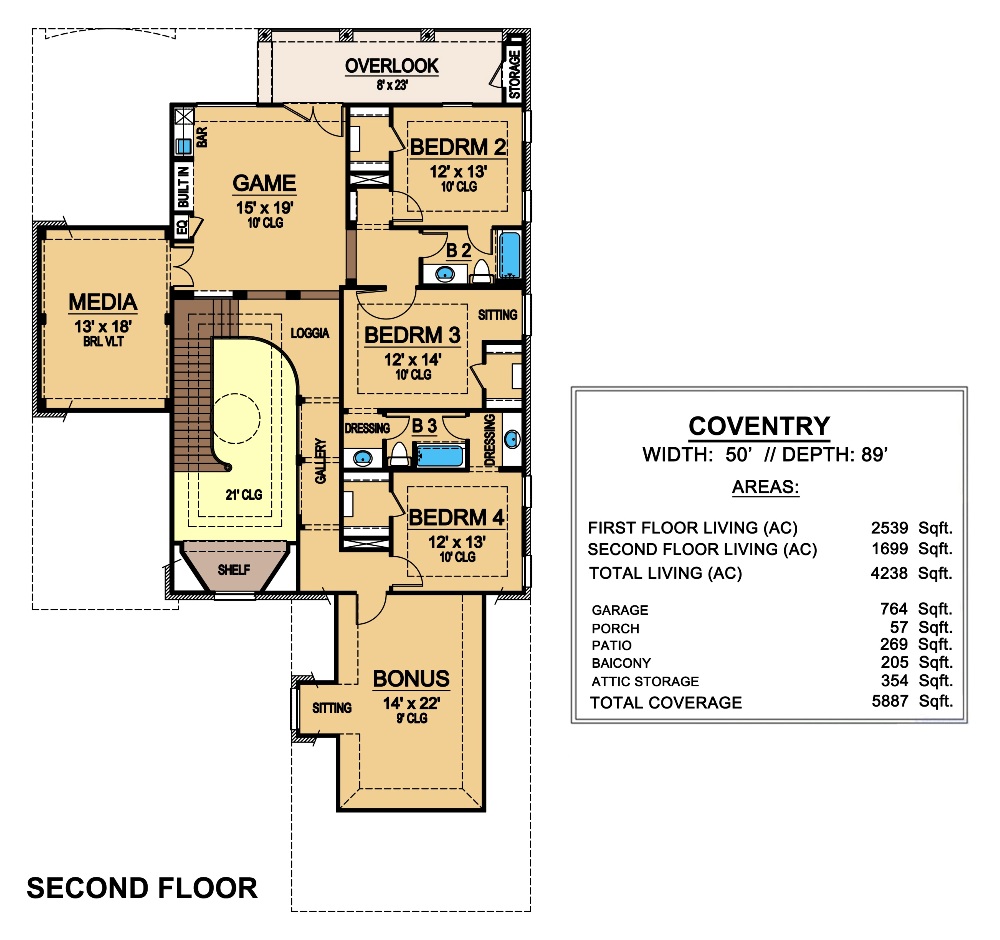

This luxury house plan would be the perfect choice for a narrow lot. The two story foyer opens to the elegant dining room on the right which has direct access to the butlery for ease in serving, to the left is a quiet study with built-in shelves for extra storage. The large kitchen offers a free-standing island and a breakfast bar that separates the kitchen from the breakfast. The breakfast area gives easy access to the outdoor lounge, where a fireplace and outdoor cook area allows for cookouts year around. The family room offers plenty of built-ins, and a cozy fireplace. The master suite has a bayed sitting area, trey ceilings and double doors into the lavish master bath. The master bath features a separate shower and bathtub, his and hers vanities, a barrel vault ceiling and a very spacious wardrobe. The second floor houses three family bedrooms with walk-in closets, full bathrooms. To complete the second floor, and this luxurious house plan is a media room with barrel vaulted ceilings, and a game room with built-ins and a bar.


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Garage Location
Front
Garage Options
Attached
Side-entry
5,887 Ft
2
Total Structure
4,238 Ft
2
Total Heated
2,539 Ft
2
1st Floor
1,699 Ft
2
2nd Floor
4
Bedrooms
3.5
Bathrooms
3
Garage
2
Stories
50' 0"
Width
89' 0"
Depth
39' 0"
Height
11' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
12
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
764 Ft
2
Garage
354 Ft
2
Bonus Room
Exterior Styles


Plan Package Options

 Select Plan Package
$1,365
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,365
$2,050
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,050
$2,360
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,360
 Need To Reverse Plan? (Optional)
$175
Readable Reverse

Reverse house plans with readable text and dimensions

$175
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
