Recently Viewed Plans | Advanced Plan Search

Sq Ft
3,432 FT²

Beds
4

Baths
4.5

Stories
2

Garage
2

Depth
58' 2"

Width
70'

From
$1,695.00

Front Rendering

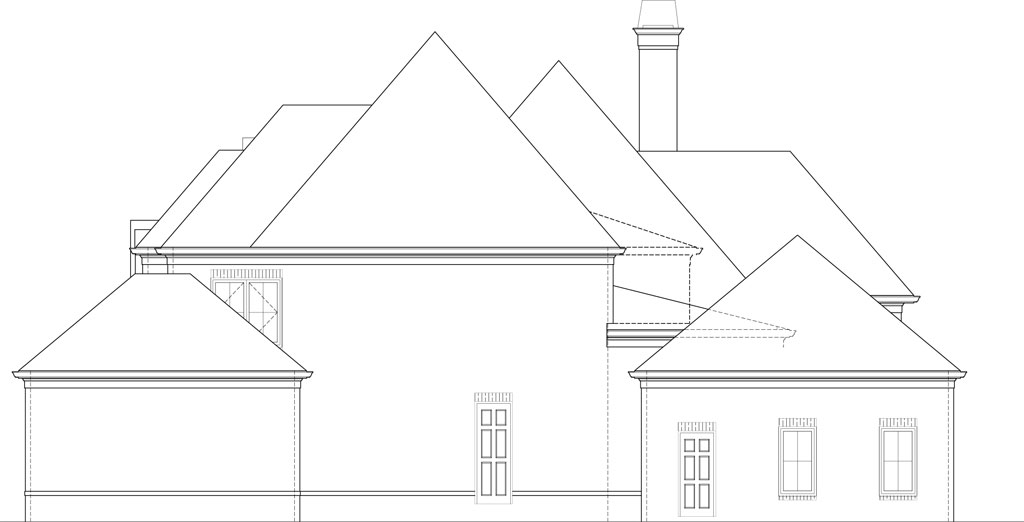

Right Elevation

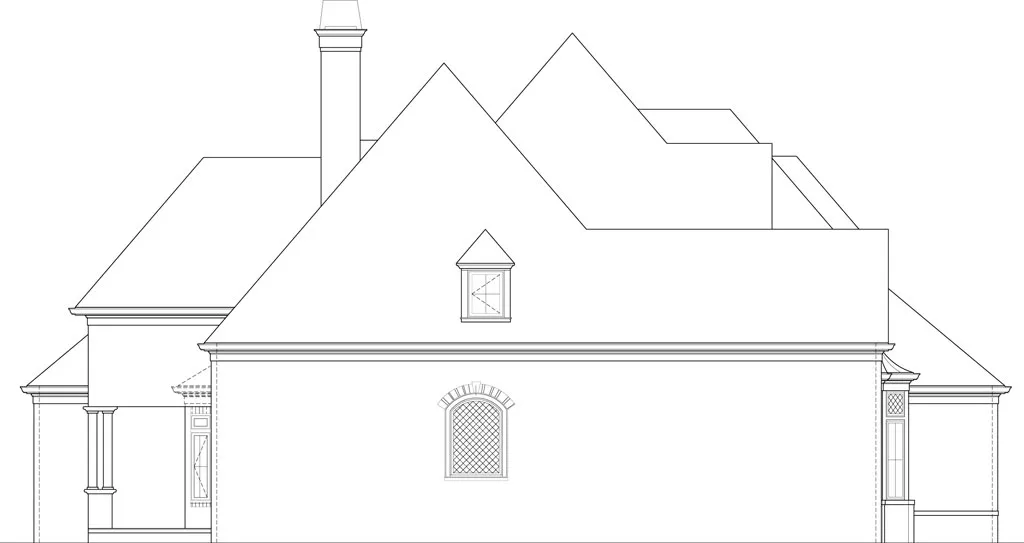

Left Elevation

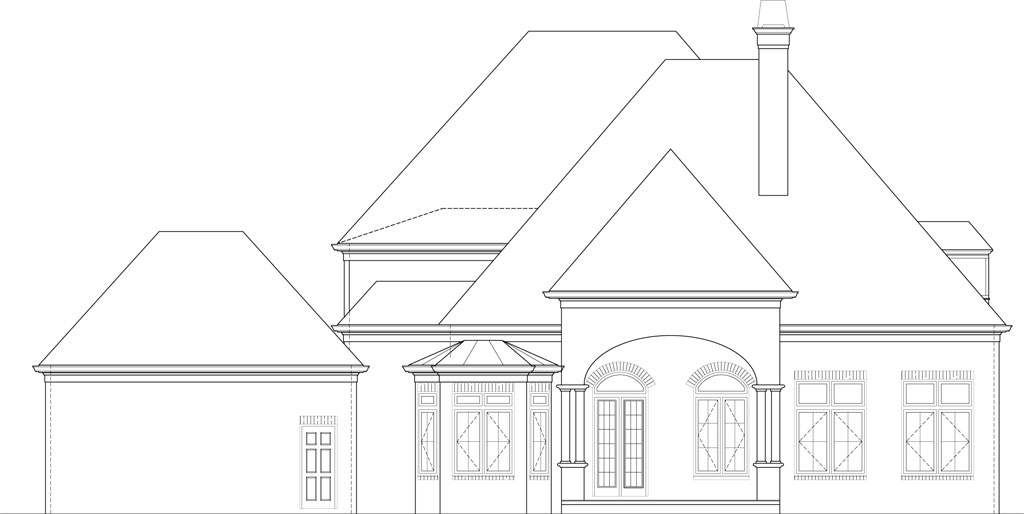

Rear Elevation

View All 4 Images | Photographs may reflect modified home

Sq Ft

3,432 FT²

From

$1,695.00

Beds

Baths

4.5

Stories

Garage

Depth

58' 2"

Width

70'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

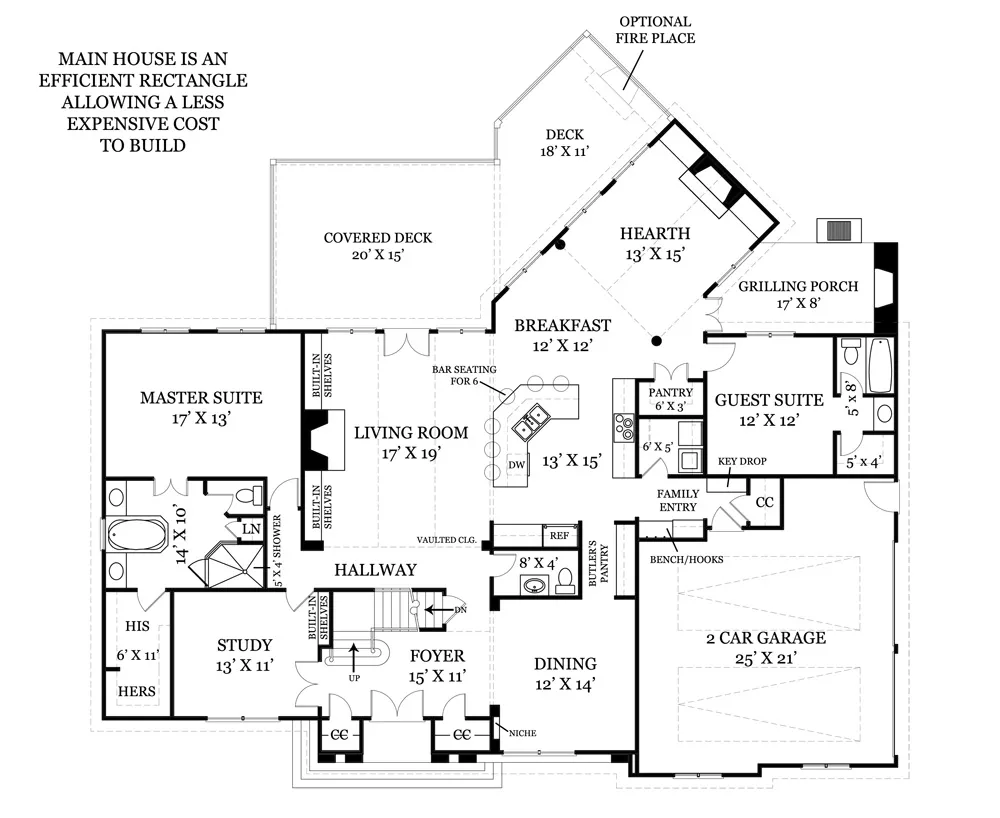

First Floor Plan

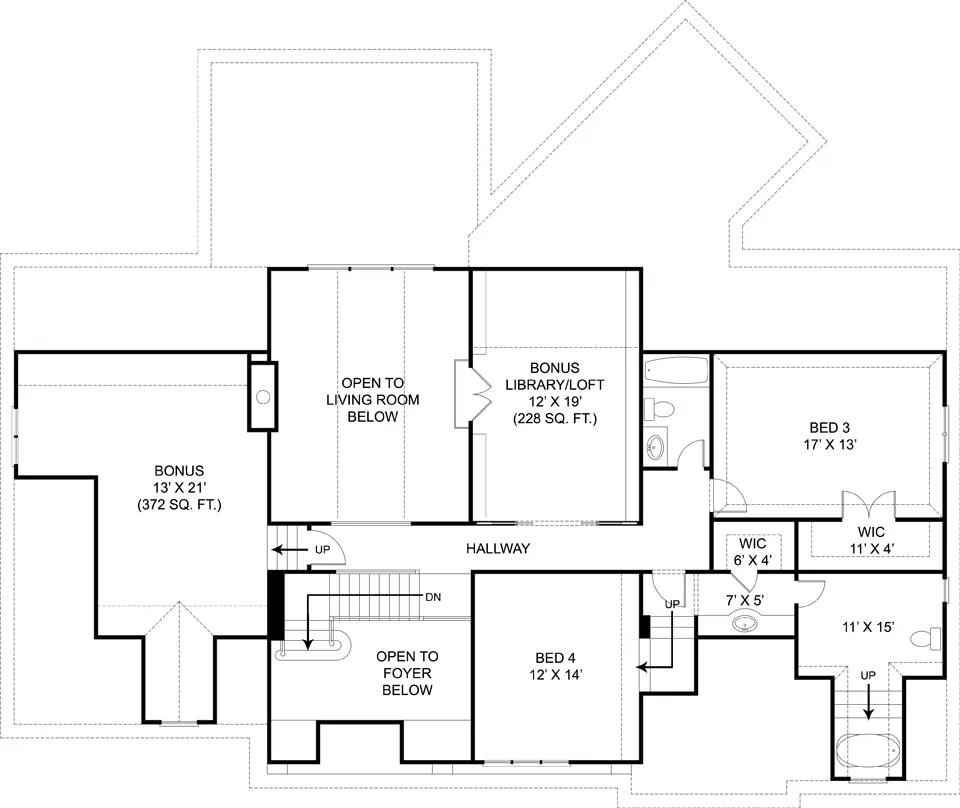

Second Floor Plan

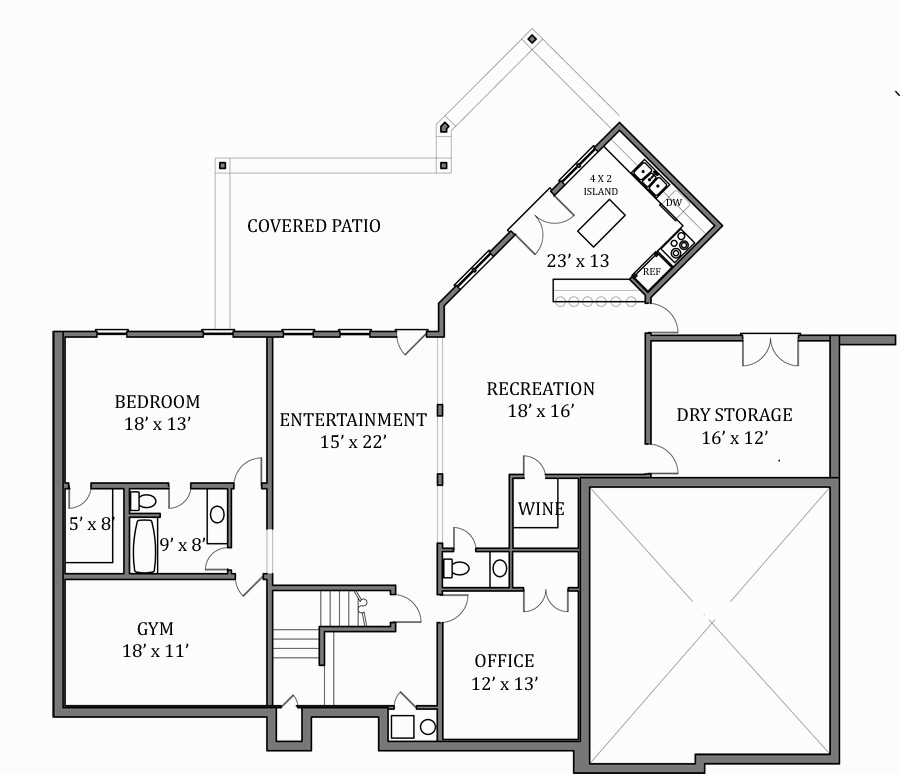

Basement

First Floor Plan

Second Floor Plan

Basement

About This Plan

Reminiscent of a cottage on Mackinaw Island or some other exclusive enclave, the columned portico is tall enough to showcase the large transom lights and make the interior bright and sunny. The layout is efficient: a welcoming foyer leads to the large two-story living room, with a fireplace and deck access. The master suite and bath are located on the first floor along with the study and a guest room. Two bedrooms share a full bath upstairs. There's also room for a library or loft, plus additional bonus space, making this a home for comfortable everyday enjoyment and casual entertaining.

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area

Bedroom features

Guest Suite
Primary Bdrm Main Floor

Exterior features

Deck
Rear Porch

Foundation Options

Daylight Basement
Walkout Basement

Additional features

Great Room
Home Office
Library/Media Rm
Unfinished Space
Vaulted Ceilings

Garage Location

Side

Garage Options

Attached
Side-entry

3,432 Ft

Total Heated

2,310 Ft

1st Floor

1,122 Ft

2nd Floor

2,044 Ft

Lower Floor

Bedrooms

4.5

Bathrooms

Garage

Stories

70' 0"

Width

58' 2"

Depth

32' 6"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

8/12

Gable Roof Pitch

7/12

Dormer Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

530 Ft

Garage

232 Ft

Storage

374 Ft

Bonus Room

Exterior Styles

Cottage

Craftsman

Traditional

Collections

Luxury

Mountain

Old House Classics

Plan Package Options

Important info before you buy

Select Plan Package

$1,695

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,695

$2,125

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,125

$2,225

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,225

$2,495

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,495

$3,290

CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

$3,290

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
