House Plan 5469: Castle Hills

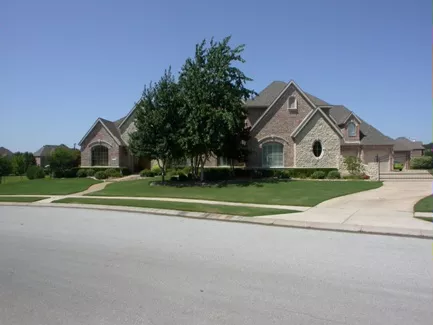

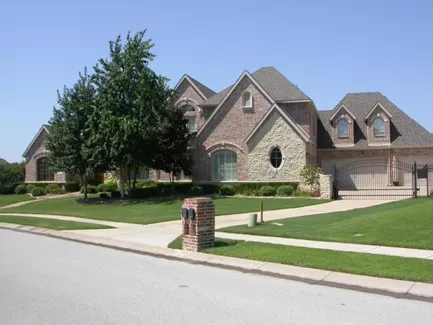

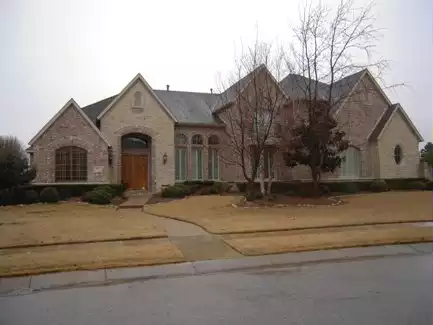

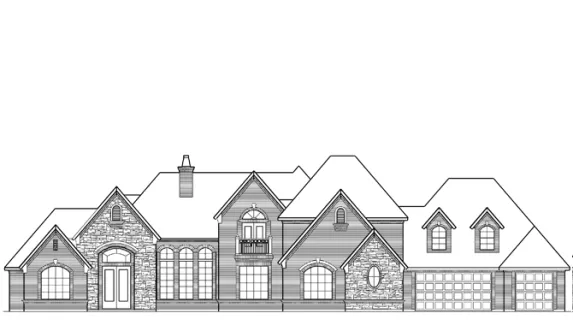

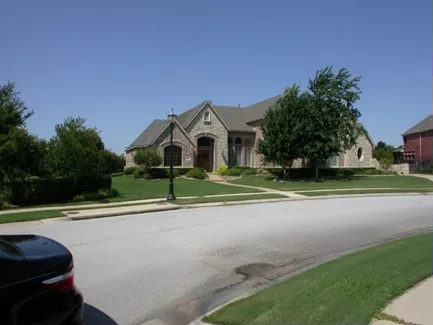

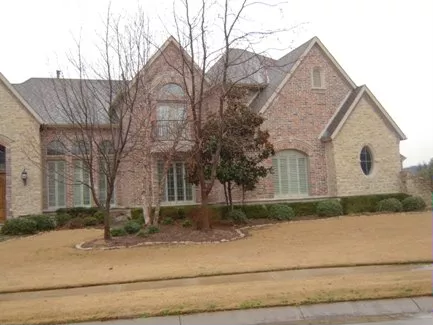

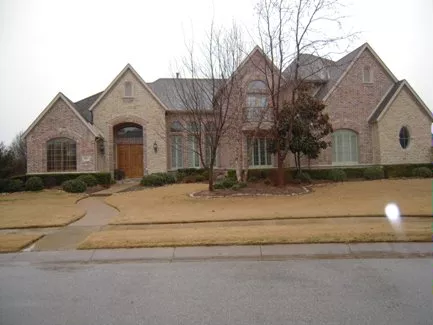

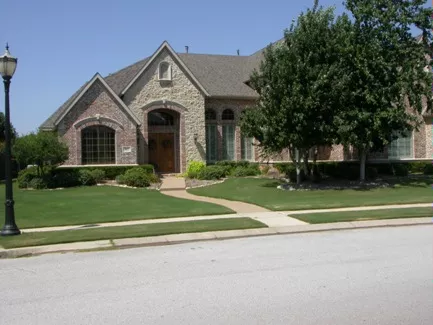

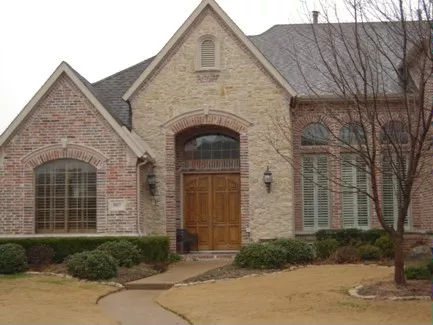

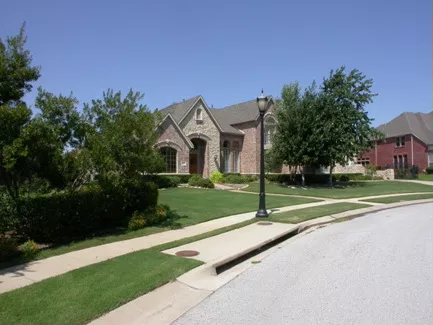

This Texas-style home plan with a six car garage with access to a small bathroom and storage space! A stone and brick facade brings just the right amount of the old world charm to this home. Enter the foyer through the French doors and the curved staircase will immediately catch your eye.  Read more >

House Plan Details

Sq. Ft.
5,405
Beds
5
Baths
6.1
Stories
2
Garages
6
Width
116' 0"
Depth
72' 0"
1st Floor
3,220
2nd Floor
2,185
Bonus
545
Garage
1,950
Select Plan Package
Plan PDF Package
$2420
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

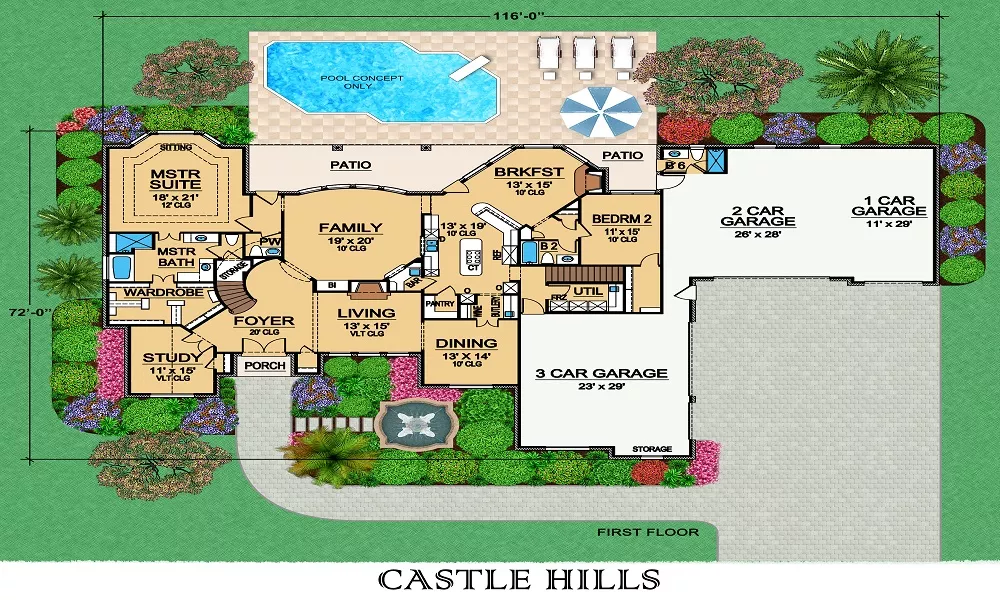

First Floor

First Floor
© copyright by designer

Plan Details

Basic Information
Bedrooms: 5
Bathrooms: 6.1
Garage: 6
Stories: 2
Exterior Style
Southern
Traditional
Dimensions
Width: 116' 0"
Height: 33' 0"
Depth: 72' 0"
Heated Living Space
Total Sq. Ft: 5,405
1st Floor: 3,220
2nd Floor: 2,185
Bonus: 545
Unheated Living Space
Garage: 1,950
Ceiling
Upper Ceiling Ft: 9
Main Ceiling Ft: 10
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Master Bdrm Main Floor
Sitting Area
Kitchen Features
Kitchen Island
Nook / Breakfast Area
Additional Room Features
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Garage Location
Side
Garage Features
Attached
Lot Features
Roof Pitch
Primary: 7
Secondary: 14

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer

Questions & Answers

Have questions about this plan?
