Sq Ft
3,189 FT²
Bed
3
Bath
3
Stories
2
Garage
2
Depth
86' 6"
Width
50' 3"
On Sale
$986.00
$1,160.00
© copyright by designer
View All 4 Images | Photographs may reflect modified home
Sq Ft
3,189 FT²
From
$986.00
Bed
3
Bath
3
Stories
2
Garage
2
Depth
86' 6"
Width
50' 3"

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

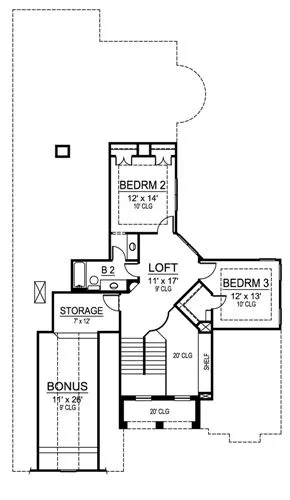

This Texas inspired luxury house plan is perfect for a narrow lot. The porch opens to a two-story foyer that is flanked by the quiet study which can be converted to a guest room with a closet and full bath. The elegant dining room has built-ins and a bank of windows for that streaming sunlight. The kitchen and breakfast area are separated only by the breakfast bar in the kitchen. A free standing center island, utility room and pantry complete this area. A beamed-ceiling family room is warmed by a fireplace and enjoys the views of the patio through a wall of large windows. The master suite has a bayed sitting area, barrel vault master bath with his and hers sinks, a separate shower and garden tub, and a large wardrobe. On the second level of this luxury house plan are two family bedrooms, a large bonus room, loft and plenty of storage.


FEATURES & DETAILS

Kitchen features
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Arches
Bonus Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Options
Attached
Front-entry
4,258 Ft
2
Total Structure
3,189 Ft
2
Total Heated
2,452 Ft
2
1st Floor
737 Ft
2
2nd Floor
3
Bedrooms
3
Bathrooms
2
Garage
2
Stories
50' 3"
Width
86' 6"
Depth
32' 0"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
Other
Framing
Stick
Roof Framing
Single
Dwelling Number

Unheated Living Space
465 Ft
2
Garage
72 Ft
2
Porch
180 Ft
2
Patio
397 Ft
2
Bonus Room


Plan Package Options

 Select Plan Package
$1,045
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,045
$1,225
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,225
$1,570
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,570
 Need To Reverse Plan? (Optional)
$150
Readable Reverse

Reverse house plans with readable text and dimensions

$150
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
