Sq Ft
5,497 FT²
Bed
4
Bath
5
Stories
2
Garage
3
Depth
107'
Width
96'
On Sale
$2,057.00
$2,420.00
© copyright by designer
View All 6 Images | Photographs may reflect modified home
Sq Ft
5,497 FT²
From
$2,057.00
Bed
4
Bath
5
Stories
2
Garage
3
Depth
107'
Width
96'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

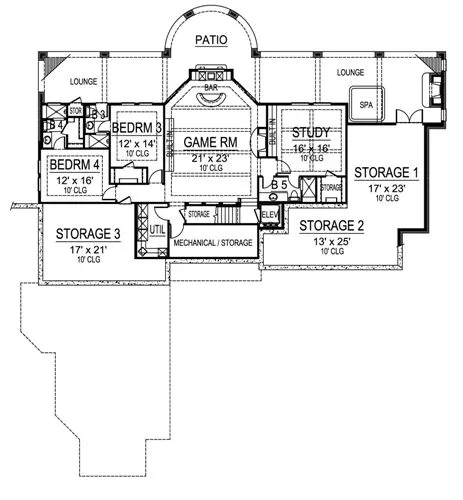

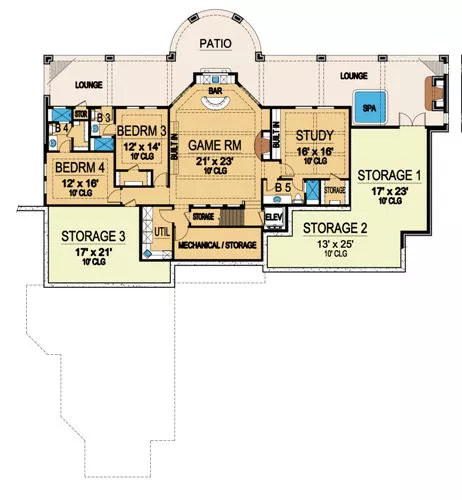

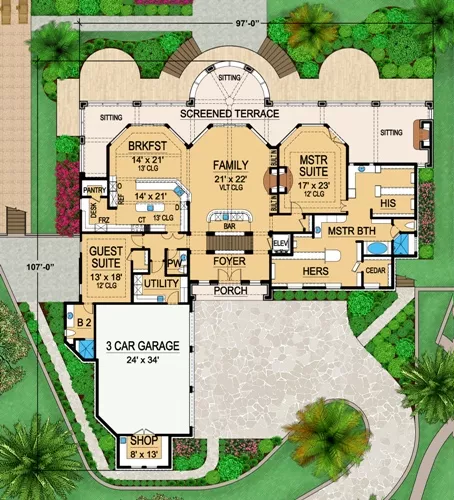

This European luxury mansion house plan is sure to make you feel right at home. As you walk into the foyer, stairs going to the lower level are directly in your view. Beyond is the bar where you can enjoy the vaulted family room with its view of the screened terrace. A two-way fireplace is shared with the master suite, which has a bay window, access to the screened terrace, tray ceiling, lavish bath with his and hers vanities, separate shower, tub and his and hers wardrobes and cedar closet. An elevator is outside the master suite. The kitchen and breakfast area share the breakfast bar. Kitchen built-ins include a pantry, desk and free-standing island for food prep. A guest suite with walk-in closet and private bath sits next to the utility room and three-car garage. The screened terrace offers sitting areas and an outdoor fireplace. Downstairs, two family bedrooms with walk-in closets and full baths share space with a game room with bar and fireplace, a study with bath, plenty of storage and an outdoor patio/lounge with spa. This completes this European luxury mansion house plan.


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Exterior features
Covered Front Porch
Covered Rear Porch
Deck
Front Porch
Rear Porch
Foundation Options
Slab
Walkout Basement
Additional features
2 Story Volume
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Loft / Balcony
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Options
Attached
Side-entry
10,341 Ft
2
Total Structure
5,497 Ft
2
Total Heated
3,423 Ft
2
1st Floor
2,074 Ft
2
Lower Floor
4
Bedrooms
5
Bathrooms
3
Garage
2
Stories
96' 0"
Width
107' 0"
Depth
47' 0"
Height
12' 0"
Main Floor Ceiling
10' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
Single
Dwelling Number

Unheated Living Space
888 Ft
2
Garage
1,483 Ft
2
Storage
82 Ft
2
Porch
1,246 Ft
2
Deck
1,166 Ft
2
Patio


Plan Package Options

 Select Plan Package
$2,180
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,180
$2,360
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,360
$3,270
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,270
 Need To Reverse Plan? (Optional)
$200
Readable Reverse

Reverse house plans with readable text and dimensions

$200
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
