Sq Ft
2,146 FT²
Bed
3
Bath
3
Stories
2
Garage
2
Depth
42'
Width
40'
On Sale
$1,393.15
$1,639.00
© copyright by designer

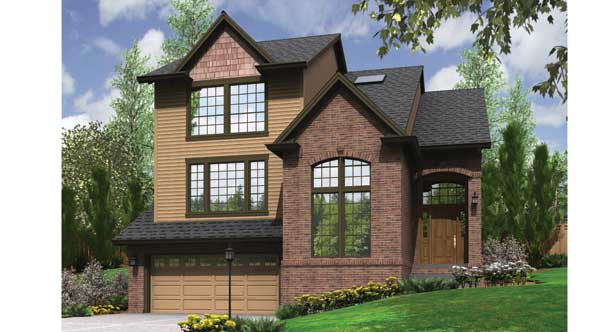

View All 2 Images | Photographs may reflect modified home
Sq Ft
2,146 FT²
From
$1,393.15
Bed
3
Bath
3
Stories
2
Garage
2
Depth
42'
Width
40'

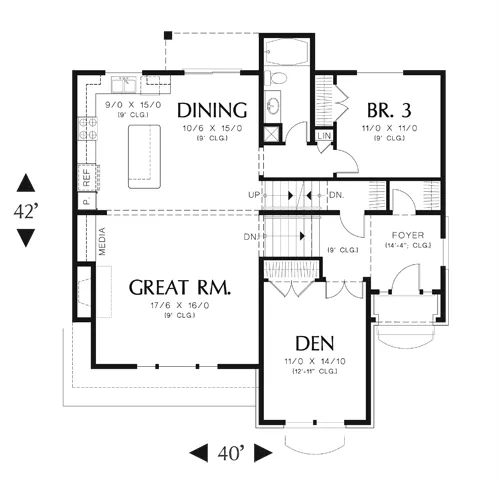

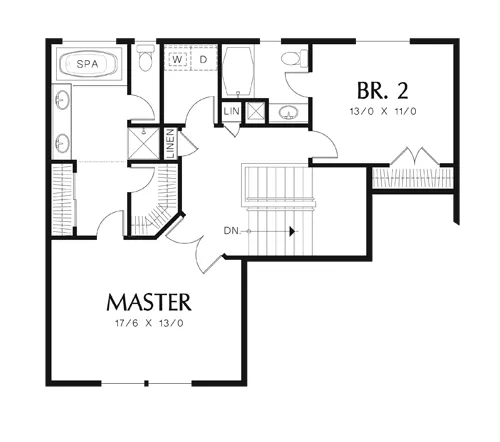

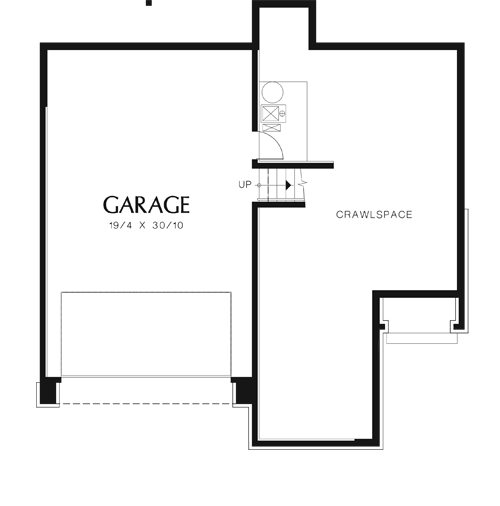

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

Standing as tall and upright as a historic row house, this narrow design fits the bill for a small city in-fill lot thats located on a hillside. With the garage tucked under the living levels, the home is just 40 feet wide and only 42 feet deepideal for a compact lot. Rising up from the curbside, the front door opens to a roomy foyer with a coat closet. A landing beyond provides access to a den behind double doors, or to a staircase that leads into the main living spaces. The kitchen, great room, and dining room form one open space. An island defines the kitchen area and provides snack bar seating for family and guests. Light and outdoor views fill the dining space through an adjacent set of patio doors. The great-room includes a built-in media center and a triple window. A bedroom and a full bath also are on the same level. A U-shape staircase leads to a third level that houses two additional bedrooms and the laundry room. Angled double doors open to the master suite, which provides two closets, a dual-sink vanity, and separate tub and shower. The laundry room and two linen closets help stave off clutter.



FEATURES & DETAILS

Kitchen features
Country Kitchen
Kitchen Island
Bedroom features
Double Vanity Sink
Guest Suite
His and Hers Master Closets
Master Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet
Exterior features
Covered Rear Porch
Rear Porch
Foundation Options
Basement
Crawlspace
Daylight Basement
Slab
Walkout Basement
Lot Options
Suited for narrow lot
Suited for sloping lot
Additional features
Fireplace
Foyer
Great Room
Home Office
In-law Suite
Laundry 2nd Fl
Open Floor Plan
Vaulted Ceilings
Garage Location
Under
Garage Options
Attached
Oversized
2,146 Ft
2
Total Heated
1,302 Ft
2
1st Floor
844 Ft
2
2nd Floor
3
Bedrooms
3
Bathrooms
2
Garage
2
Stories
40' 0"
Width
42' 0"
Depth
28' 2"
Height
9' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
2x6
Framing
Truss
Roof Framing
7/12
Primary Roof Pitch
12/12
Gable Roof Pitch
Single
Dwelling Number
None
Bonus Access

Unheated Living Space
627 Ft
2
Garage


Plan Package Options

 Select Plan Package
$1,639
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,639
$1,839
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,839
$1,889
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,889
$3,278
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,278
 Need To Reverse Plan? (Optional)
$225
Readable Reverse

Reverse house plans with readable text and dimensions

$225
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
