Sq Ft
2,891 FT²

Beds
2

Baths
2

Stories
2

Garage
2

Depth
55'

Width
70' 2"

From
$2,900.00

Front Rendering

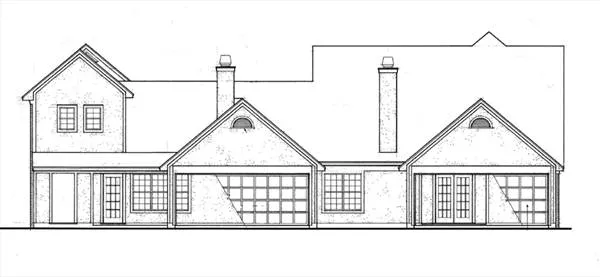

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

2,891 FT²

From

$2,900.00

Beds

Baths

Stories

Garage

Depth

55'

Width

70' 2"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

First Floor Plan

Unit A

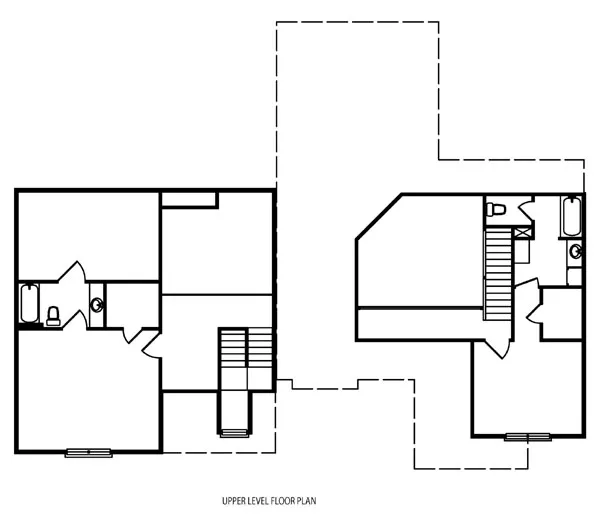

Second Floor Plan

Unit C

About This Plan

Unit A contains 1489 sq. ft. of living area. Unit C contains 1402 sq. ft. of living area. The building contains a total of 3907 sq. ft which includes heated and un-heated area. Each unit has 2 bed rooms. The ceiling of the living area in all units slopes to the upper level ceilings. An upper level balcony allows a view from the upper level to the living room below.

NOTE: APARTMENT PLANS DO NOT COME WITH A PRE-DRAWN FOUNDATION PLAN. A CUSTOM DRAWN FOUNDATION PLAN IS INCLUDED AT NO ADDITIONAL CHARGE. THE FOUNDATION PLAN WILL BE DRAWN ACCORDING TO THE SPECIFICATIONS PROVIDED BY THE PLAN PURCHASER. A CUSTOM DRAWN SITE PLAN IS ALSO INCLUDED. SOME LIMITATIONS APPLY.

FEATURES & DETAILS

Foundation Options

Slab

Garage Location

Rear

Garage Options

Attached

3,907 Ft

Total Structure

2,891 Ft

Unit Heated

1,966 Ft

1st Floor

925 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

Stories

70' 2"

Width

55' 0"

Depth

34' 0"

Height

8' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

10/12

Primary Roof Pitch

Multi-Family

Dwelling Number

Unheated Living Space

866 Ft

Garage

81 Ft

Storage

69 Ft

Porch

Exterior Styles

Traditional

Plan Package Options

Important info before you buy

Select Plan Package

$2,200

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$2,200

$2,900

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,900

$3,400

4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

$3,400

$3,600

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,600

$3,700

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$3,700

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$3,700

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
