Front Rendering

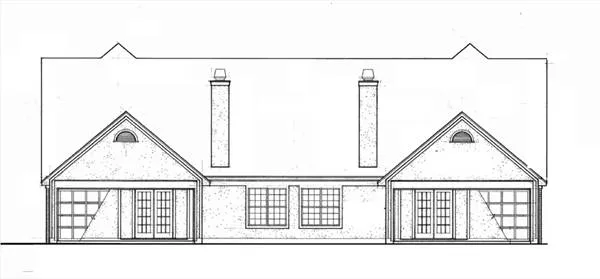

Rear Elevation

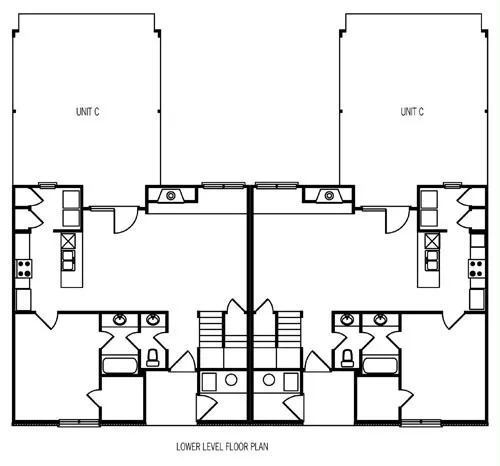

First Floor Plan

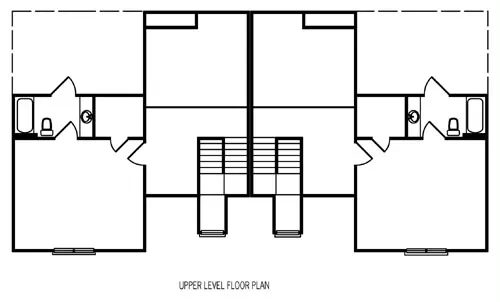

Second Floor Plan

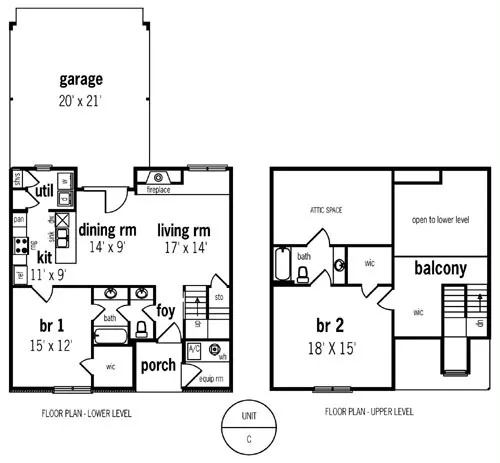

Unit C
House Plan 6860: Briarfield - 6289-3
Each unit has 1402 sq. ft. of living area. The building contains 3892 sq. ft. including heated and un-heated area.
Multi-family 2 unit apartment building
2 Bedroom, 2 bath (each unit)
Living room with Fireplace
Upper level balcony overlooks living room below
Large bed rooms with walk-in closets
Utility room
2 car carport in rear
Exterior equipment room
Read more >
House Plan Details
Total
Sq. Ft.
Sq. Ft.
3,892
Per Unit
Sq. Ft.
Sq. Ft.
1,402
Beds
2
Baths
2.5
Stories
2
Garages
0
Width
64' 2"
Depth
53' 0"
PLAN IMAGES
First Floor Plan
© copyright by designer
DETAILS
Total Structure SQ. FT.:
3,892
Unit Total SQ. FT.:
1,402
1st Floor SQ. FT.:
1,402
Bedrooms:
2
Bathrooms:
2.5
Garage:
0
Stories:
2
Main Ceiling Height:
8'
Upper Ceiling Height:
8'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 10/12
Width:
64' 2"
Depth:
53' 0"
Height:
30' 0"
Exterior Styles:
European
Modern
Traditional
Modern
Traditional
Unheated Living Space:
Garage: 892
Storage: 98
Porch: 98
Storage: 98
Porch: 98
HOME FEATURES
Bedroom Features:
Kitchen Features:
Additional Features:
Garage Features:
Garage Location:
Lot Features:
