Search Plans


Sq Ft
870 FT²

Beds
1

Baths
1

Stories
2

Garage
3

Depth
42'

Width
40'
On Sale
$836.00
$1,045.00
EXCLUSIVE PLAN
© copyright by designer
View All 2 Images | Photographs may reflect modified home
Sq Ft
870 FT²
From
$836.00
Beds
1
Baths
1
Stories
2
Garage
3
Depth
42'
Width
40'

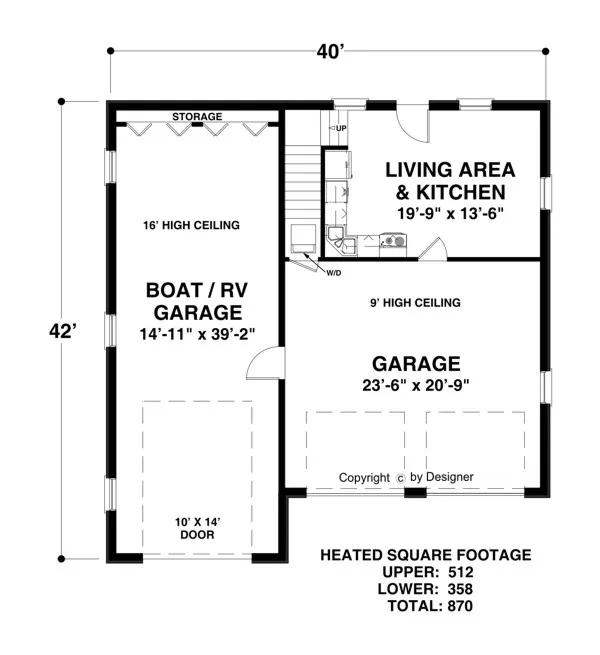

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

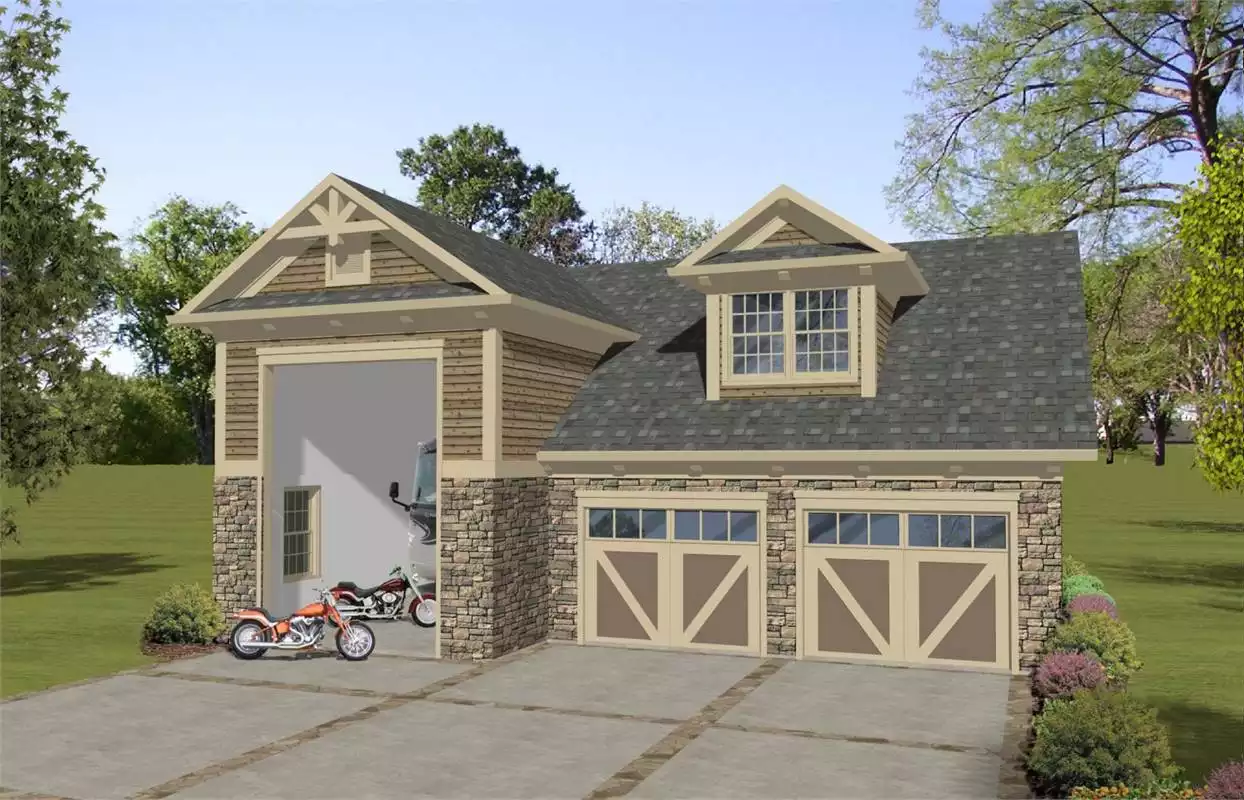

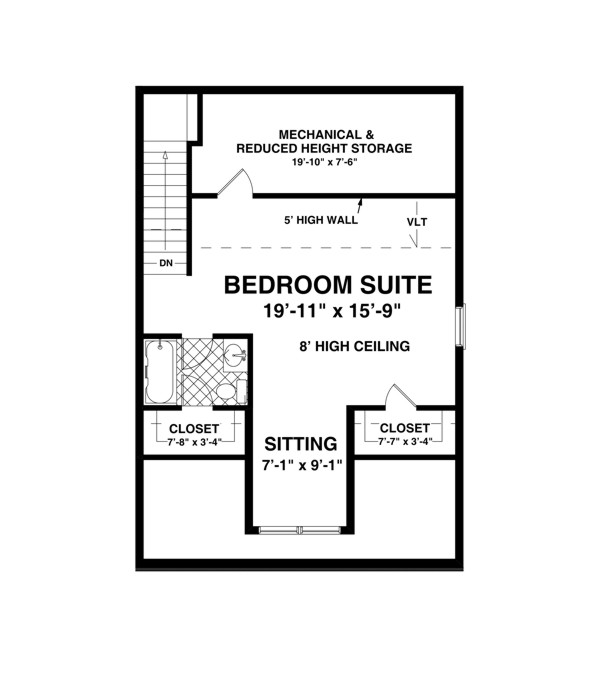

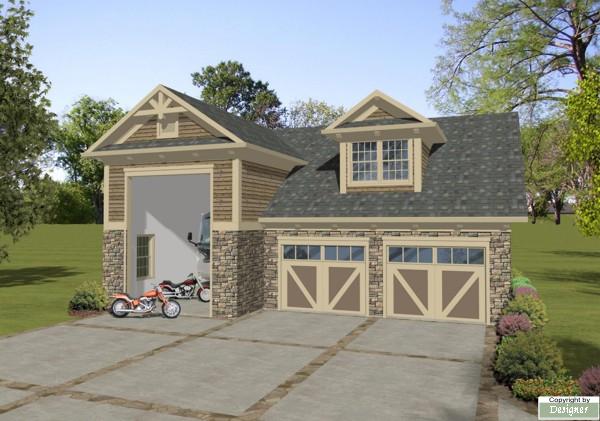

This wonderful, 870 square foot Craftsman style plan is your best choice for a vacation home providing everything you could possibly need.  Featuring a 2-car garage for your cars or large toys, it also includes an RV garage with a 14' overhead door and 16' ceilings to allow the largest Class A RV to fit.  This beautiful plan boasts a large all-in-one Living area and kitchen.  A washer/dryer is tucked away under the stairs making doing the laundry convenient.  There is a large bedroom suite with sitting area and spacious bathroom perfect for your vacation needs.  Two walk-in closets brings storage for two.   This garage plan has everything you may need for comfort and would be a wonderful home away from home destination at the end of your travels.


FEATURES & DETAILS

Foundation Options
Slab
Garage Location
Front
Garage Options
Detached
Front-entry
Oversized
With Living Space
870 Ft
2
Total Heated
358 Ft
2
1st Floor
512 Ft
2
2nd Floor
1
Bedrooms
1
Bathrooms
3
Garage
2
Stories
40' 0"
Width
42' 0"
Depth
22' 11"
Height
9' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
8/12
Primary Roof Pitch
Garage
Dwelling Number

Unheated Living Space


Plan Package Options

 Select Plan Package
Sale: $596
PDF Bid Set
$745

PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

Sale: $596
Sale: $836
PDF Single Build
$1,045

PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $836
Sale: $836
5 Printed Sets
$1,045

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $836
Sale: $956
8 Printed Sets
$1,195

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

Sale: $956
Sale: $1,196
CAD Single Build
$1,495

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $1,196
 Need To Reverse Plan? (Optional)
$295
Readable Reverse

Reverse house plans with readable text and dimensions

$295
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
