Sq Ft
2,994 FT²

Beds
4

Baths
3.5

Stories
2

Garage
2

Depth
74'

Width
38'

From
$1,325.00

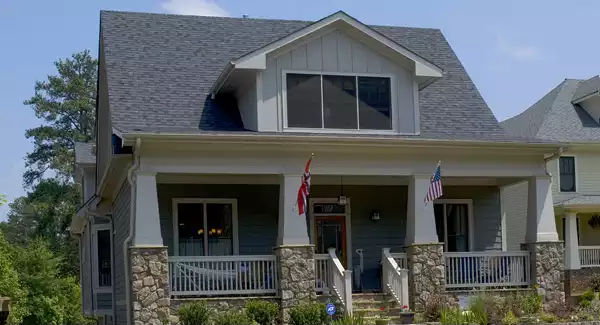

Front Photo

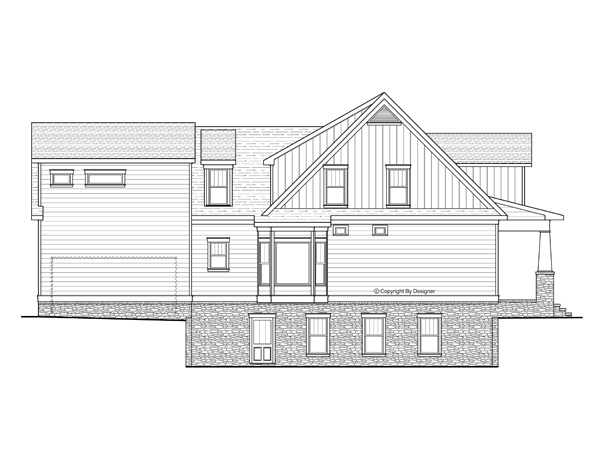

Left Elevation

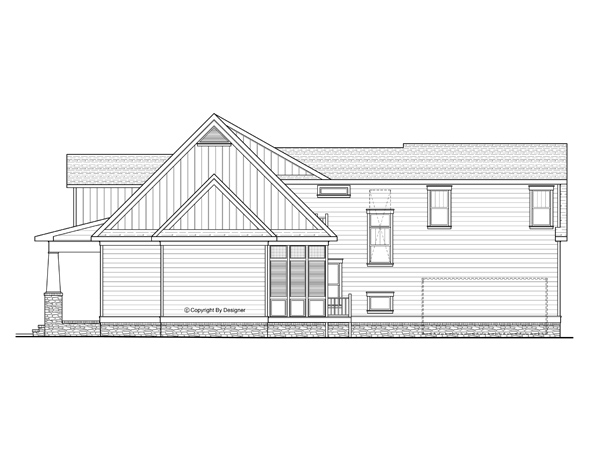

Right Elevation

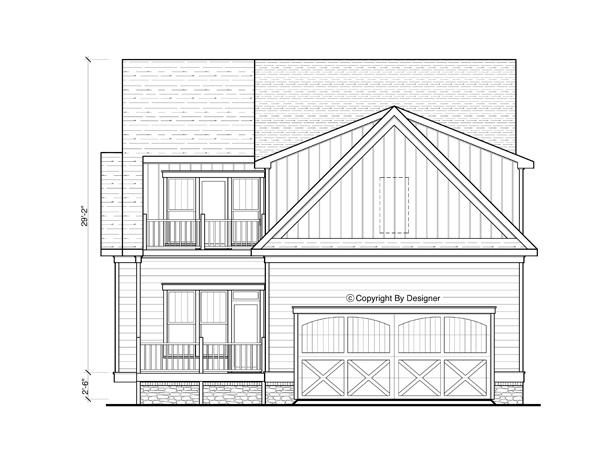

Rear Elevation

Rendering

View All 5 Images | Photographs may reflect modified home

Sq Ft

2,994 FT²

From

$1,325.00

Beds

Baths

3.5

Stories

Garage

Depth

74'

Width

38'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

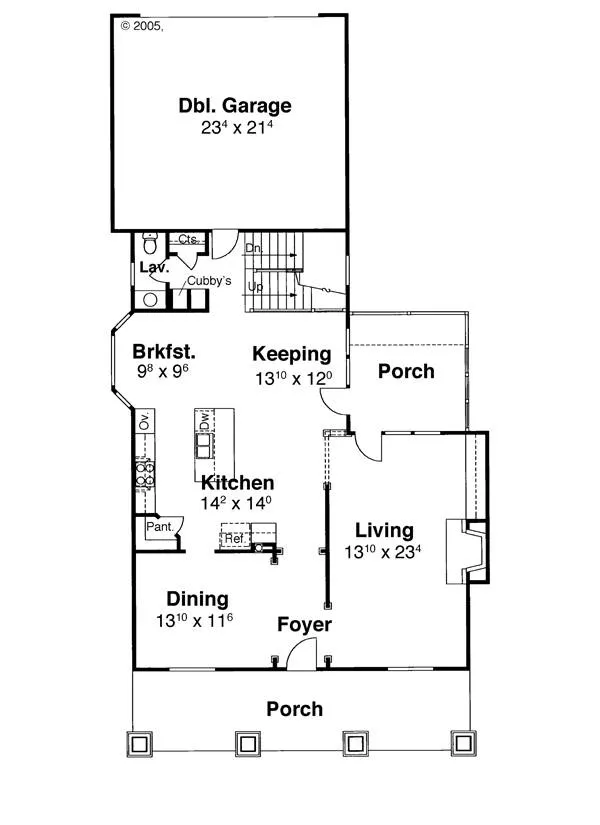

First Floor

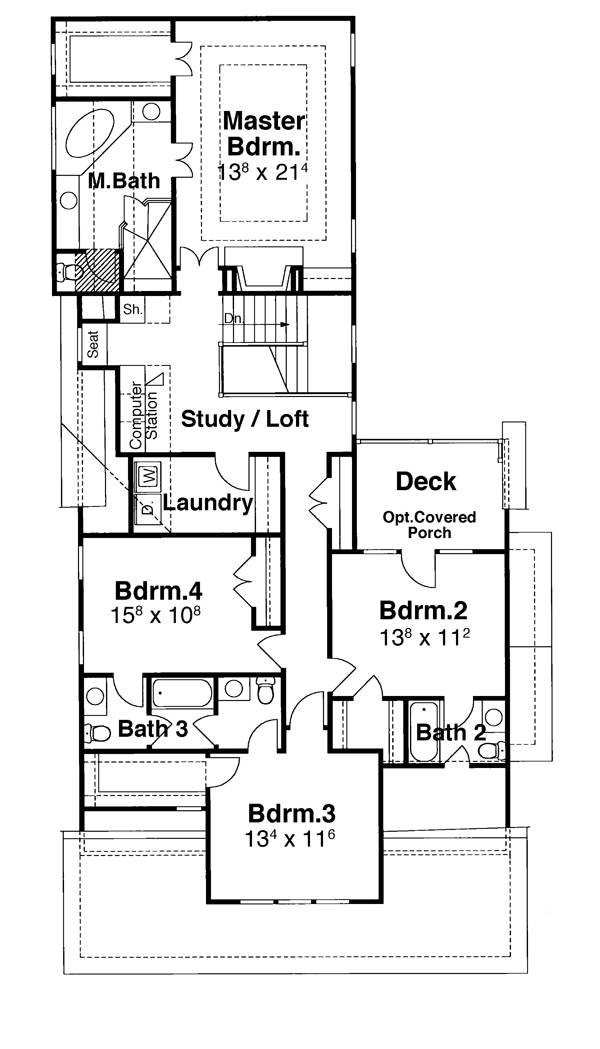

Second Floor

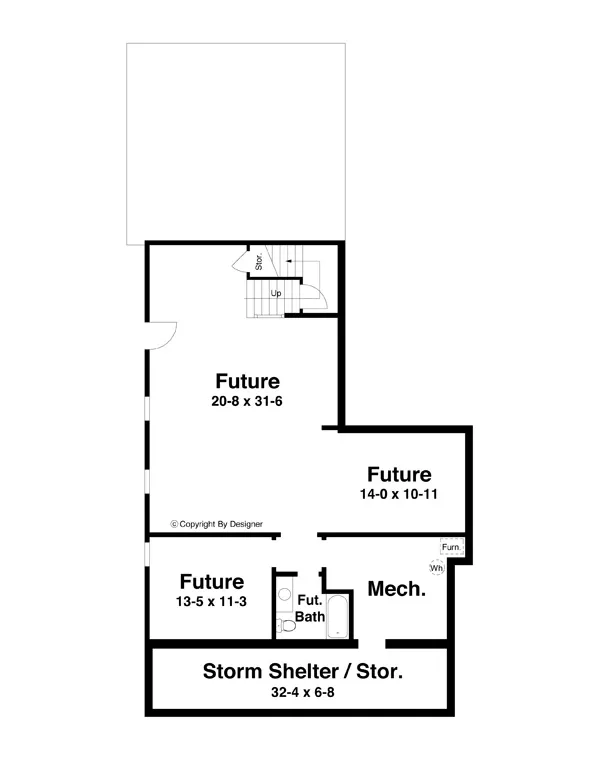

Lower Level

First Floor

Second Floor

Lower Level

About This Plan

Craftsman style features make this a dream home. Almost 3,000 square feet of finished space gives you plenty of space in a small street profile. Enjoy the best of both worlds in this charming bungalow. Narrow in design while featuring all the spaciousness and amenities of a more contemporary design.

This floor plan features a split bedroom layout within a two-story design. A feature usually thought of as only being in a ranch or split-foyer design. The rear staircase and study/loft area act as the perfect buffer between the master suite and the children's wing of the second floor.

FEATURES & DETAILS

Kitchen features

Country Kitchen
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Deck
Front Porch
Rear Porch

Foundation Options

Basement
Walkout Basement

Lot Options

Suited for narrow lot
Suited for view lot

Additional features

Dining Room
Family Room
Fireplace
Foyer
Great Room
Home Office
Laundry 2nd Fl
Loft / Balcony
Open Floor Plan
Vaulted Ceilings

Garage Location

Rear

Garage Options

Attached
Rear-entry
With Living Space

2,994 Ft

Total Heated

1,310 Ft

1st Floor

1,684 Ft

2nd Floor

1,310 Ft

Lower Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

38' 0"

Width

74' 0"

Depth

29' 1"

Height

10' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

4/12

Dormer Roof Pitch

4/12

Porch Roof Pitch

Single

Dwelling Number

Unheated Living Space

528 Ft

Garage

380 Ft

Porch

120 Ft

Deck

Exterior Styles

Bungalow

Cottage

Craftsman

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$850

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$850

$1,325

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,325

$1,450

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,450

$1,988

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,988

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
