Sq Ft
2,837 FT²

Beds
4

Baths
2.5

Stories
1

Garage
3

Depth
51'

Width
96'

From
$1,869.00

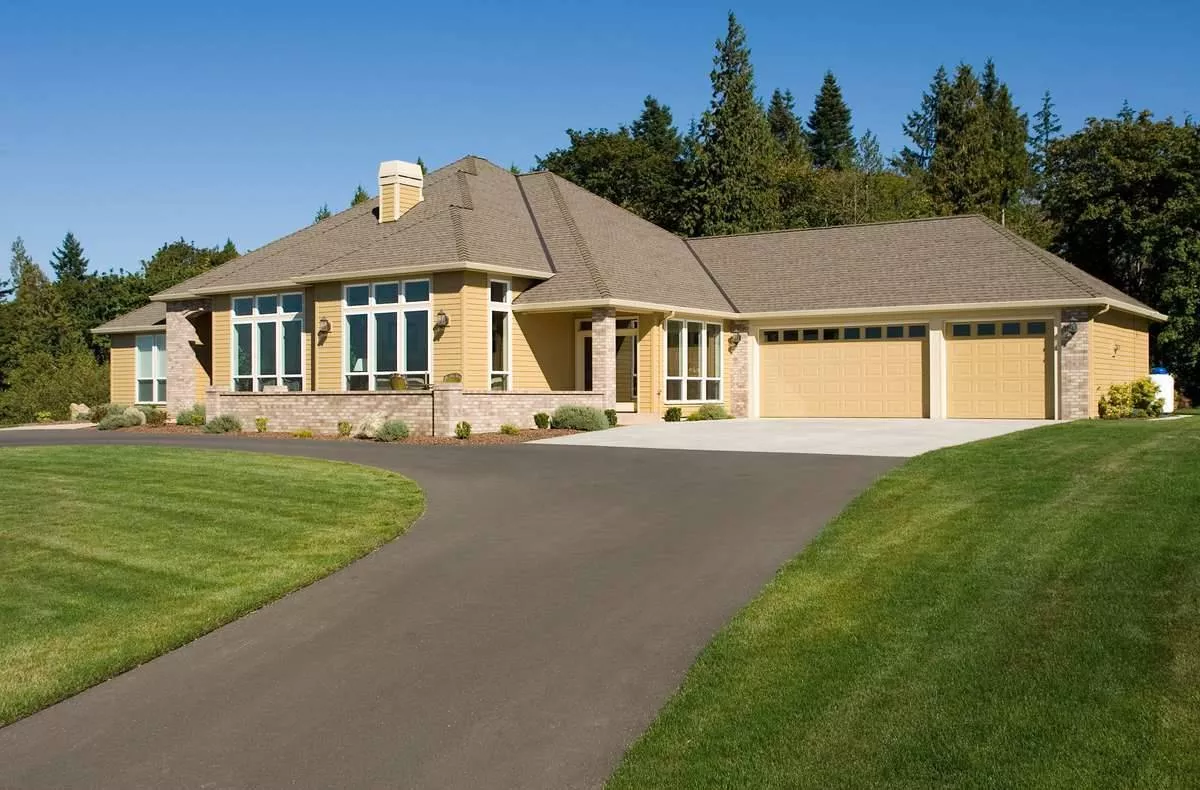

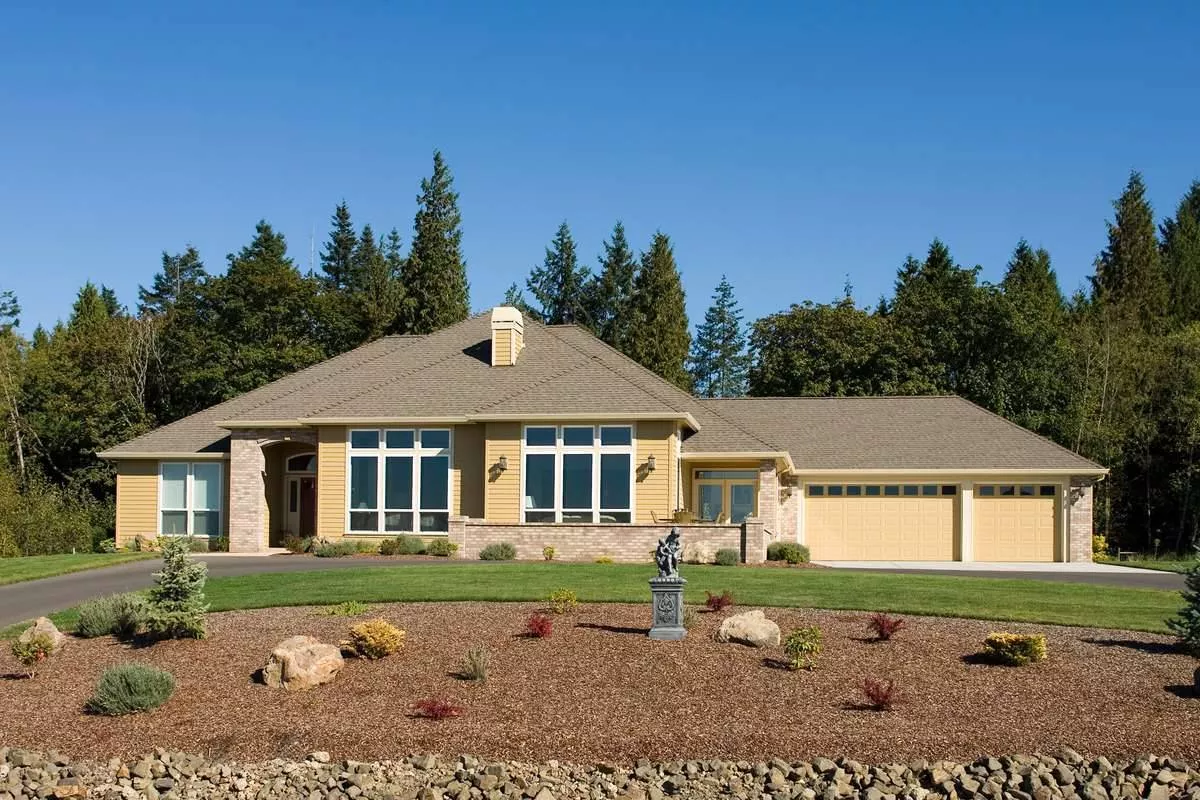

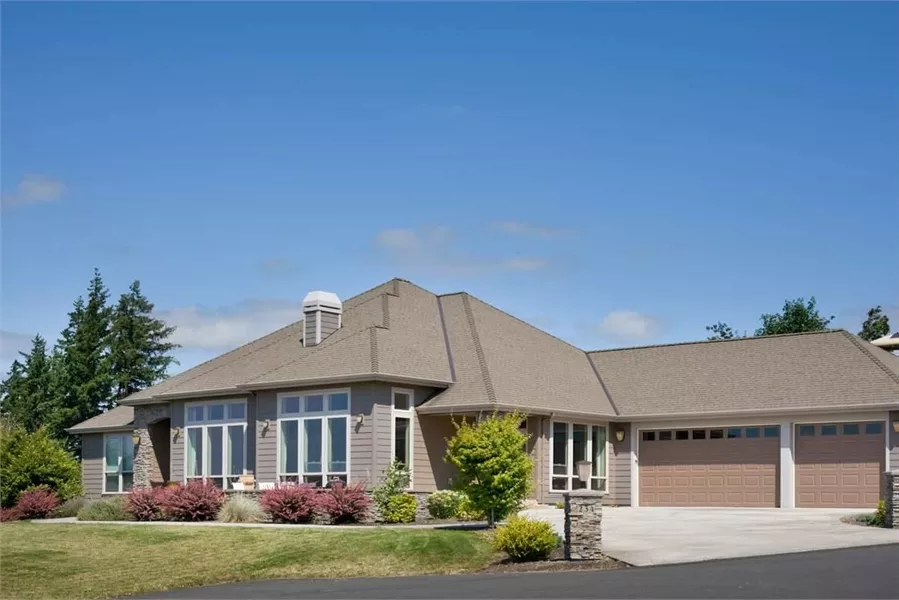

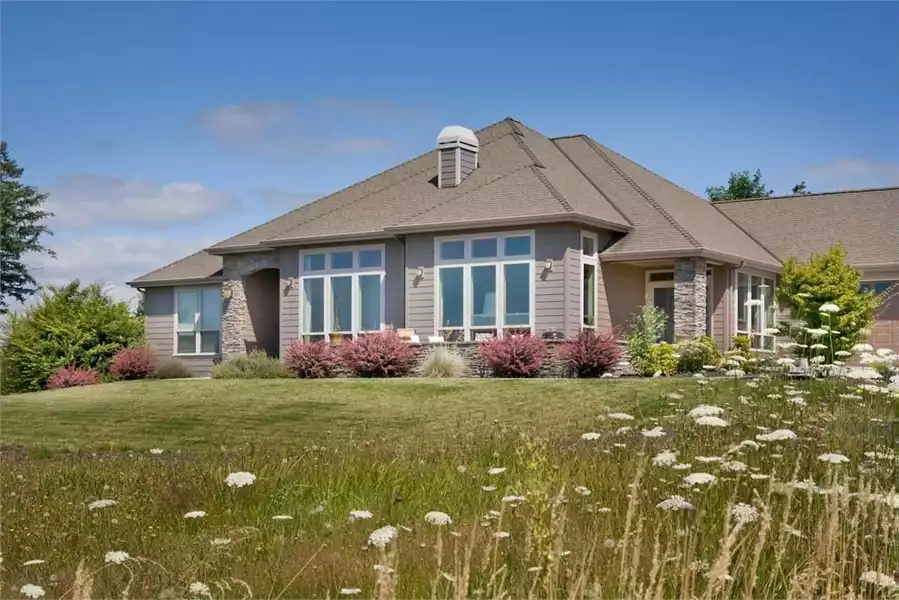

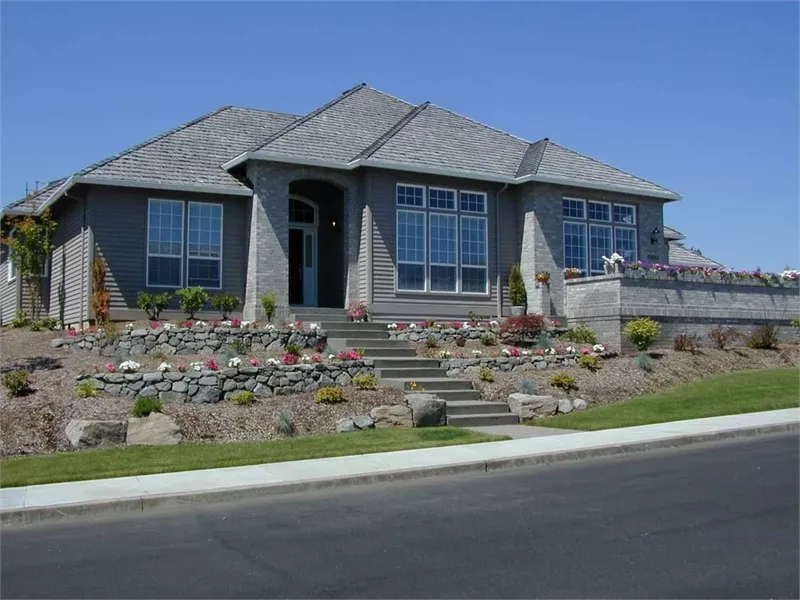

Front Exterior

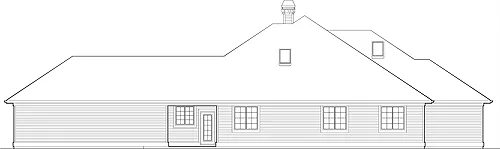

Rear Elevation

View All 9 Images | Photographs may reflect modified home

Sq Ft

2,837 FT²

From

$1,869.00

Beds

Baths

2.5

Stories

Garage

Depth

51'

Width

96'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

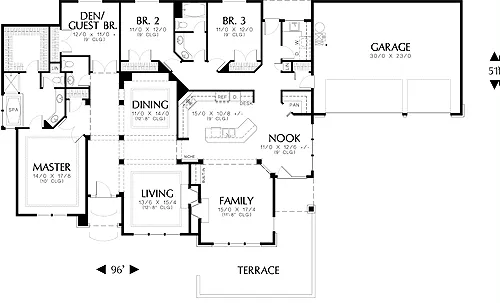

First Floor Plan

About This Plan

Speaking volumes of graciousness, this design makes its mark with multi-paned windows with transoms, a high chimney stack and a varied roofline. The floor plan is nothing if not commodious and puts all of its living spaces right up front. Formal living and dining rooms open through decorative columns directly from the entry hall. The living room has a fireplace and the dining room contains space for a hutch. Both spaces have tray ceilings. The family room shares a large open area with the island kitchen and the breakfast nook. It also has a fireplace and a built-in space for an entertainment center. A walk-in pantry offers abundant storage for the kitchen. Family and guest bedrooms line the back of the plan, leaving the master suite to occupy the entire left wing. A spa tub and walk-in closet make the master bath extra special. A three-car garage holds all the family vehicles.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
Guest Suite
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

No Porch

Foundation Options

Basement
Crawlspace
Slab

Additional features

Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings

Garage Location

Side

Garage Options

Attached
Front-entry

2,837 Ft

Total Heated

Bedrooms

2.5

Bathrooms

Garage

Stories

96' 0"

Width

51' 0"

Depth

26' 0"

Height

varies' 0"

Main Floor Ceiling

2x6

Framing

Stick

Roof Framing

8/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

690 Ft

Garage

321 Ft

Patio

Exterior Styles

Contemporary

Modern

Ranch

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,869

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,869

$2,069

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,069

$2,119

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,119

$3,738

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,738

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
