Sq Ft
4,334 FT²

Beds
4

Baths
3.5

Stories
2

Garage
2

Depth
58' 2"

Width
76' 10"

From
$1,600.00

EXCLUSIVE PHOTOS

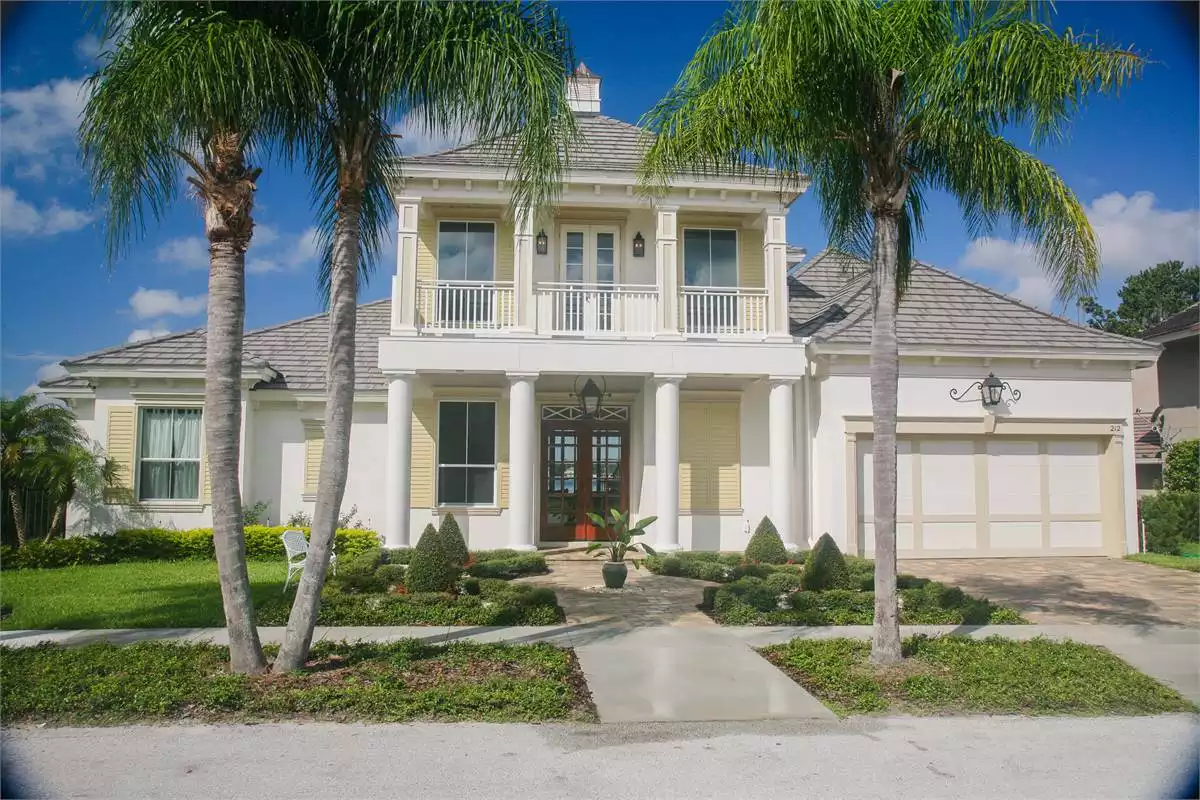

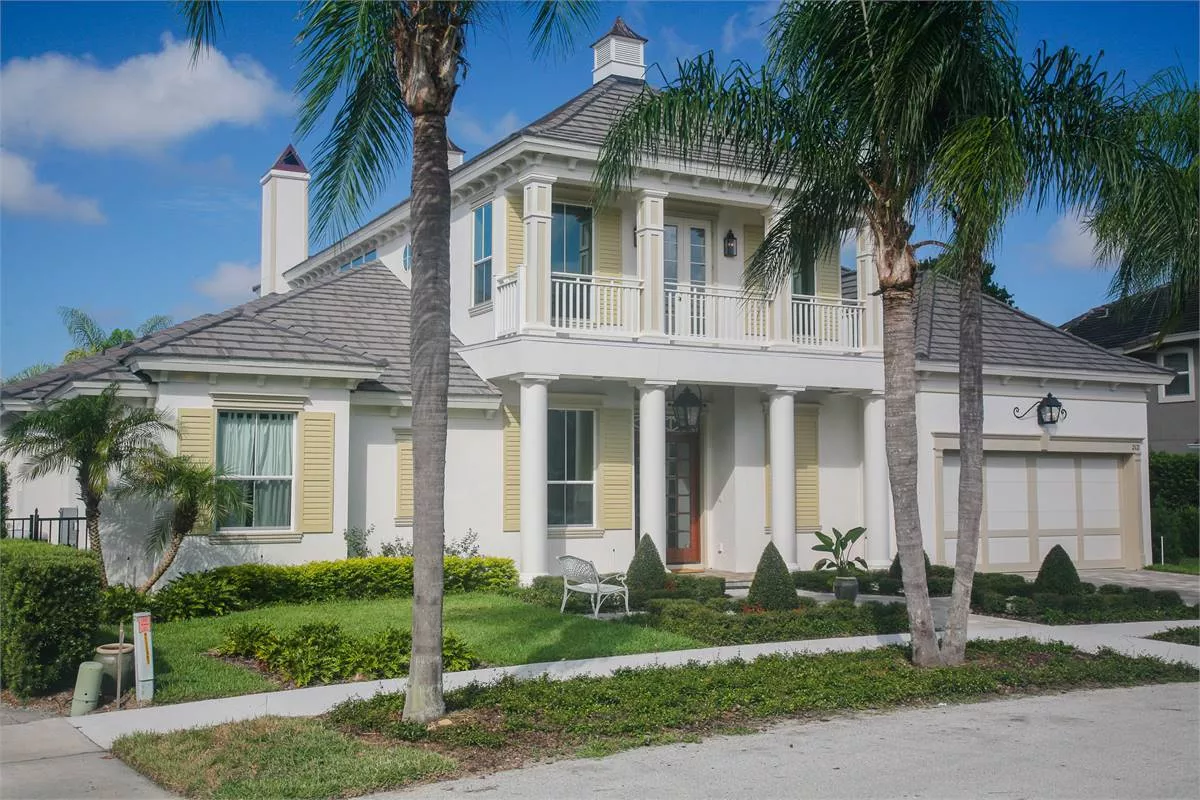

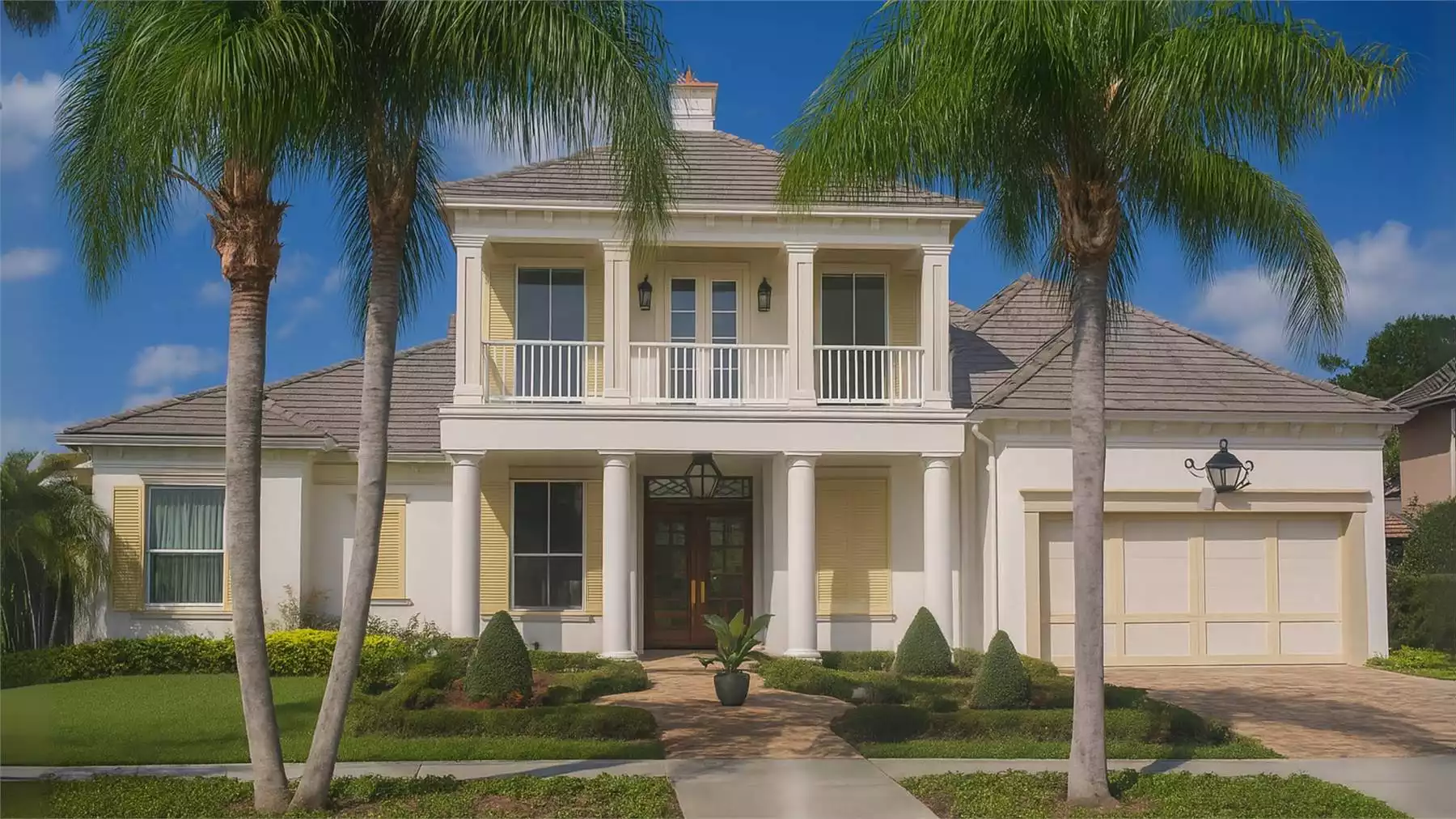

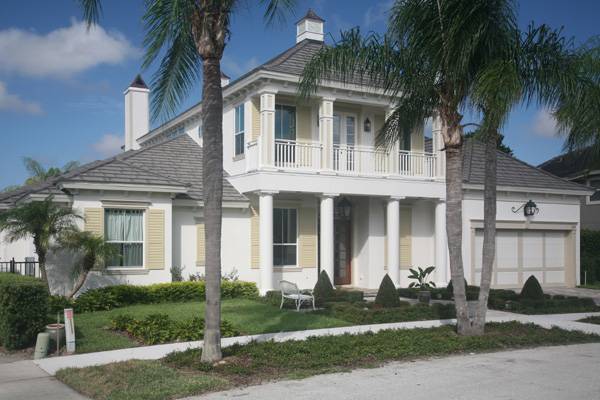

Front View

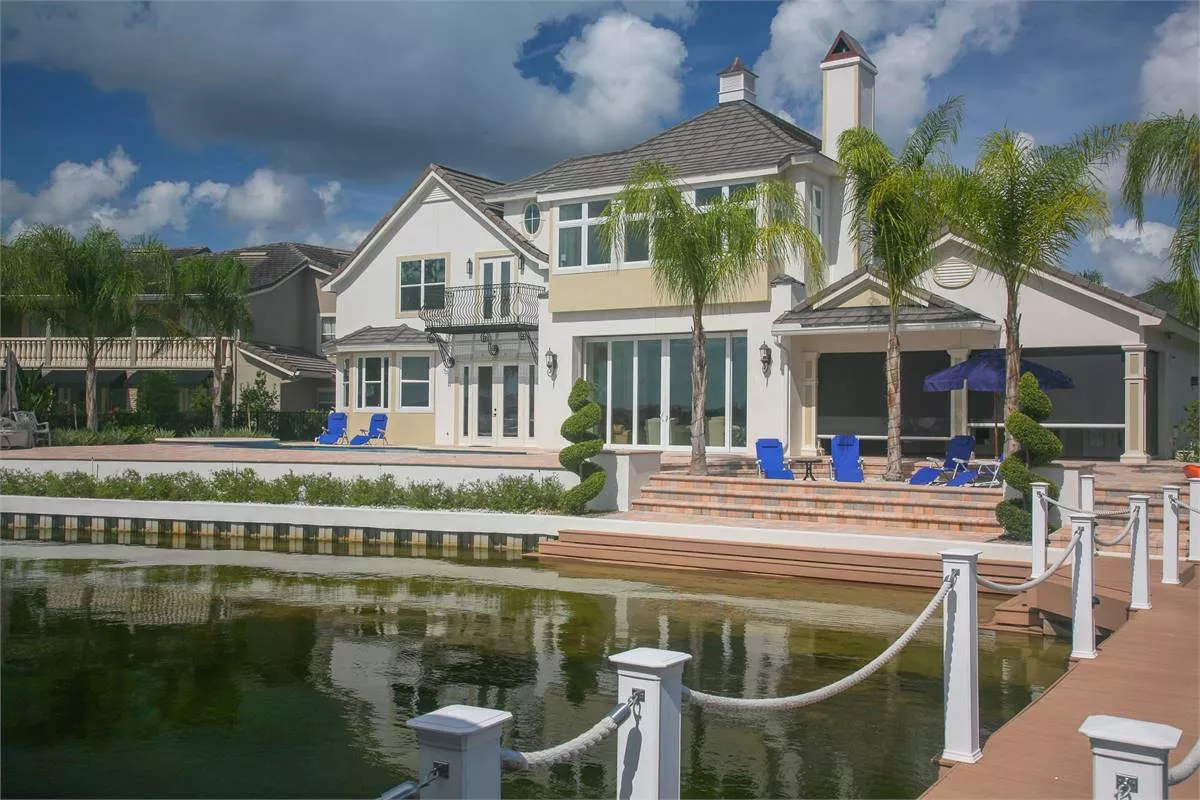

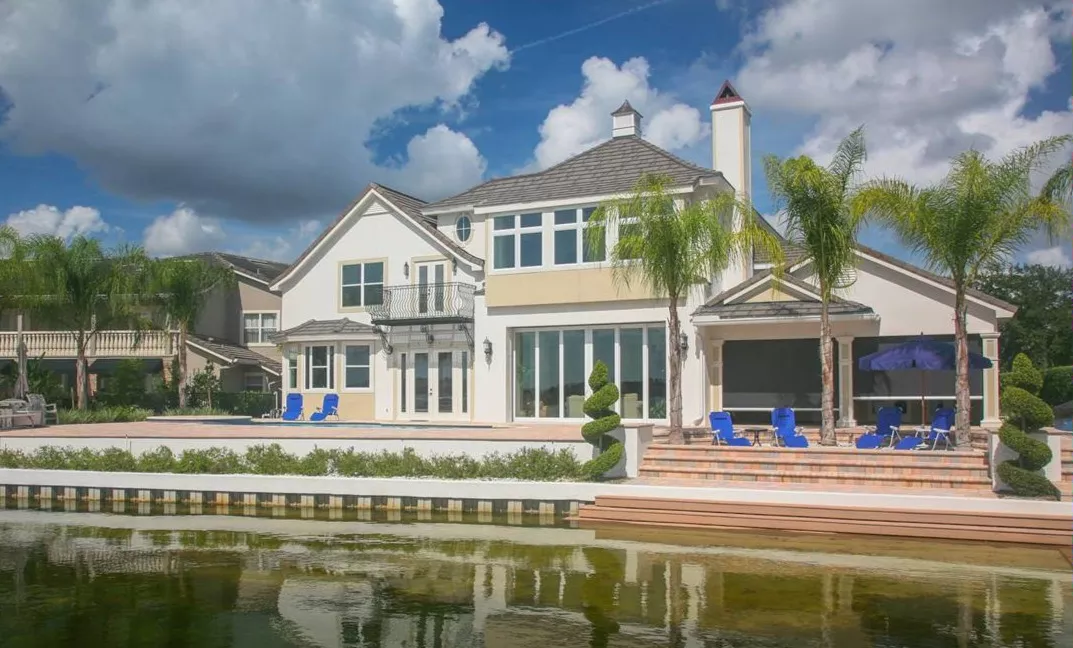

Rear View

Entry

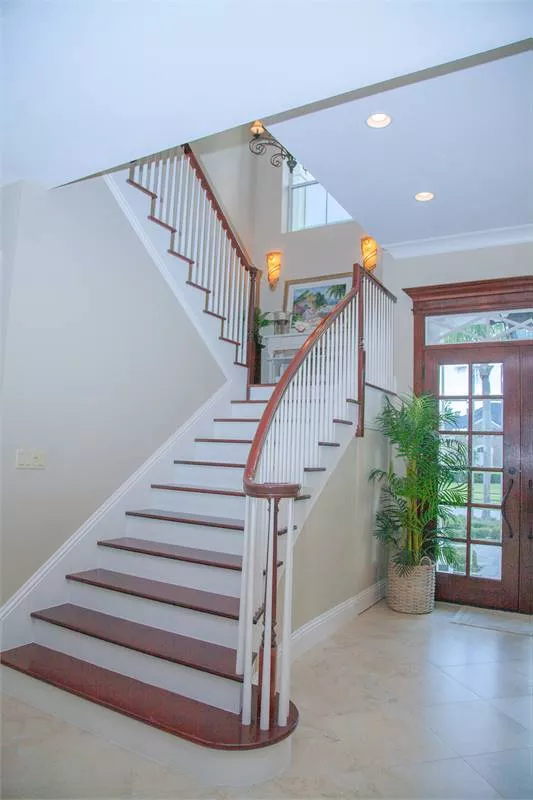

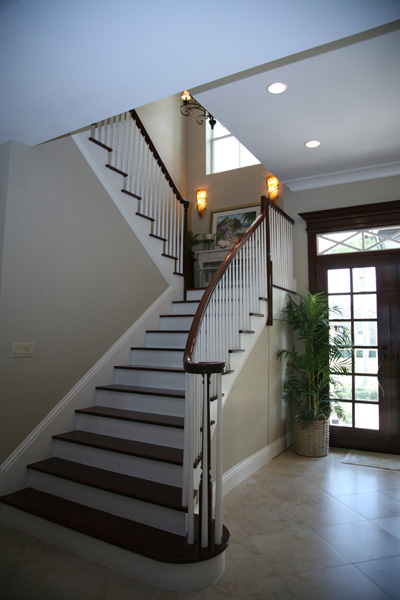

Foyer

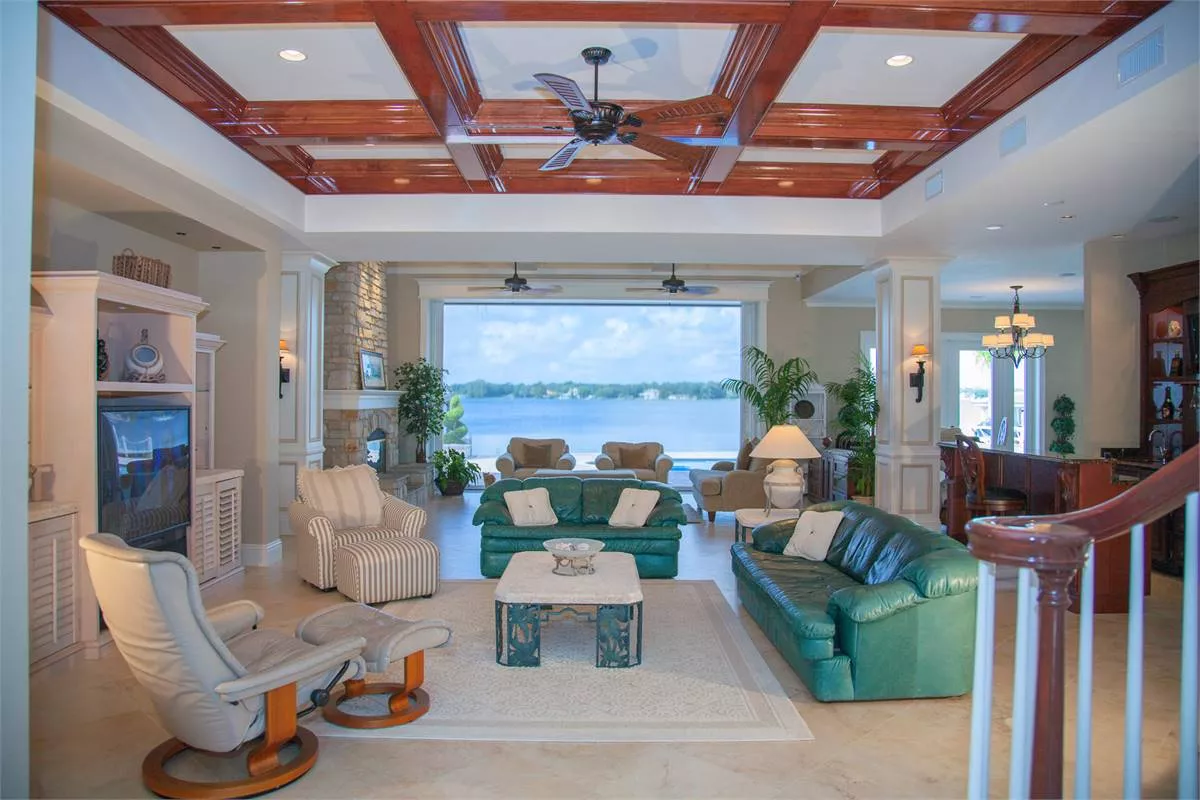

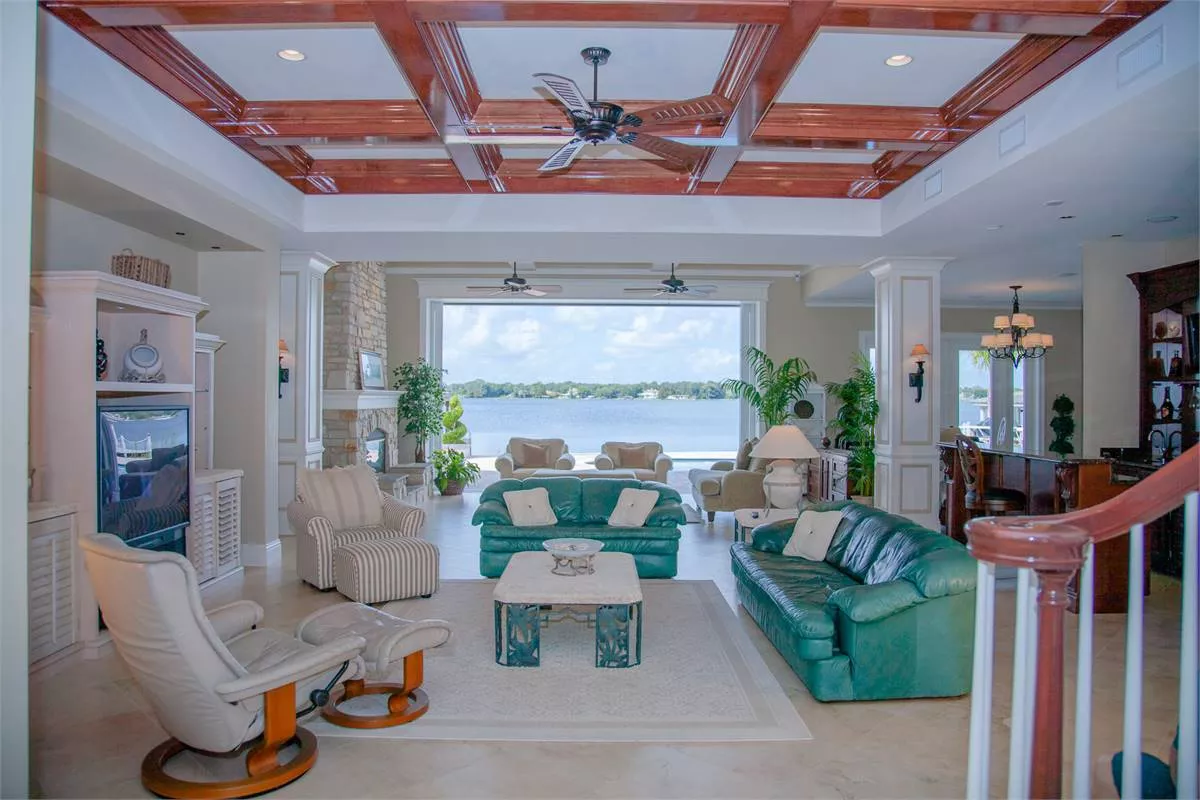

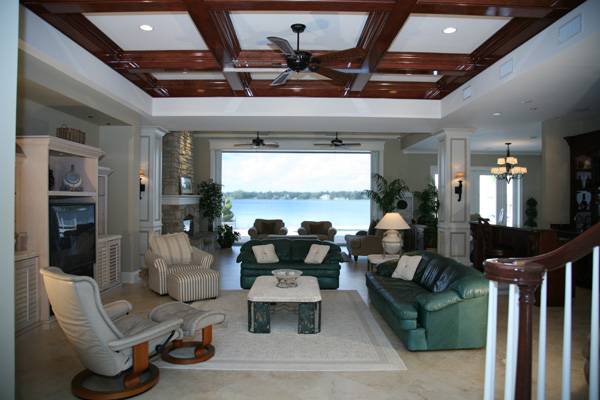

Great Room

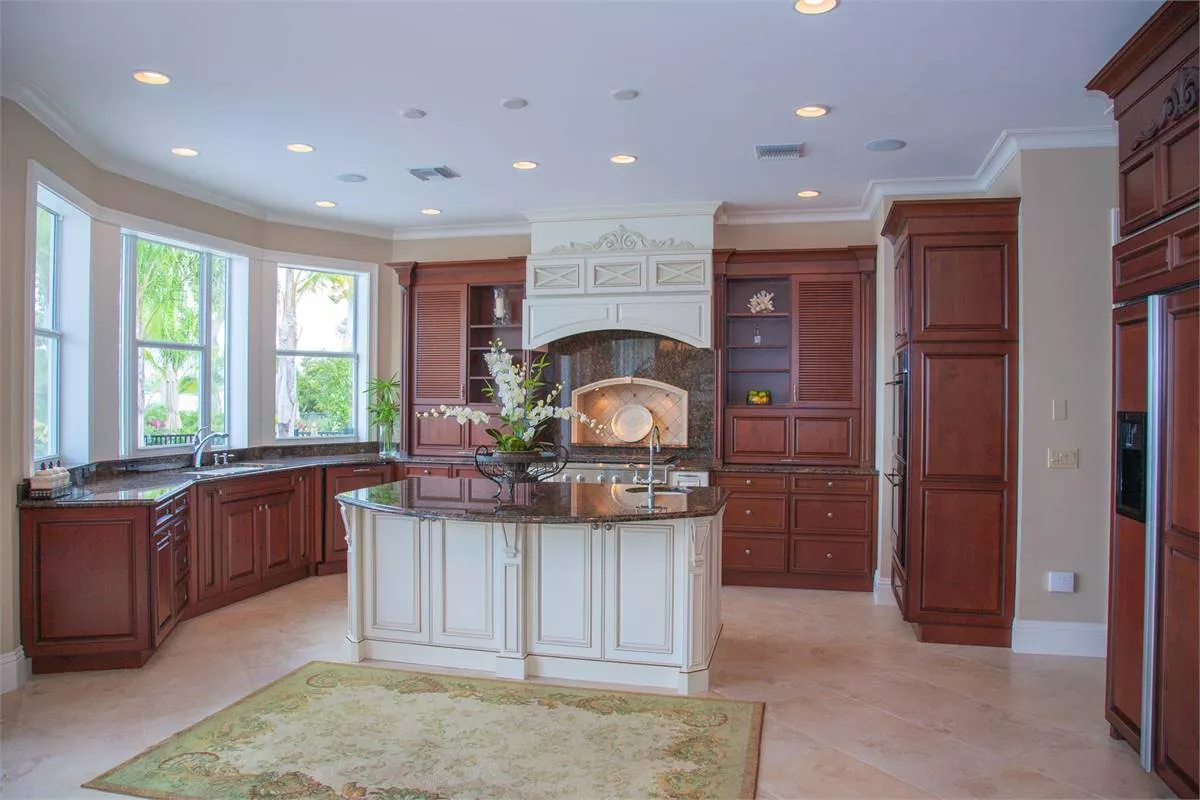

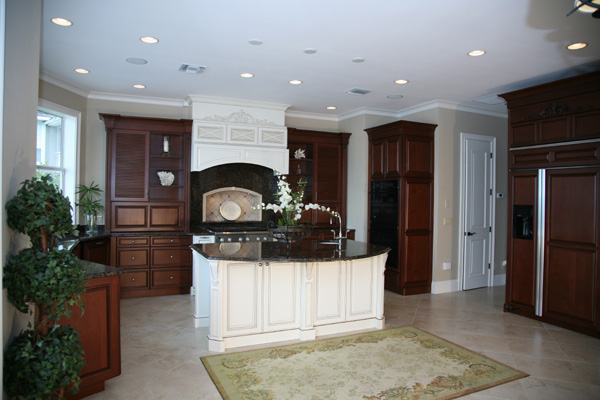

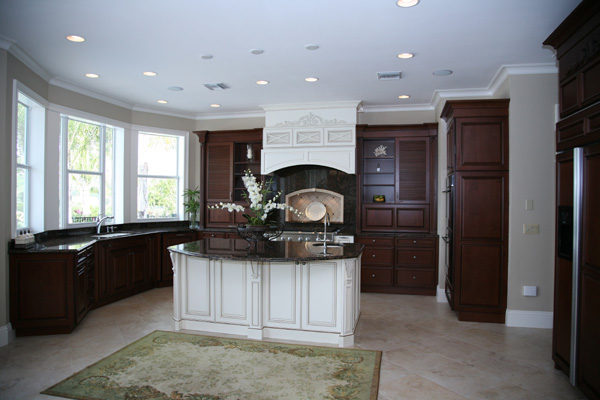

Kitchen

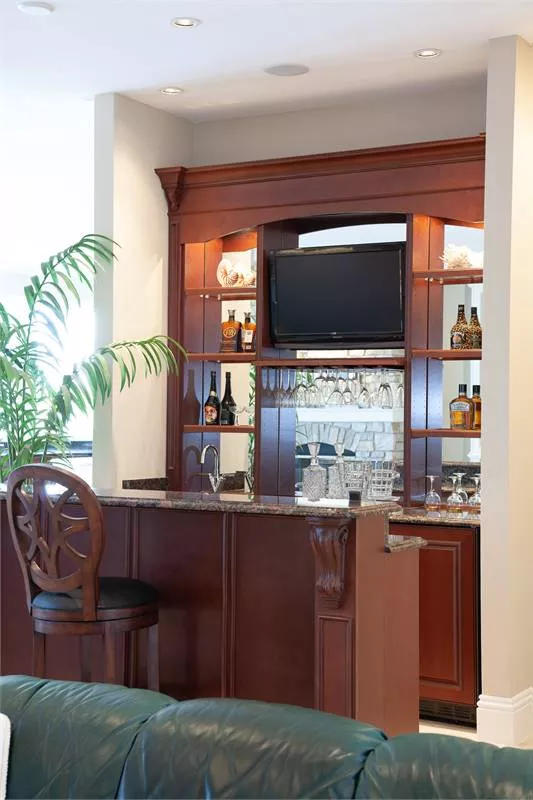

Wet Bar

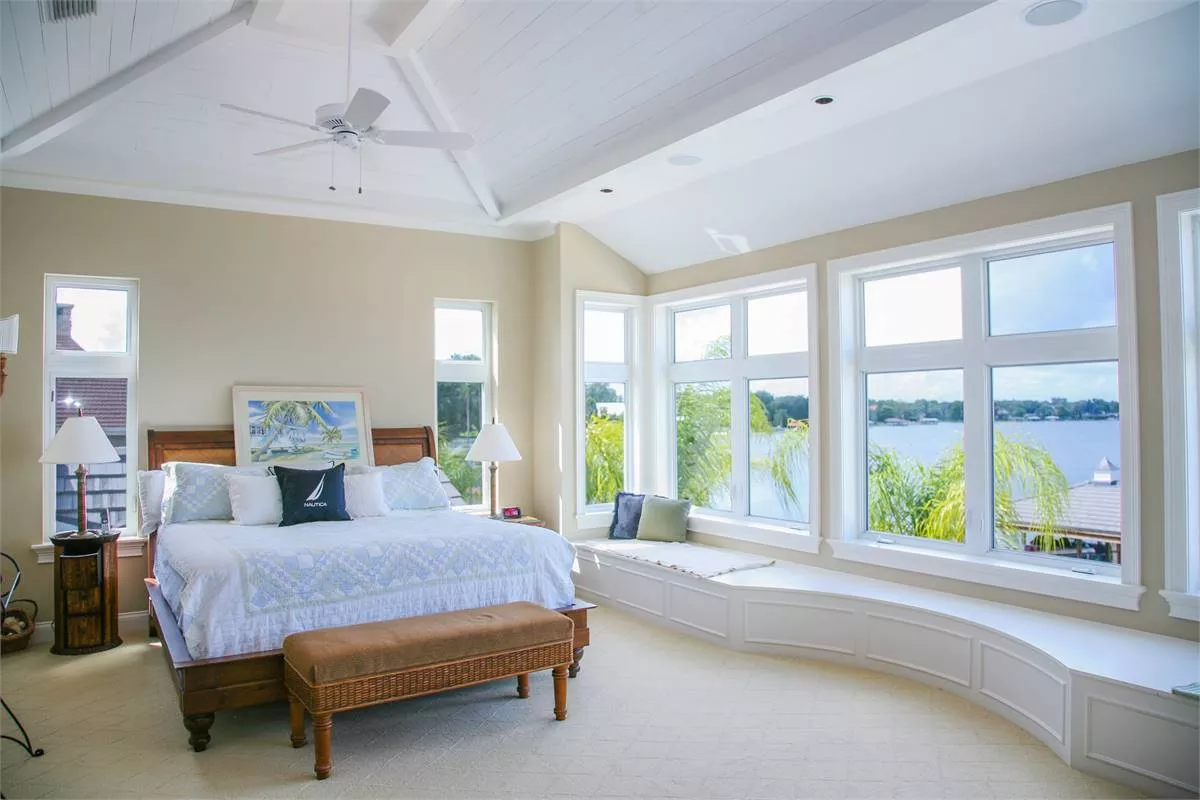

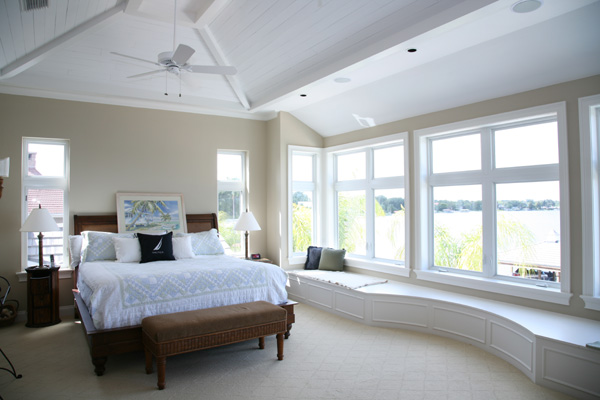

Master Bedroom

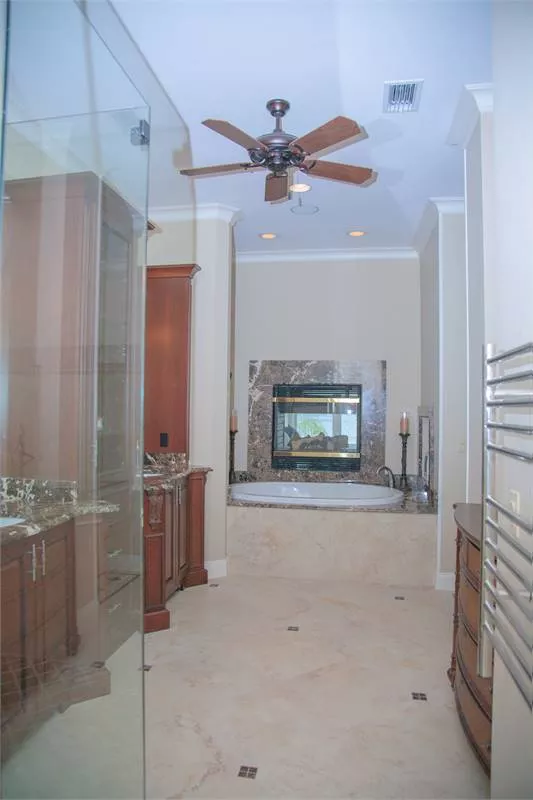

Master Bath

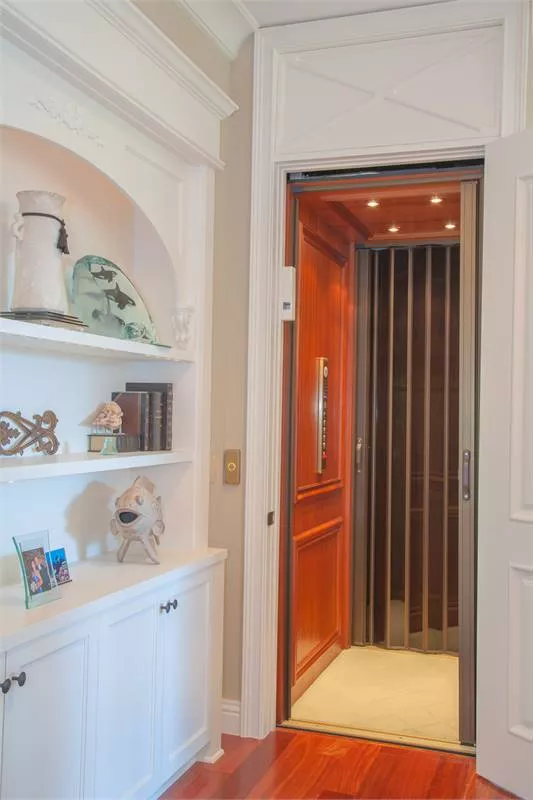

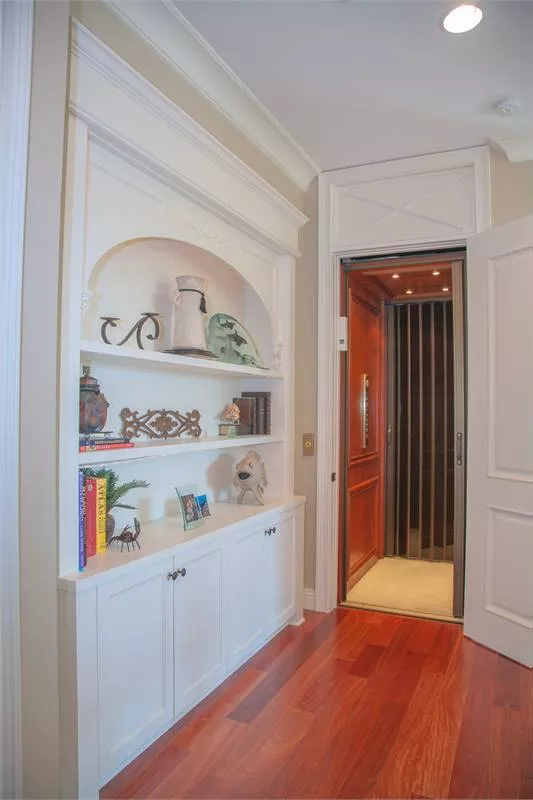

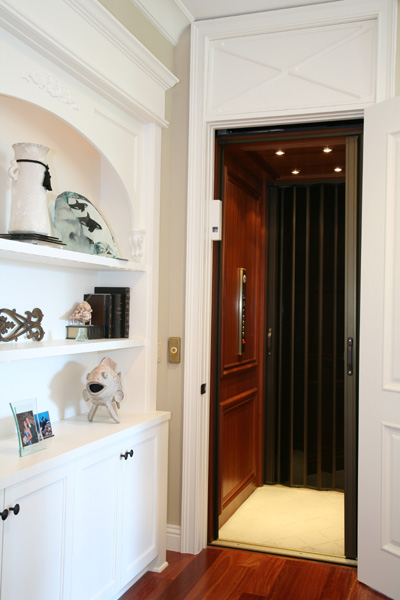

Elevator

Garage

View All 17 Images | Photographs may reflect modified home

Sq Ft

4,334 FT²

From

$1,600.00

Beds

Baths

3.5

Stories

Garage

Depth

58' 2"

Width

76' 10"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

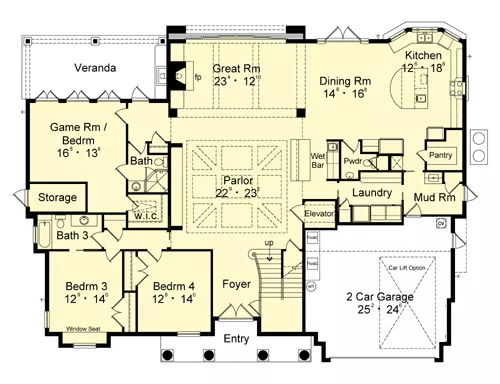

First Floor Plan

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

This European influenced island style home was designed with spectacular views and outdoor living in mind. Its inspiration was taken from the casual elegant resorts of the Caribbean. The beautiful mahogany and gas lantern entrance set the stage for the, Wow Factor as you enter the Grand Room with its wood beamed ceiling and staircase. It is there where you and your guests will be captivated by the huge 10 x 18 sliders that disappear into the walls, framing the view and bringing the outside right into your home.

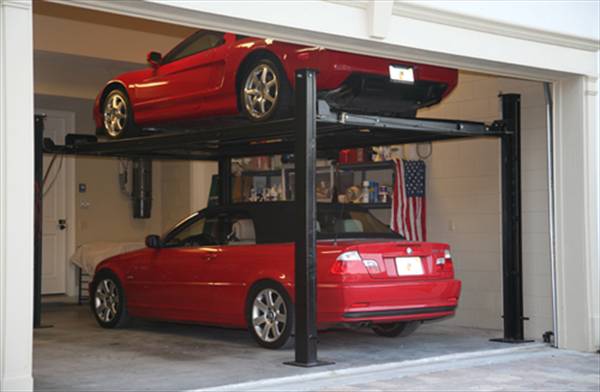

This home is full of special features such as an elevator to the master suite and the bonus room floors as well as the optional car lift to make your 2-car garage into a 3 for that classic sports car. This floor plan is very versatile and excellent for show casing any view. Modifying the exterior elevation to a craftsmen or cabin style will reflect a fabulous mountain retreat. Made to fit on a smaller lot, this mini mansion can fit almost anywhere.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Peninsula / Eating Bar
Walk-in Pantry

Bedroom features

Primary Bdrm Upstairs
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Screened Porch/Sunroom

Foundation Options

Slab

Lot Options

Suited for view lot

Additional features

2 Story Volume
Dining Room
Exercise Room
Great Room
Home Office
Laundry 1st Fl
Laundry 2nd Fl
Library/Media Rm
Mud Room
Open Floor Plan
Storage Space
Unfinished Space
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry
Oversized

6,142 Ft

Total Structure

4,334 Ft

Total Heated

3,076 Ft

1st Floor

1,258 Ft

2nd Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

76' 10"

Width

58' 2"

Depth

39' 6"

Height

12' 0"

Main Floor Ceiling

10' 0"

Upper Floor Ceiling

8" Block/Wood

Framing

Truss

Roof Framing

9/12

Primary Roof Pitch

6:12

Secondary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

599 Ft

Garage

137 Ft

Porch

331 Ft

Patio

595 Ft

Bonus Room

Exterior Styles

Beach

Craftsman

Southern

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$800

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$800

$1,600

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,600

$1,800

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,800

$1,950

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,950

$3,200

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
