House Plan 5144: Ayer

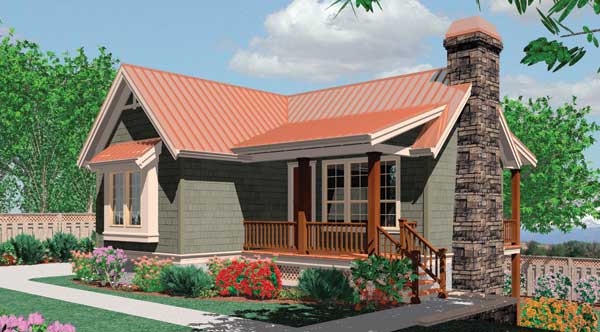

This adorable little cottage is full of surprises, both inside and out. Begin with a covered front deck, a stone chimney stack and cedar shake shingle on the outside. Then look to the interior for a completely livable main level and a lower level with additional bedrooms.  Read more >

House Plan Details

Sq. Ft.
1,225
Beds
3
Baths
2.0
Stories
1
Garages
0
Width
30' 0"
Depth
41' 0"
1st Floor
735

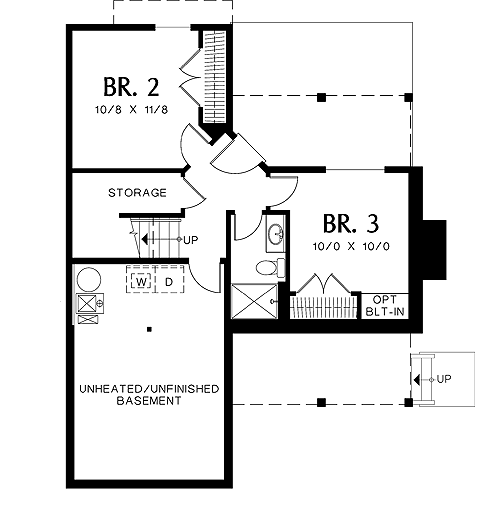

Lower
490
Porch
90
Deck
85
Select Plan Package
PDF Files - Single Build
$856
Select Foundation Options
$0
Slab Foundation-Included
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

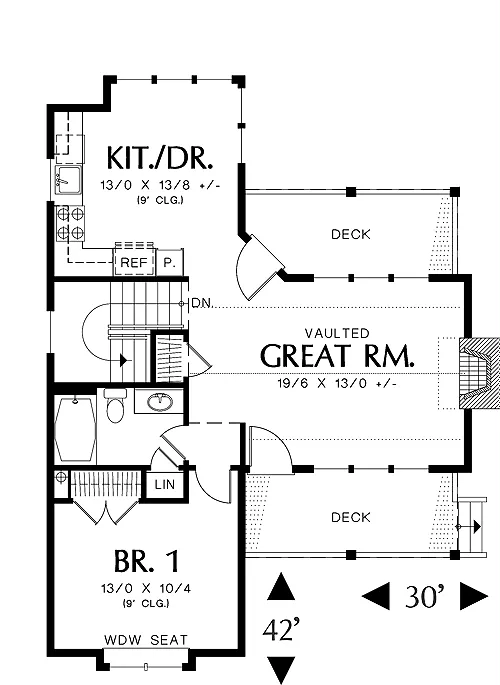

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 0
Stories: 1
Exterior Style
Beach
Cottage
Craftsman
Dimensions
Width: 30' 0"
Height: 17' 0"
Depth: 41' 0"
Heated Living Space
Total Sq. Ft: 1,225
1st Floor: 735
Lower: 490
Unheated Living Space
Porch: 90
Deck: 85
Ceiling
Upper Ceiling Ft: 0
Main Ceiling Ft: 9
Framing Information
Framing: 2x6
Roof Framing: Truss
Bedroom Features
Master Bdrm Main Floor
Split Bedrooms
Kitchen Features
Additional Room Features
Great Room
Laundry 2nd Fl
Open Floor Plan
Unfinished Space
Vaulted Ceilings
Garage Location
None
Garage Features
None
Lot Features
Suited for narrow lot
Suited for sloping lot
Suited for view lot
Roof Pitch
Primary: 12/12
Secondary: 4/12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
