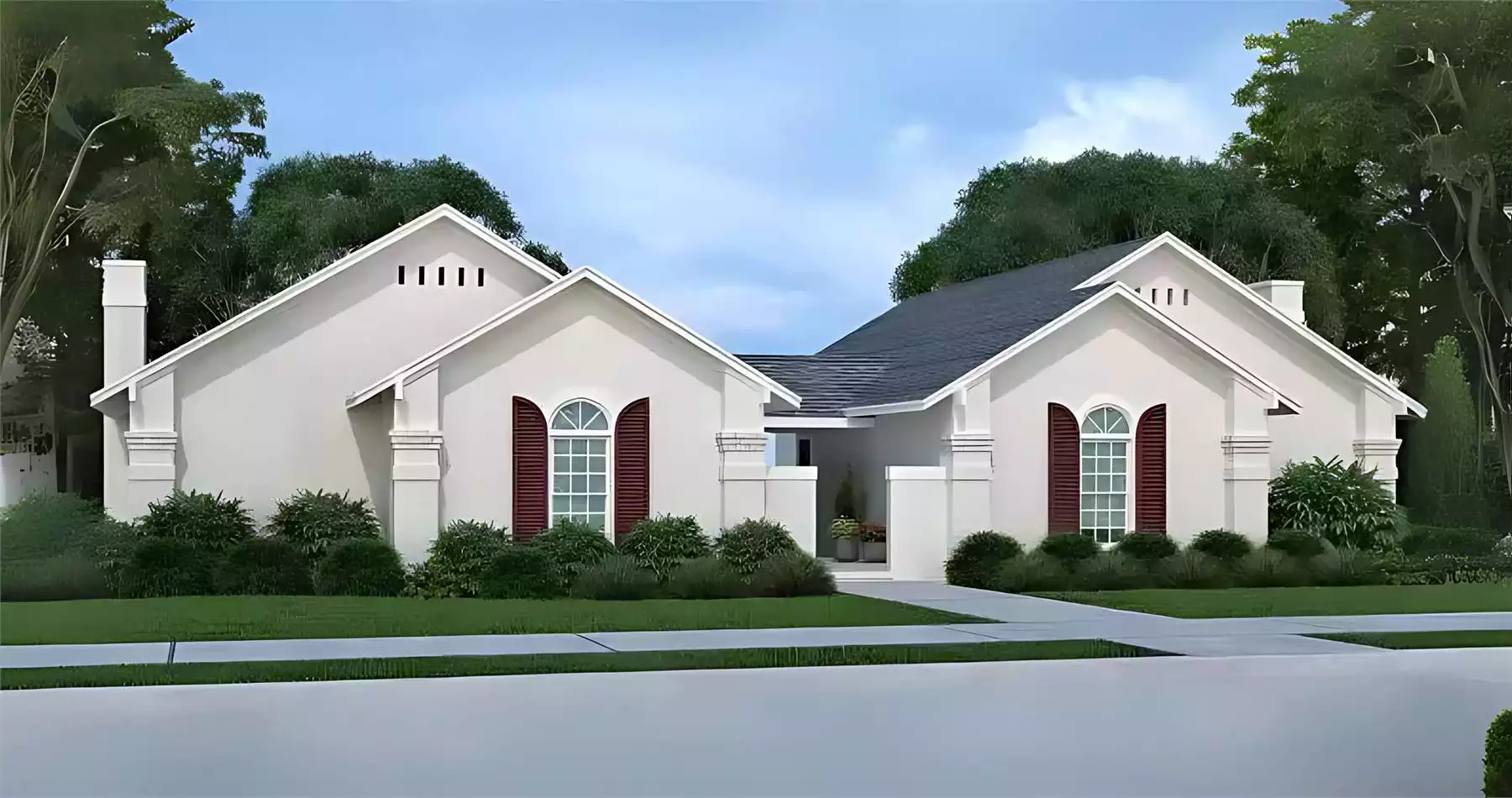

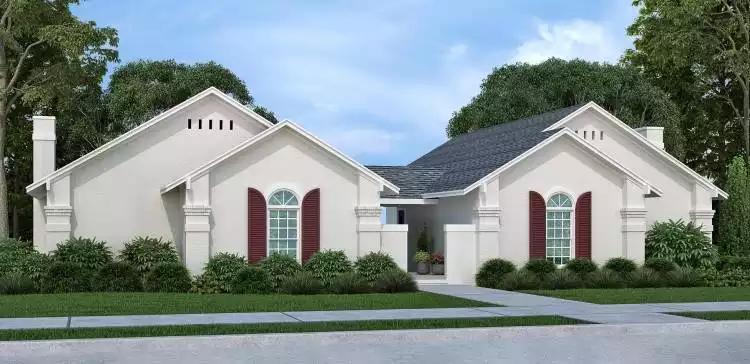

House Plan 5358: Athens-1000

The design of this duplex plan offers a great solution for those seeking a home for themselves plus rental income live in one unit and rent out the other. They also make great retirement homes or the perfect solution for those who are attending to elderly parents.  Read more >

House Plan Details

Sq. Ft.
2,166
Beds
2
Baths
2.0
Stories
1
Garages
0
Width
70' 0"
Depth
44' 0"
Per Unit
1,083
Storage
16
Porch
138
Select Plan Package
PDF Construction Set - 1
$750
Select Foundation Options
$0
Concrete Slab Foundation
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

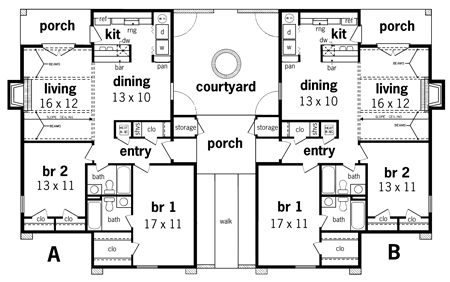

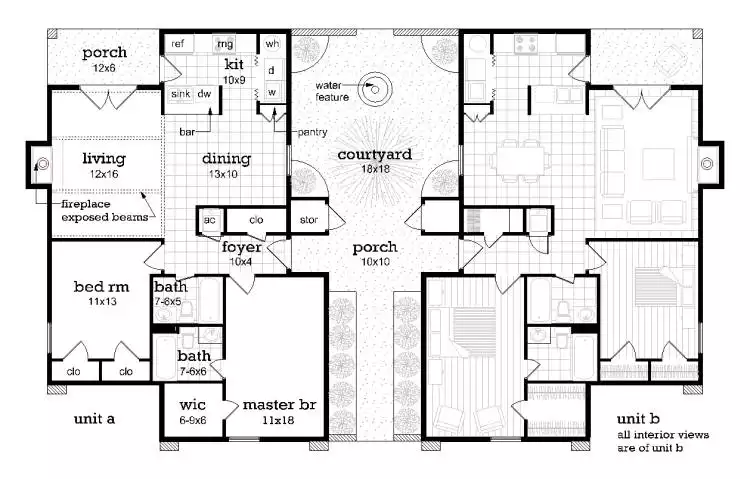

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,083
Bedrooms:
2
Bathrooms:
2.0
Garage:
0
Stories:
1
Main Ceiling Height:
8 & 12'
Upper Ceiling Height:
'
Framing:
2x6
Roof Framing:
Stick
Roof Pitch:
Primary: 7:12
Width:
70' 0"
Height:
17' 0"
Depth:
44' 0"
Exterior Styles:
European
Mediterranean
Traditional
Unheated Living Space:
Storage: 16
Porch: 138
HOME FEATURES
Bedroom Features:
Kitchen Features:
Additonal Features:
Laundry 1st Fl
Garage Features:
None
Garage Location:
Lot Features:

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer

Questions & Answers

Have questions about this plan?
Q.How large is the courtyard? How wide is the walkway? Width of entry hall? What are the dimensions of the kitchen? Is it possible to increase the depth of the kitchen? I would want an entirely different kitchen layout. And is it possible to change the bath configurations? Perhaps on one unit I would only want 1 large aging in place friendly bath with the w/d located off the mbr in what was shown as a closet. The w/d would need to be moved in both units. I would instead have closets/dresserbuilt out on each side of the 17' wall flanking a queen bed.

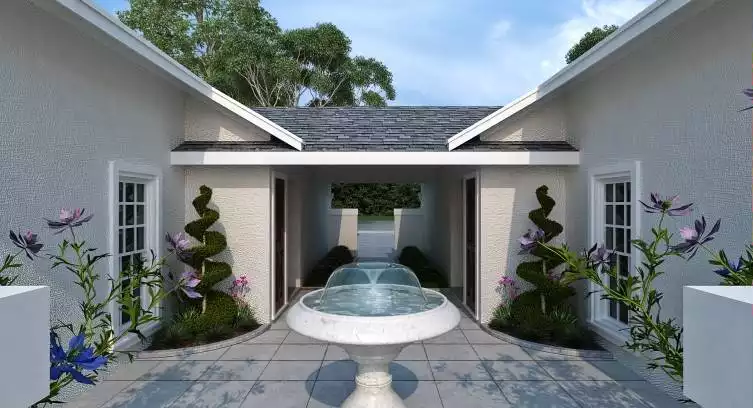

A.Courtyard is currently 18'0" x 18'0". The walkway is currently 4'0" wide with 3'0" wide plant areas on each side. The width of the entry hall is 4'6" The kitchen dimensions are 13'6" x 9'0" Yes, it is possible to change the depth of the kitchen. Yes, it is possible to change the bath configurations.
