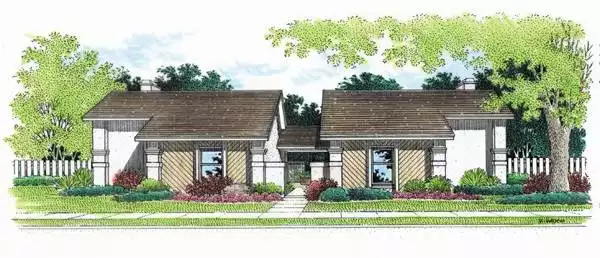

House Plan 5360: Ashdown-1004

The design of this duplex plan offers a great solution for those seeking a home for themselves plus rental income live in one unit and rent out the other. They also make great retirement homes or the perfect solution for those who are attending to elderly parents.  Read more >

House Plan Details

Total
Sq. Ft.
2,166
Per Unit
Sq. Ft.
1,083
Beds
2
Baths
2.0
Stories
1
Garages
0
Width
70' 0"
Depth
44' 0"
Select Plan Package
PDF Construction Set - 1
$750
Select Foundation Options
$0
Concrete Slab Foundation
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

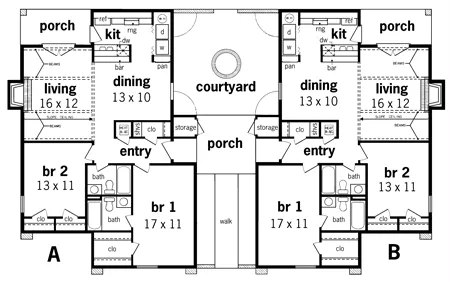

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total Structure SQ. FT.:
2,166
Unit Total SQ. FT.:
1,083
Bedrooms:
2
Bathrooms:
2.0
Garage:
0
Stories:
1
Main Ceiling Height:
8 & 12'
Upper Ceiling Height:
'
Framing:
2x6
Roof Framing:
Stick
Roof Pitch:
Primary: 7:12
Width:
70' 0"
Depth:
44' 0"
Height:
17' 0"
Exterior Styles:
Cottage
Modern
Unheated Living Space:
Storage: 16
Porch: 138
HOME FEATURES
Bedroom Features:
Kitchen Features:
Additonal Features:
Garage Features:
None
Garage Location:
Lot Features:
