Sq Ft
3,231 FT²

Beds
4

Baths
3

Stories
2

Garage
2

Depth
50'

Width
57'

From
$1,325.00

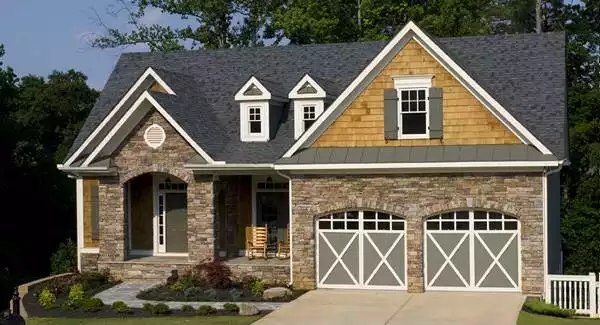

Front Photo

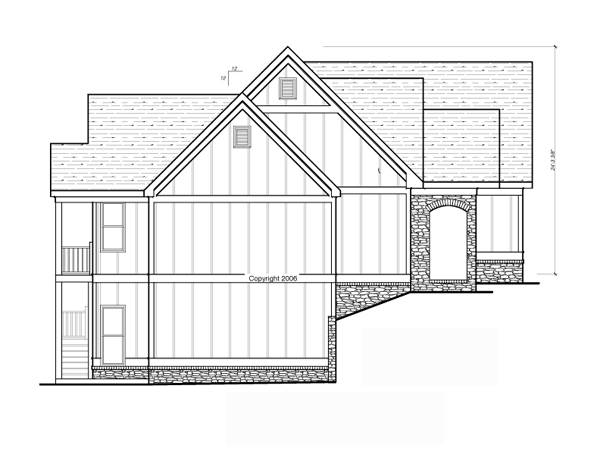

Left Elevation

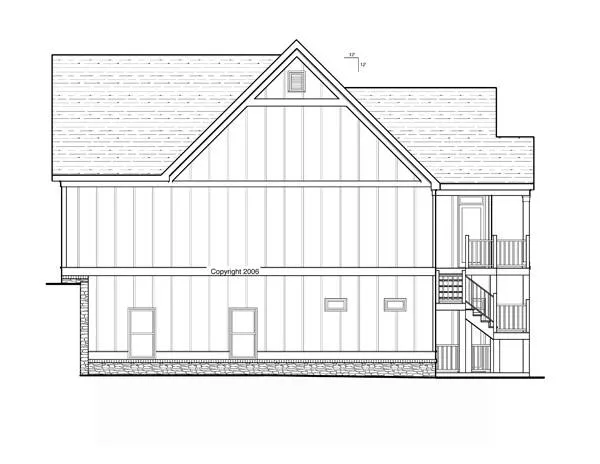

Right Elevation

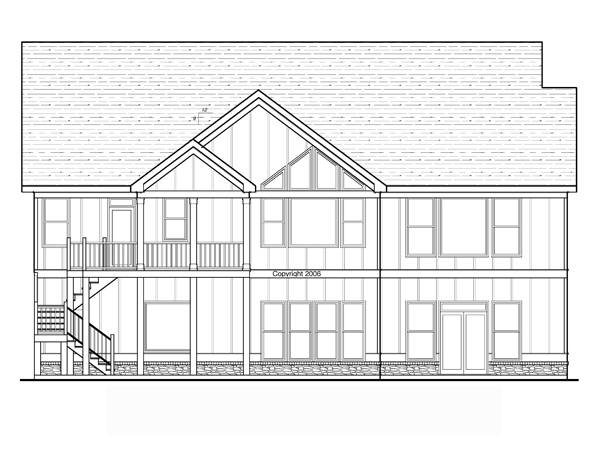

Rear Elevation

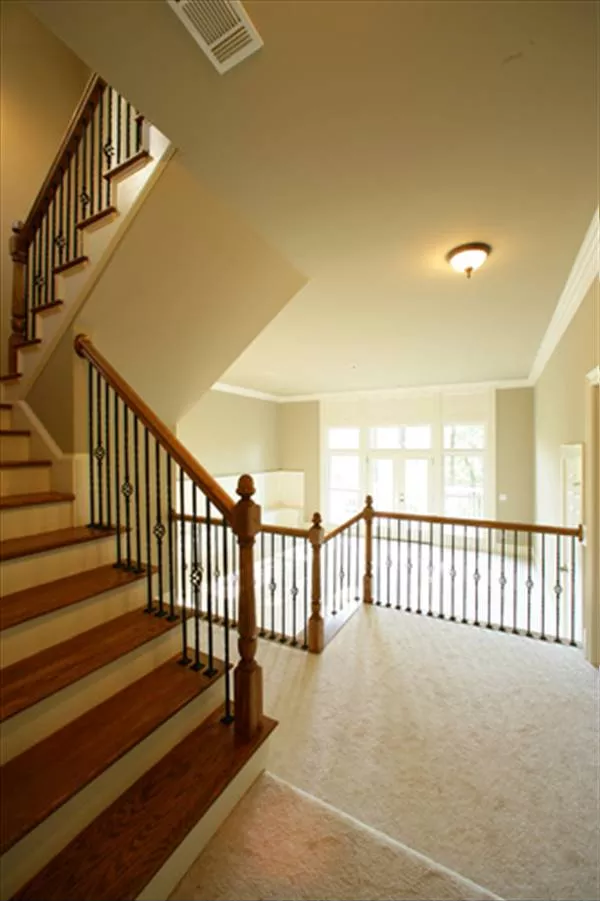

Stairs

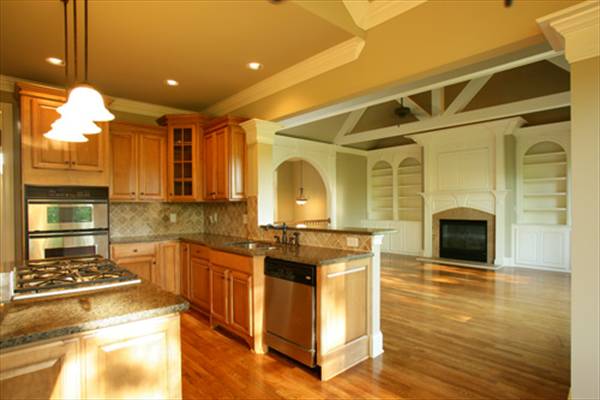

Kitchen -View to Living Area

View All 6 Images | Photographs may reflect modified home

Sq Ft

3,231 FT²

From

$1,325.00

Beds

Baths

Stories

Garage

Depth

50'

Width

57'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

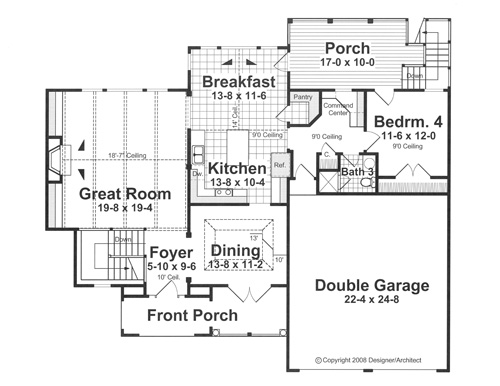

Main Level

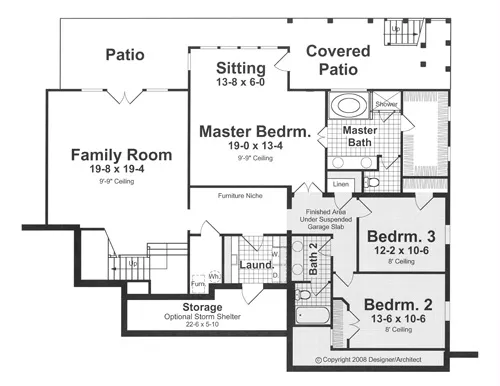

Lower Level

Main Level

Lower Level

About This Plan

The home's foyer provides a breathtaking view into this spectacular truss ceiling great room, the focal point of this hillside design. A main floor bedroom and the breakfast nook share access to the deck providing the house accessibility to outside.

The staircase flows down to the lower level opening into the family room giving the children their own space and outdoor access as the terrain allows. The master bedroom enjoys the full rear view and access to its own private patio or deck.

A suspended garage slab helps economize building on severely sloped lots and provides usable finished space to the lower level. Notice, the children's rooms are located under this space.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
Separate Tub and Shower
Sitting Area
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Deck
Front Porch
Rear Porch

Foundation Options

Basement
Daylight Basement
Walkout Basement

Lot Options

Suited for sloping lot

Additional features

2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Foyer
Great Room
Home Office
Inverted Living
Laundry 2nd Fl
Open Floor Plan
Storage Space
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

3,231 Ft

Total Heated

1,367 Ft

1st Floor

1,864 Ft

Lower Floor

Bedrooms

Bathrooms

Garage

Stories

57' 0"

Width

50' 0"

Depth

26' 4"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

12/12

Gable Roof Pitch

12/12

Dormer Roof Pitch

Single

Dwelling Number

Unheated Living Space

579 Ft

Garage

226 Ft

Storage

145 Ft

Porch

56 Ft

Deck

400 Ft

Patio

Exterior Styles

Bungalow

Craftsman

Modern

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$850

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$850

$1,325

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,325

$1,450

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,450

$1,988

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,988

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
