Sq Ft
3,293 FT²
Bed
4
Bath
3.5
Stories
3
Garage
3
Depth
76' 2"
Width
33'
On Sale
$1,126.25
$1,126.25
© copyright by designer
View All 5 Images | Photographs may reflect modified home
Sq Ft
3,293 FT²
From
$1,126.25
Bed
4
Bath
3.5
Stories
3
Garage
3
Depth
76' 2"
Width
33'

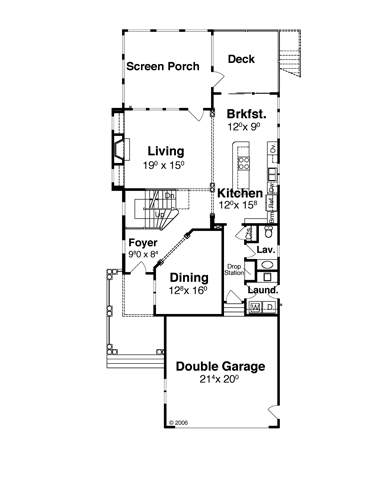

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

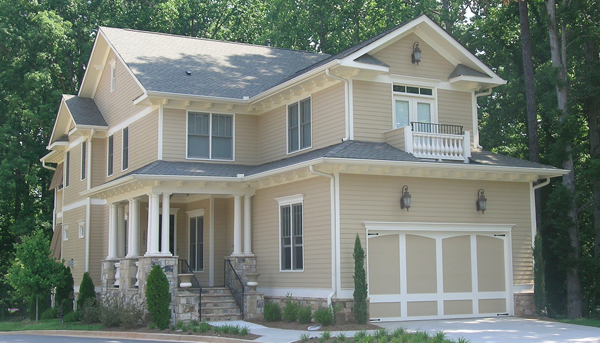

Complete with trellis, front deck and screen porch on the rear, this Italianate villa evokes a feeling of times past. Elegant details repeat including the Juliet balcony and ornate windows and doors.

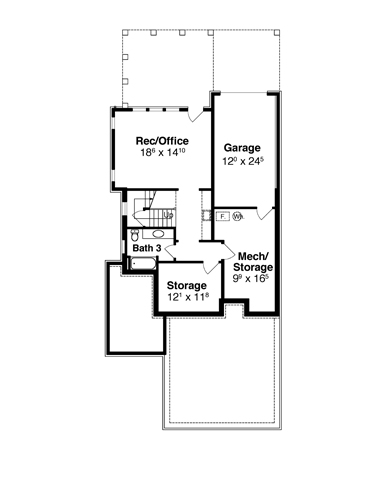

Although there is a front entry two car garage the rear offers a third. If lot conditions do not allow, it still makes for easily accessible basement storage.

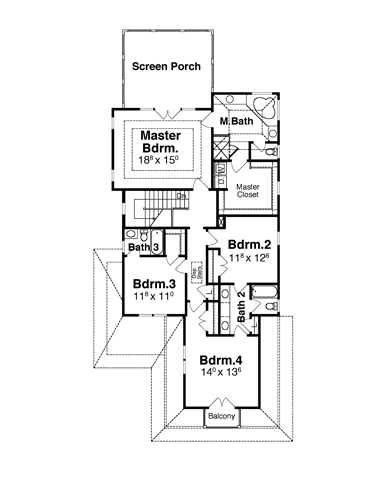

Despite its narrow footprint, the plan includes many open features utilizing space and light. A second floor screen porch makes the master suite a complete retreat.

The plan can be considered a split bedroom design because of the separate hall across the stairs from the master suite.




FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
Guest Suite
Master Bdrm Upstairs
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Deck
Front Porch
Rear Porch
Screened Porch/Sunroom
Wraparound Porch
Foundation Options
Basement
Walkout Basement
Lot Options
Suited for narrow lot
Additional features
Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Laundry 2nd Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Rec Room
Storage Space
Unfinished Space
Vaulted Ceilings
Workshop
Garage Location
Front
Garage Options
Attached
Front-entry
3,293 Ft
2
Total Heated
1,202 Ft
2
1st Floor
1,520 Ft
2
2nd Floor
571 Ft
2
Lower Floor
4
Bedrooms
3.5
Bathrooms
3
Garage
3
Stories
33' 0"
Width
76' 2"
Depth
44' 4"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
7/12
Primary Roof Pitch
7/12
Gable Roof Pitch
3/12
Porch Roof Pitch
Single
Dwelling Number

Unheated Living Space
479 Ft
2
Garage
632 Ft
2
Storage
156 Ft
2
Porch
152 Ft
2
Deck


Plan Package Options

 Select Plan Package
$850
PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$850
$1,325
PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,325
$1,450
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,450
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping

Note: Contact Designer for status on PDF.
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
