HOUSE PLANS
START AT $600
SQ FT
1,772
BEDS
3
BATHS
2
STORIES
1
CARS
2
WIDTH
50'
DEPTH
69' 8"
© copyright by designer
Photographs may reflect modified homes.
SQ FT
1,772
BEDS
3
BATHS
2
STORIES
1
CARS
2



House Plan 4908: Ashbourne

This is the perfect home plan for a young family or for Grandma and Papa. Three bedrooms are enclosed in a Mediterranean-style exterior. High flat ceilings make this home live and feel much bigger. The sumptuous master suite boasts his and hers walk-in closets, a dual-sink vanity, a garden tub, and a separate shower. Two secondary bedrooms with nearby bath are great for kids or guests. A nice size...  Read more >

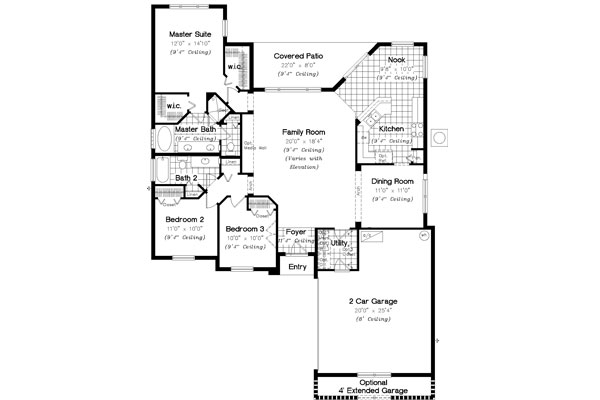

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
Immediate Delivery!
Digital set of plans for bidding purposes only
$600

PDF Single Build


Digital plans emailed to you in PDF format allowing minor changes, printing copies, and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Immediate Delivery!
Most recommended package
$950

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,150

5 Printed Sets + PDF


Digital plan emailed to you in PDF format allows making minor changes and printing copies on home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF
Immediate Delivery!
Digital plans plus 5 printed sets
$1,300

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$1,900
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
Features:
View All Plan Features
Kitchen features
Nook / Breakfast Area
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor
Walk-in Closet
Lot features
Suited for narrow lot
Suited for view lot
Additional features
2 Story Volume
Arches
Dining Room
Foyer
Great Room
Laundry 1st Fl
Workshop
Garage Location
Front
Garage Features
Attached
Side-entry

Hide Plan Features
Details:
View All Plan Details
2,433 Ft
2
Total Structure:
1,772 Ft
2
Total Heated:
3
Bedrooms:
2
Bathrooms:
2
Garage:
1
Stories:
50' 0"
Width:
69' 8"
Depth:
21' 4"
Height:
9'4"
Main Floor Ceiling:
8" Block
Framing:
Truss
Roof Framing:
6/12
Primary Roof Pitch:
Single
Dwelling Number:
None
Bonus Access:
Unheated Living Space
497 Ft
2
Garage:
18 Ft
2
Porch:
144 Ft
2
Patio:
Exterior Styles
European
Mediterranean
Southwest

Hide Plan Details
