Sq Ft
2,105 FT²

Beds
3

Baths
2.5

Stories
1.5

Garage
2

Depth
67'

Width
39' 6"

From
$1,200.00

Rendering

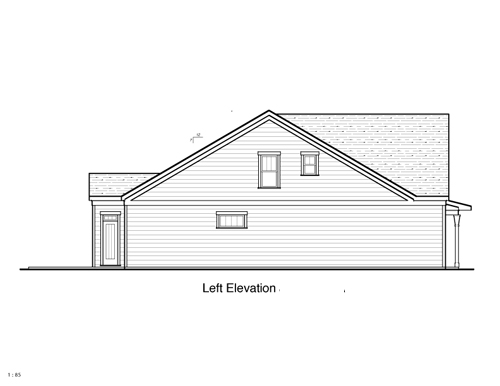

Left Elevation

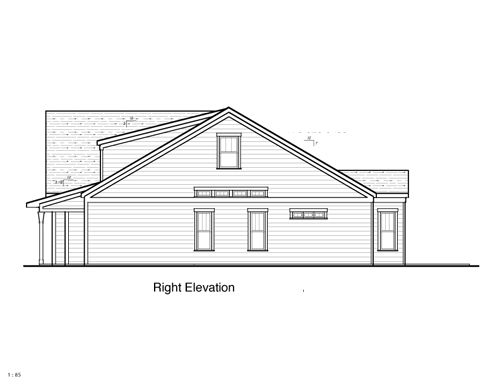

Right Elevation

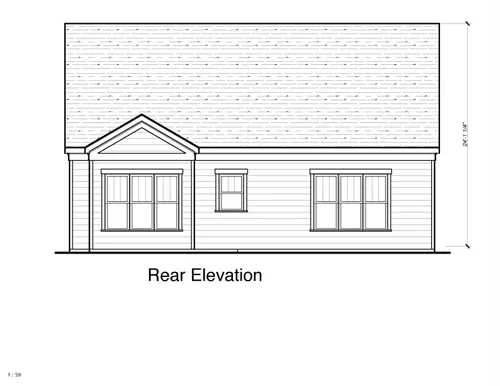

Rear Elevation

View All 4 Images | Photographs may reflect modified home

Sq Ft

2,105 FT²

From

$1,200.00

Beds

Baths

2.5

Stories

1.5

Garage

Depth

67'

Width

39' 6"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

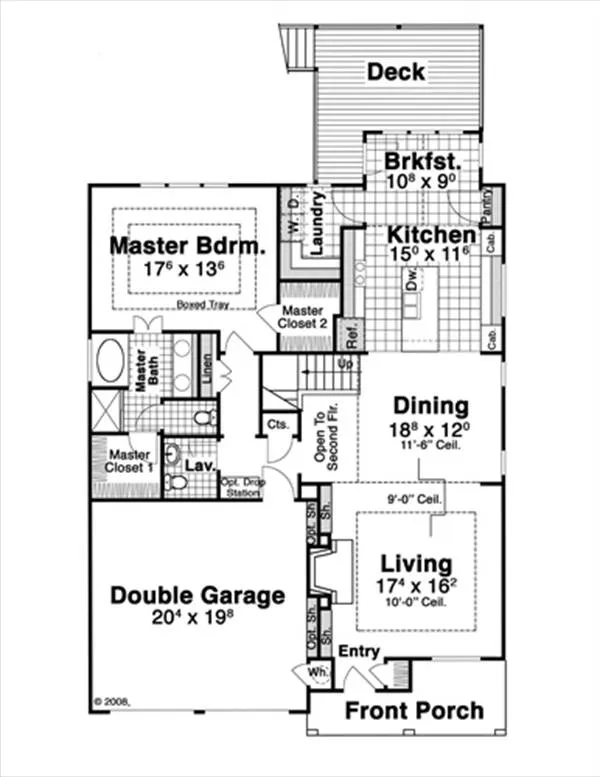

First Floor

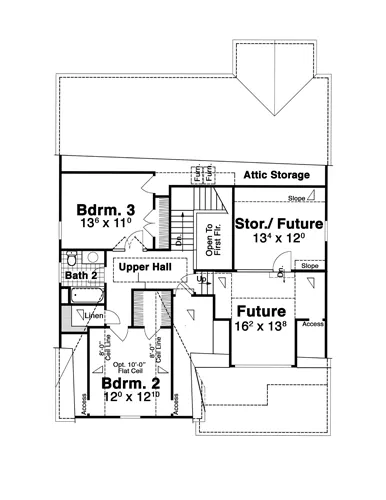

Second Floor

First Floor

Second Floor

About This Plan

Designed for a small lot, this master on the main plan leaves out nothing. Volume ceilings throughout the first floor make it difficult to believe there is a second floor. The dining room sores to 12' while opening to the 2nd floor balcony. The garage entry provides a drop station for books and coats before leading into the main rooms that span the full depth of the plan. While open each space is defined by a break in the ceiling creating division without blocking the line of site.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area

Bedroom features

Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Front Porch
Front Porch

Foundation Options

Basement
Slab

Lot Options

Suited for narrow lot

Additional features

Bonus Room
Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Storage Space
Unfinished Space
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

2,105 Ft

Total Heated

1,537 Ft

1st Floor

568 Ft

2nd Floor

1,554 Ft

Lower Floor

Bedrooms

2.5

Bathrooms

Garage

1.5

Stories

39' 6"

Width

67' 0"

Depth

23' 8"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

8/12

Primary Roof Pitch

14/12

Gable Roof Pitch

3/12

Dormer Roof Pitch

3/12

Porch Roof Pitch

Single

Dwelling Number

Unheated Living Space

100 Ft

Porch

153 Ft

Patio

377 Ft

Bonus Room

Exterior Styles

Bungalow

Cottage

Craftsman

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$750

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$750

$1,200

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,200

$1,300

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,300

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
