House Plan 7742:

A central great room runs the entire depth of the house. Formal dining is convenient to great room and kitchen providing optimum traffic flow. A luxury master suite is enhanced by a tray ceiling, walk-in closet and garden bath.  Read more >

House Plan Details

Sq. Ft.
1,617
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
74' 0"
Depth
34' 0"
Select Plan Package
Four Sets
$645
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

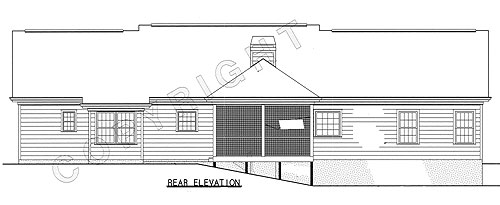

PLAN IMAGES

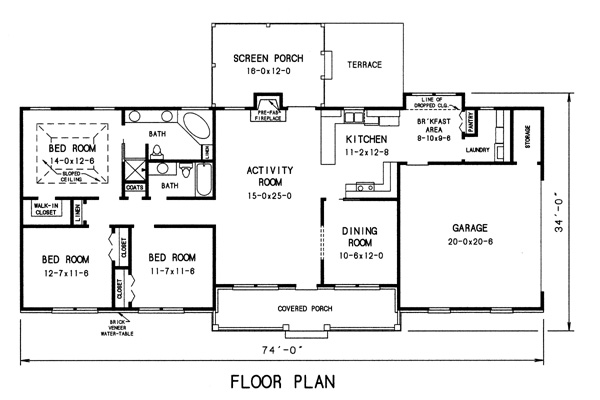

floor plan

floor plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,617
1st Floor SQ. FT.:
1,617
Bedrooms:
3
Bathrooms:
2.0
Garage:
2
Stories:
1
Main Ceiling Height:
8'
Upper Ceiling Height:
'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 8/12
Width:
74' 0"
Depth:
34' 0"
Height:
22' 0"
Exterior Styles:
Country
Southern
Traditional
Unheated Living Space:
Garage: 460
Porch: 155
Patio: 155
HOME FEATURES
Bedroom Features:
Walk-in Closet
Kitchen Features:
Butler's Pantry
Nook / Breakfast Area
Additonal Features:
Great Room
Vaulted Ceilings
Garage Features:
Attached
Side-entry
Garage Location:
Side
Lot Features:
Suited for corner lot
