House Plan 5438:

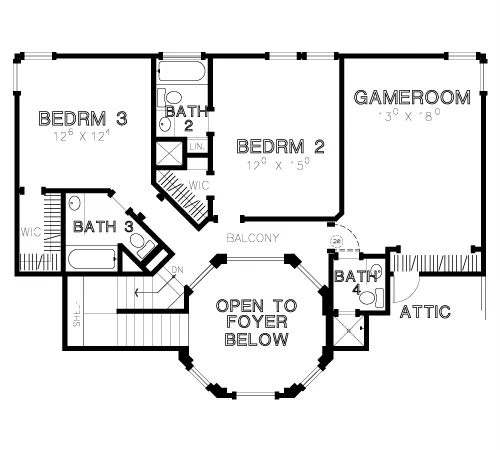

The two story high rotunda is a central feature of this mediterranean style stucco home. The master suite is on the first floor and two bedrooms and a gameroom are upstairs. Popular features include a formal dining room and separate living and family rooms.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
2,877
Beds
3
Baths
4.1
Stories
2
Garages
2
Width
67' 2"
Depth
57' 8"
Modify this Home Plan
Estimate the Cost to Build
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
PDF Plan Package
$1445
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.
SEE DETAILED PLAN OPTIONS
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

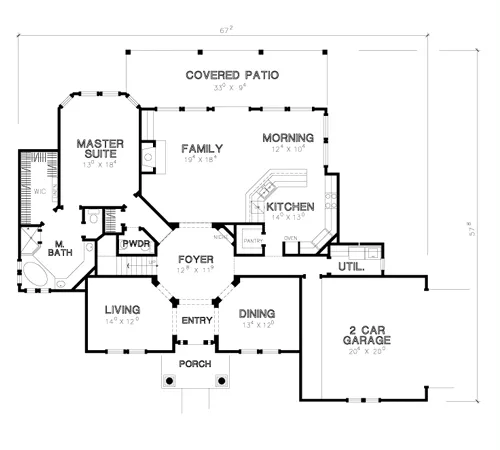

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
2,877
1st Floor SQ. FT.:
1,923
2nd Floor SQ. FT.:
954
Bedrooms:
3
Bathrooms:
4.1
Garage:
2
Stories:
2
Main Ceiling Height:
10'
Upper Ceiling Height:
9'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 7/12
Width:
67' 2"
Depth:
57' 8"
Height:
29' 0"
Exterior Styles:
European
Mediterranean
Southwest
Traditional
Unheated Living Space:
Garage: 427
Porch: 75
HOME FEATURES
Bedroom Features:
Kitchen Features:
Additonal Features:
Garage Features:
Attached
Garage Location:
Side
Lot Features:
