House Plan 5046:

House Plan Details

Sq. Ft.
4,868
Beds
4
Baths
5.1
Stories
2
Garages
4
Width
89' 0"
Depth
101' 4"
1st Floor
3,442
2nd Floor
1,426
Bonus
251
Garage
1,103
Select Plan Package
FIVE SETS OF BONDPRINTS
$1600
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

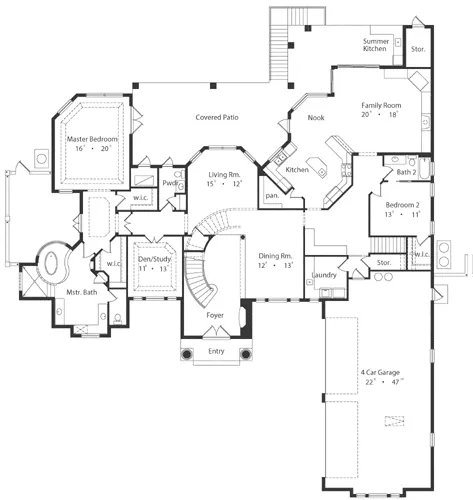

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 4
Bathrooms: 5.1
Garage: 4
Stories: 2
Exterior Style
Beach
Contemporary
European
Mediterranean
Southern
Dimensions
Width: 89' 0"
Height: 0' 0"
Depth: 101' 4"
Heated Living Space
Total Sq. Ft: 4,868
1st Floor: 3,442
2nd Floor: 1,426
Bonus: 251
Unheated Living Space
Garage: 1,103
Ceiling
Upper Ceiling Ft: 0
Main Ceiling Ft: 0
Framing Information
Framing: 8" Block
Roof Framing: Truss
Bedroom Features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Kitchen Features
Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Additional Room Features
2 Story Volume
Arches
Bonus Room
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Storage Space
Unfinished Space
Garage Location
Side
Garage Features
Attached
Lot Features
Suited for view lot
Roof Pitch
