Sq Ft
1,704 FT²
Bed
3
Bath
2
Stories
1
Garage
2
Depth
50' 8"
Width
50'
On Sale
$807.50
$950.00
© copyright by designer
View All 1 Images | Photographs may reflect modified home
Sq Ft
1,704 FT²
From
$807.50
Bed
3
Bath
2
Stories
1
Garage
2
Depth
50' 8"
Width
50'

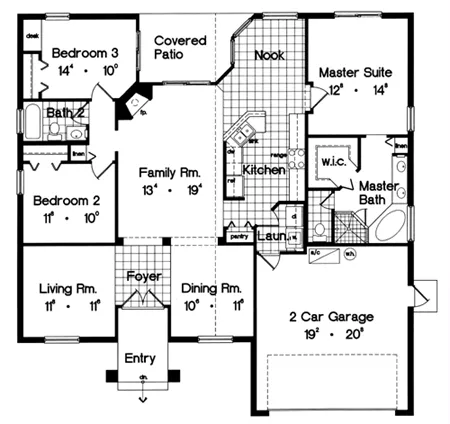

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

Cathedral ceilings abound throughout this home, which affords many interesting drywall arches, niches, and plant shelves. Columns grace the foyer which is flanked by the formal living and dining rooms. The heart of this home is the family room with its corner fireplace and sliding glass doors to the covered patio. The kitchen is a well appointed space with plenty of cabinets and is tiled through the nook. The master suite has a view of the rear yard and adjoins the bath which comes complete with corner spa tub shower, private toilet chamber and walk-in closet. The secondary bedroom wing holds two bedrooms which share an efficient bath. With a two car garage, and zero hallway wasted space, this plan is a study in good design spiced up with vaulted ceilings.


FEATURES & DETAILS

Kitchen features
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Exterior features
Covered Rear Porch
Rear Porch
Foundation Options
Basement
Crawlspace
Slab
Lot Options
Suited for narrow lot
Suited for view lot
Additional features
2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Laundry 1st Fl
Mud Room
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Options
Attached
Front-entry
1,704 Ft
2
Total Heated
3
Bedrooms
2
Bathrooms
2
Garage
1
Stories
50' 0"
Width
50' 8"
Depth
21' 2"
Height
10' 0"
Main Floor Ceiling
8" Block
Framing
Truss
Roof Framing
6/12
Primary Roof Pitch
Single
Dwelling Number
None
Bonus Access

Unheated Living Space
423 Ft
2
Garage
59 Ft
2
Porch
104 Ft
2
Patio


Plan Package Options

 Select Plan Package
$600
PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$600
$950
PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$950
$1,150
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,150
$1,300
5 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,300
$1,900
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,900
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
