Builder Preferred Modern Duplex Style House, Plan 8843


Sq Ft
1,694 FT²

Beds
3

Baths
1.5

Stories
2

Garage
1

Depth
40'

Width
52' 10"
From
$1,627.00
© copyright by designer
View All 5 Images | Photographs may reflect modified home
Sq Ft
1,694 FT²
From
$1,627.00
Beds
3
Baths
1.5
Stories
2
Garage
1
Depth
40'
Width
52' 10"

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

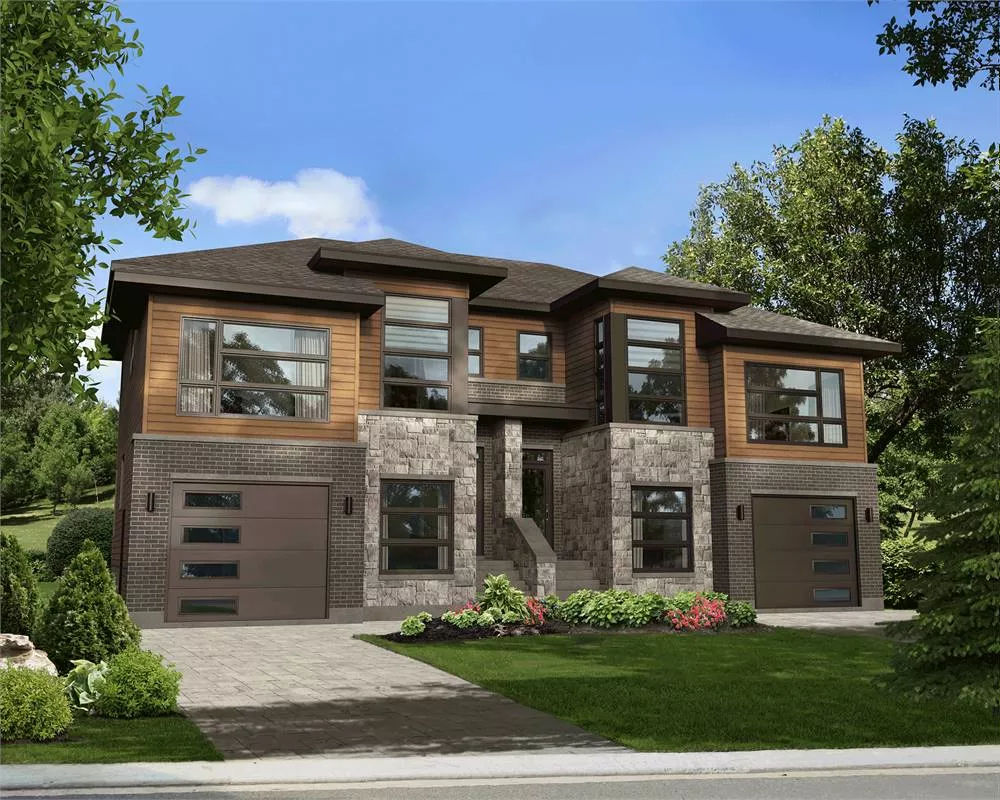

This builder preferred modern duplex house plan uses mixed mediums to bring curb appeal and elegance to this affordably sized 3 bedroom, 1.5 bath units, both with 1 garage bay.

Each side’s 1,694 heated square feet provides the best of both worlds with the open concept style being used on the main 1st level with the privacy and minimization of noise being the purpose of its 2nd level that has all of the bedrooms of the duplex.

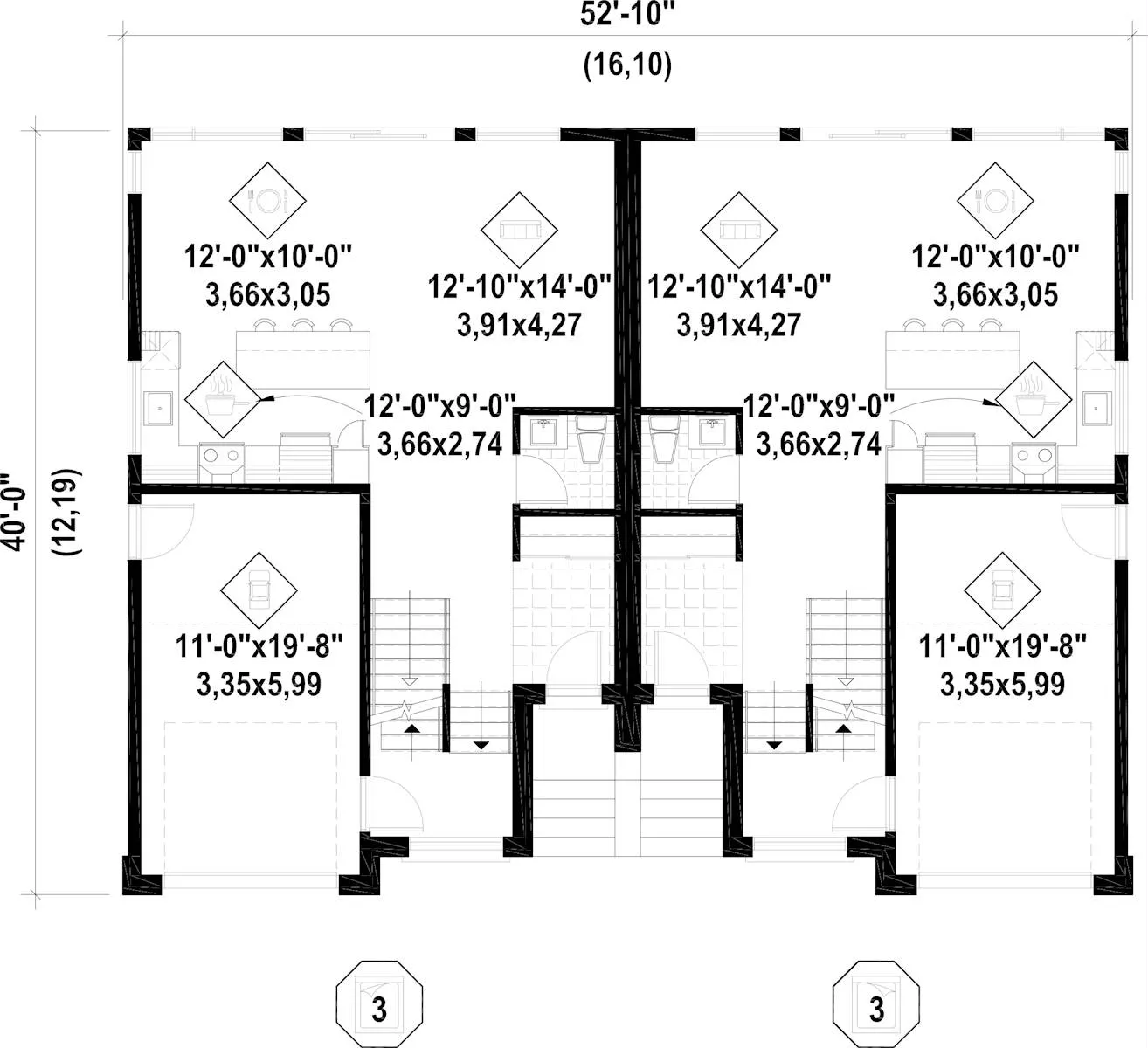

Guests will enter through the stone accented and covered front porch directly into the tiled foyer that has a convenient coat closet and is adjacent to the entrance from the 1 car garage. The half bath of the unit is immediately ahead. The living space blends the 3 point kitchen that has a large island with enough space for overflow diners. The dining space also opens up through the sliding doors to the small back patio that is perfect for a bistro table. The fireplace in the living space brings ambiance and charm.

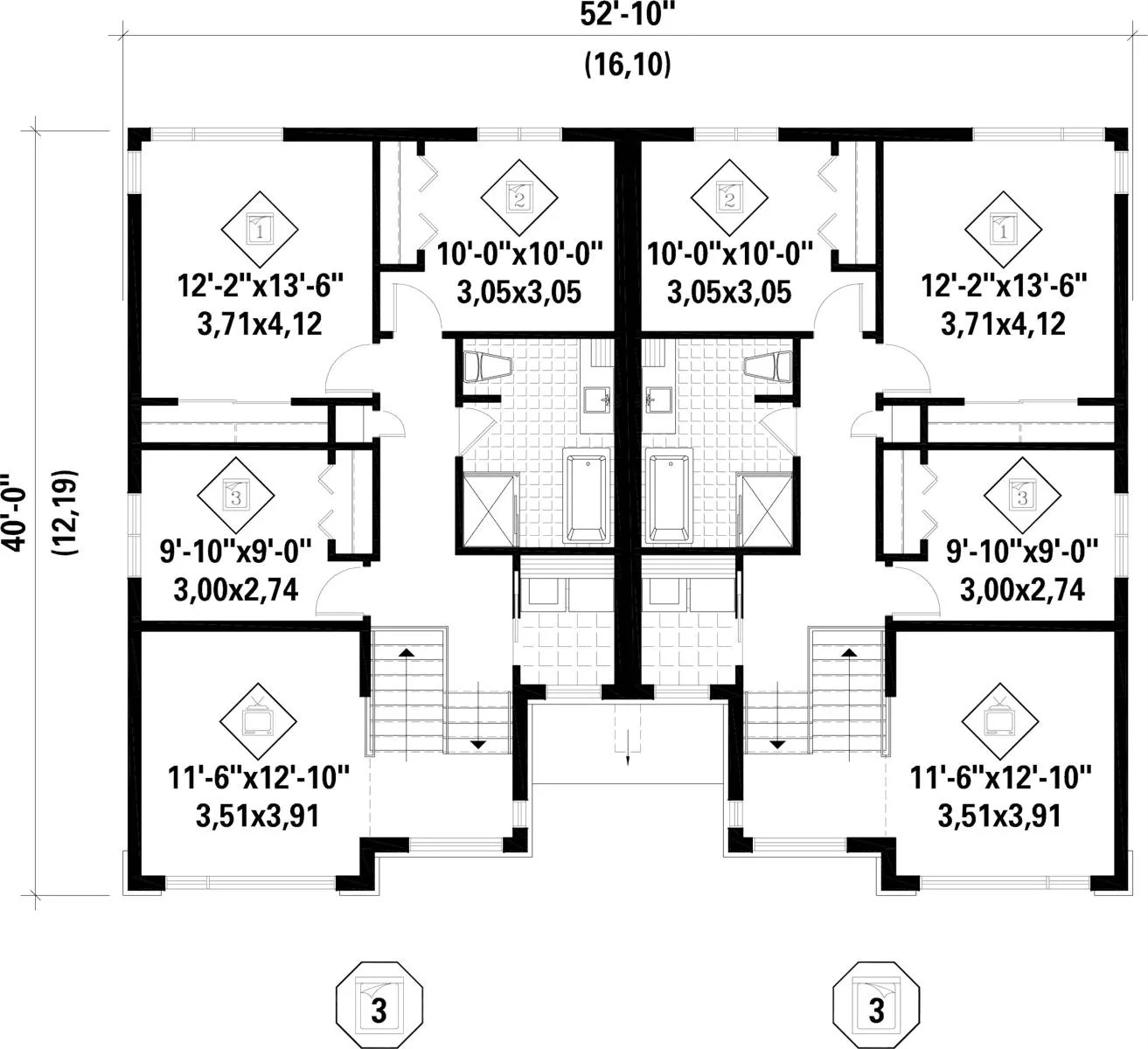

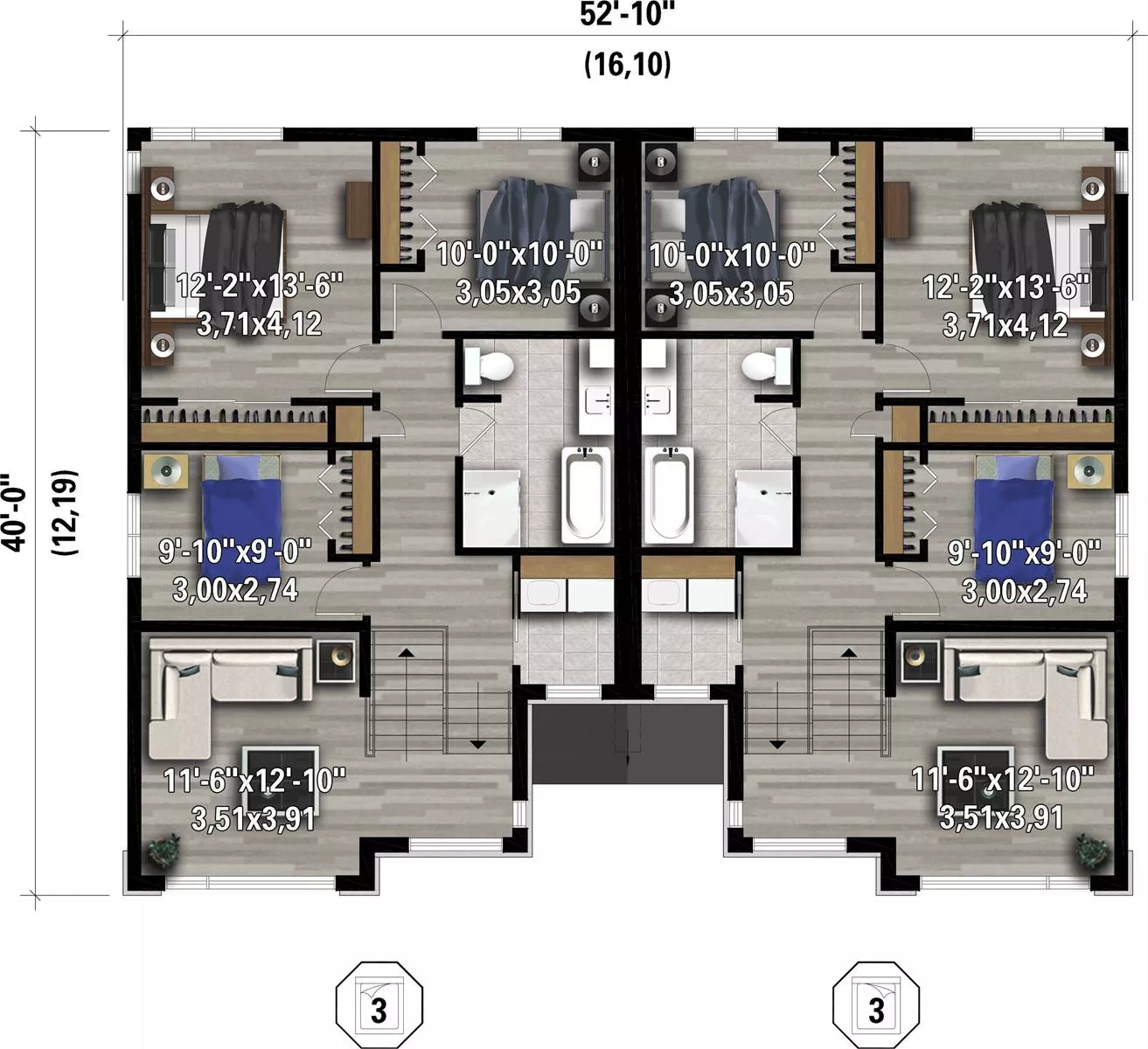

Up the stairs you will find all 3 bedrooms of the home and the large bathroom that has a tub and a shower. The laundry room is convenient to all of the bedrooms so your days of lugging baskets of clothes up and down the stairs are days of the past! There is even a small living space at the front of the home that would be perfect for relaxed movie nights or for the gamer of the home while others enjoy a movie downstairs by the light of the fire.


FEATURES & DETAILS

Kitchen features
Kitchen Island
L-Shaped
Bedroom features
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet
Additional features
Foyer
Home Office
Laundry 2nd Fl
Open Floor Plan
Garage Location
Front
Garage Options
Attached
Front-entry
3,388 Ft
2
Total Structure
1,694 Ft
2
Unit Heated
1,440 Ft
2
1st Floor
1,948 Ft
2
2nd Floor
3
Bedrooms
1.5
Bathrooms
1
Garage
2
Stories
52'
Width
40'
Depth
31'
Height
9' 2"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x6
Framing
Truss
Roof Framing
6:12
Primary Roof Pitch
Duplex
Dwelling Number
None
Bonus Access

Unheated Living Space
508 Ft
2
Garage
Exterior Styles


Plan Package Options

 Select Plan Package
$1,627
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,627
$1,717
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,717
$2,327
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,327
 Need To Reverse Plan? (Optional)
$150
Readable Reverse

Reverse house plans with readable text and dimensions

$150
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
Provinces of Québec and Ontario only: Purchasable options are 5 printed sets or 8 printed sets. PDF file and CAD file options are unavailable.

Note: Please allow 2-3 weeks to be completed
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
