House Plan 1016:

This plan is designed to fit a narrow lot. Only 346 wide including a front entry double garage, it can fit onto most any small piece of property. The covered stoop leads to a private foyer with a commanding view to the second floor bridge and also the U-shaped stair and spacious great room.  Read more >

House Plan Details

Sq. Ft.
1,477
Beds
3
Baths
2.1
Stories
2
Garages
2
Width
34' 6"
Depth
38' 0"
1st Floor
742

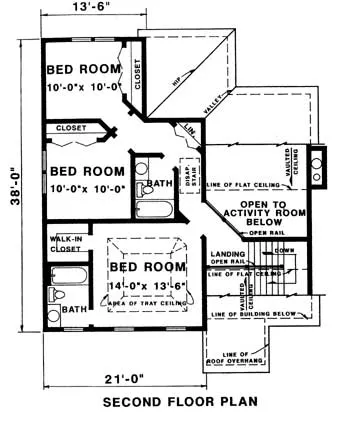

2nd Floor
735
Garage
460
Deck
126
Select Plan Package
Four Sets
$600
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

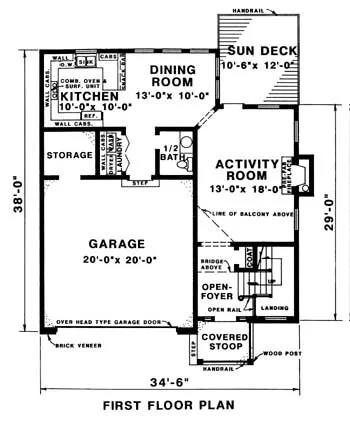

1st floor plan

1st floor plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.1
Garage: 2
Stories: 2
Exterior Style
Cottage
Southern
Traditional
Dimensions
Width: 34' 6"
Height: 0' 0"
Depth: 38' 0"
Heated Living Space
Total Sq. Ft: 1,477
1st Floor: 742
2nd Floor: 735
Unheated Living Space
Garage: 460
Deck: 126
Ceiling
Upper Ceiling Ft: 8
Main Ceiling Ft: 8
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Master Bdrm Upstairs
Walk-in Closet
Kitchen Features
Peninsula / Eating Bar
Additional Room Features
Great Room
Laundry 1st Fl
Loft / Balcony
Vaulted Ceilings
Workshop
Garage Location
Front
Garage Features
Attached
Lot Features
Suited for narrow lot
Roof Pitch
Primary: 8/12
