Oak Harbour | Vaulted Transitional Style House, Plan 10646


Sq Ft
3,153 FT²

Beds
3

Baths
2.5

Stories
1

Garage
3

Depth
56' 4"

Width
118' 8"
From
$1,495.00
© copyright by designer

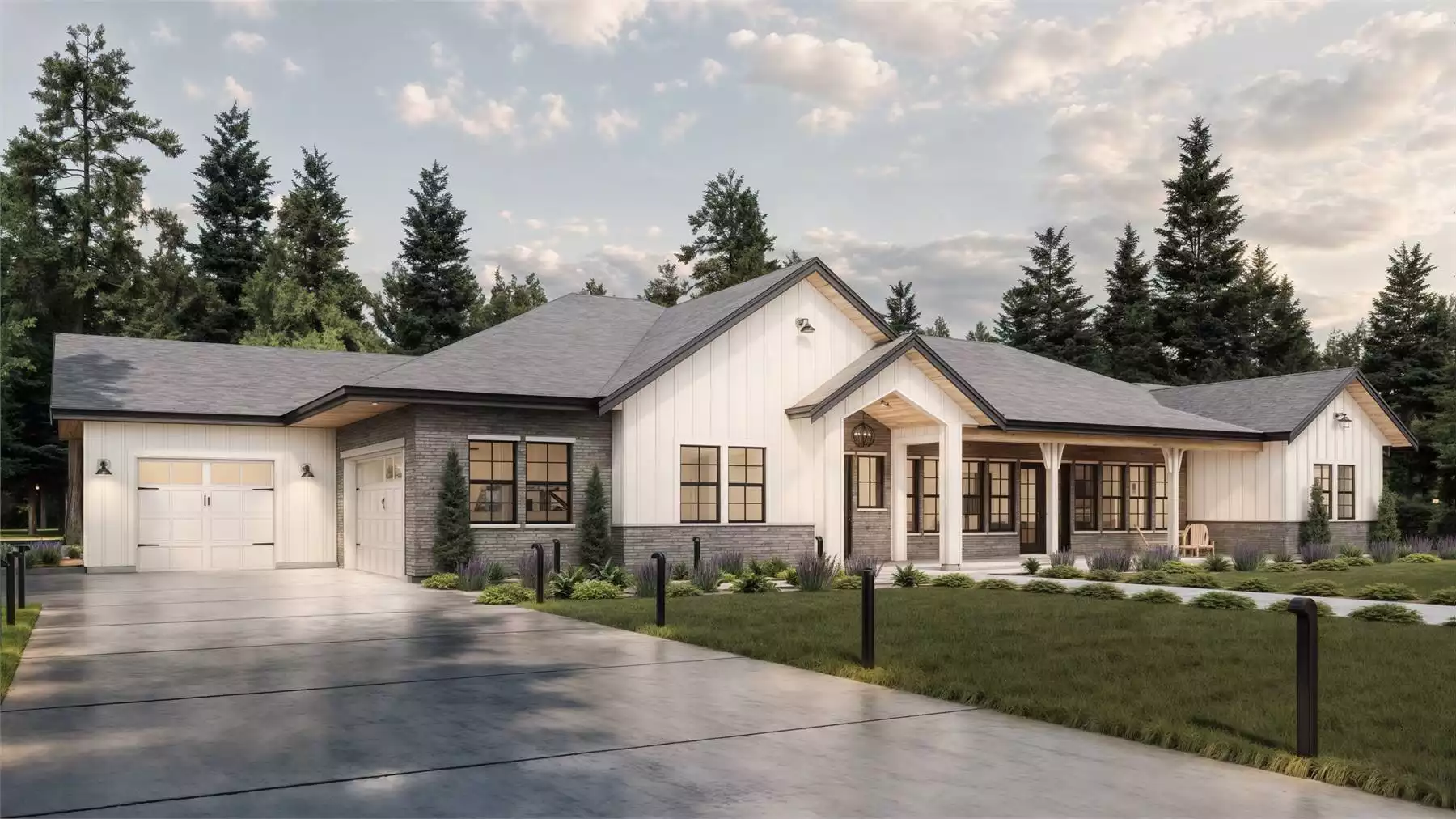

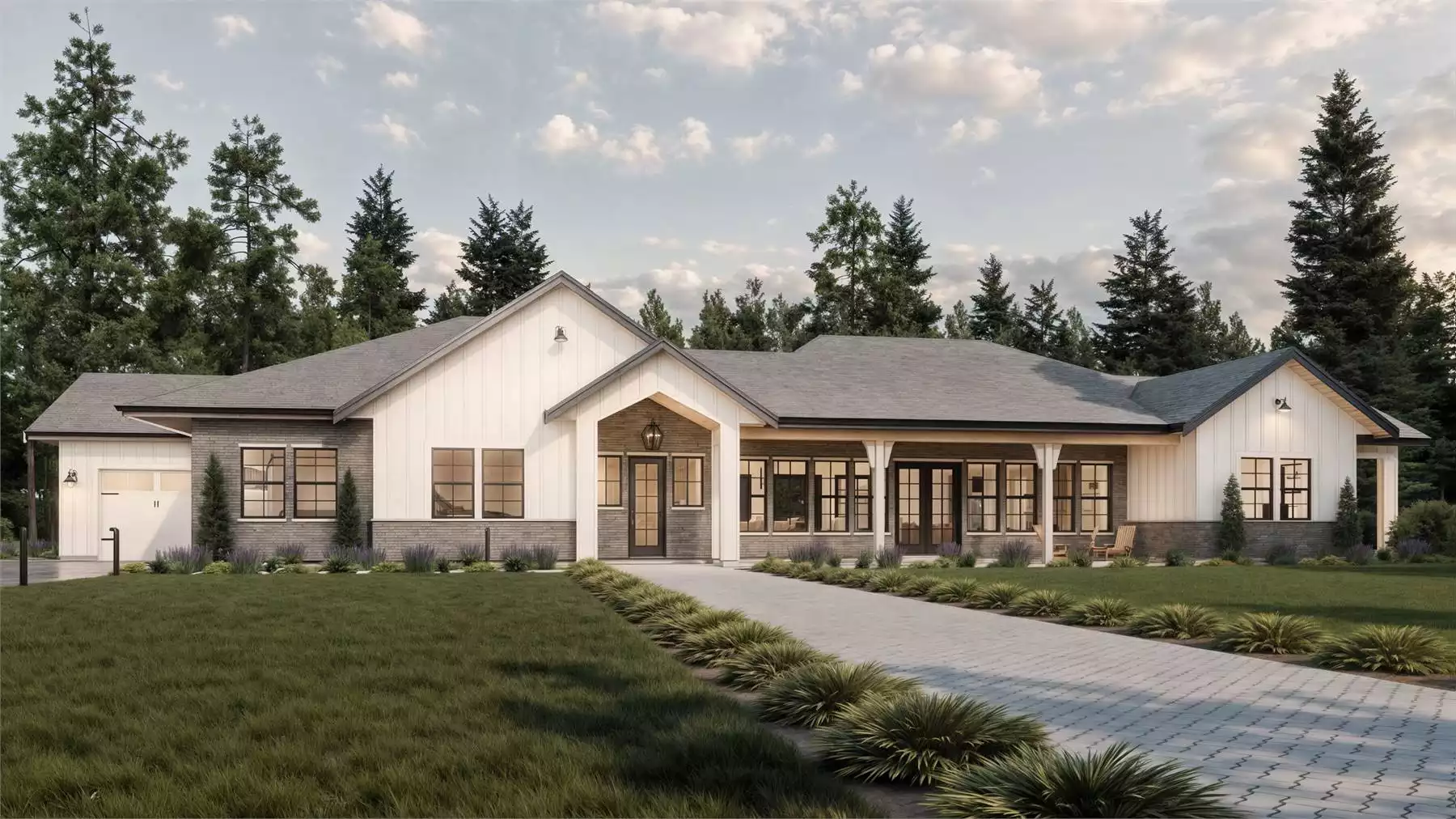

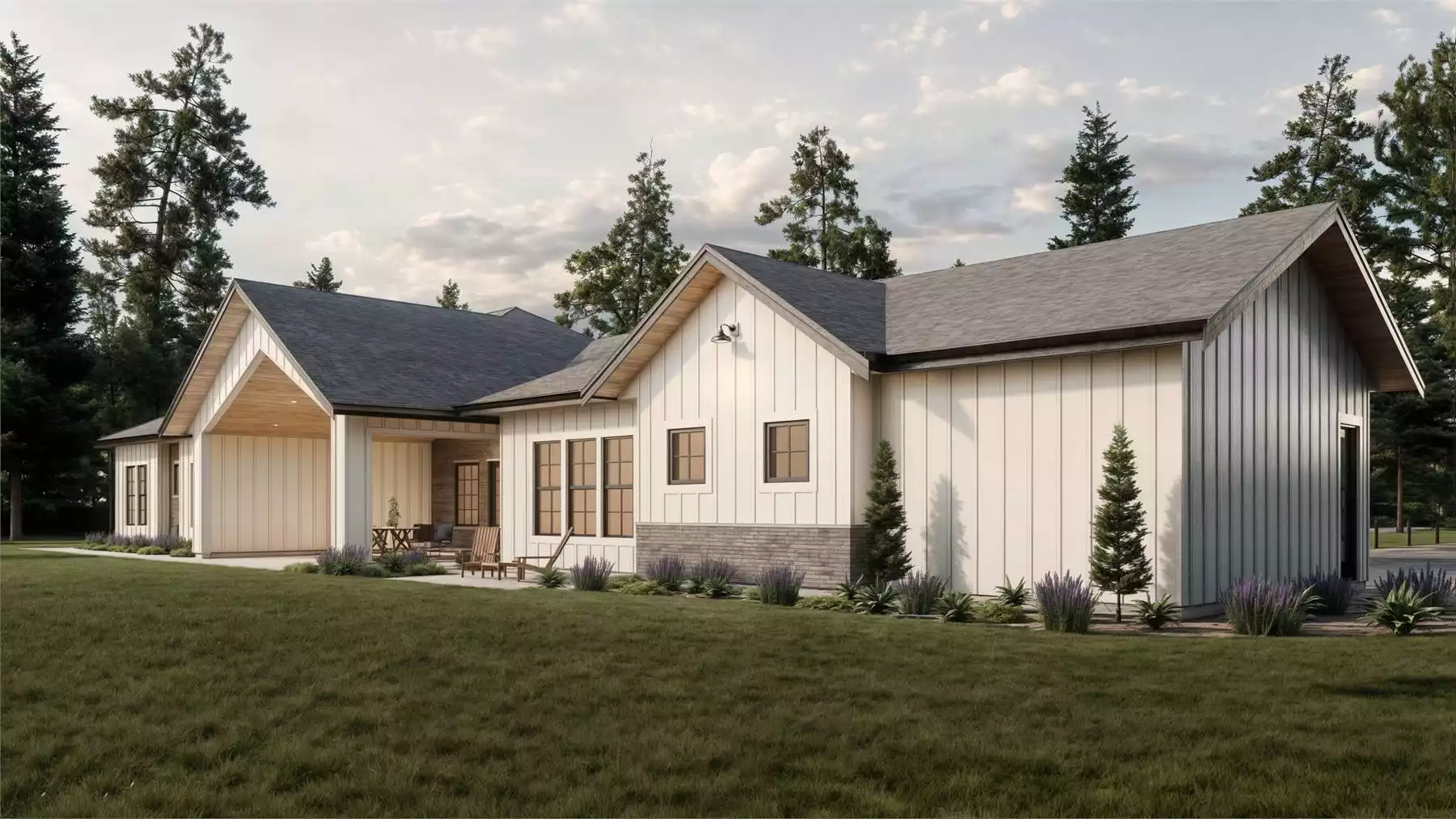

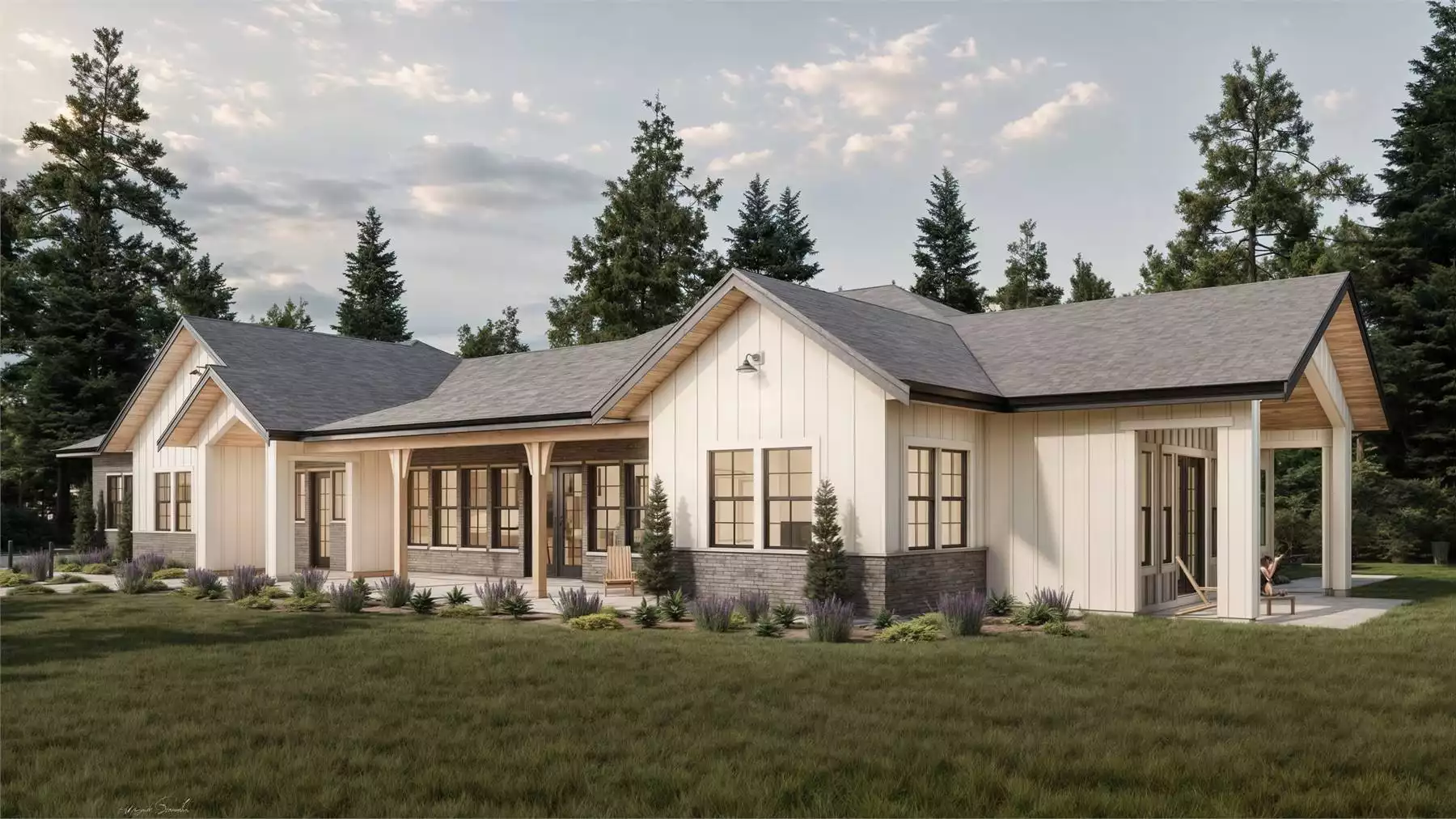

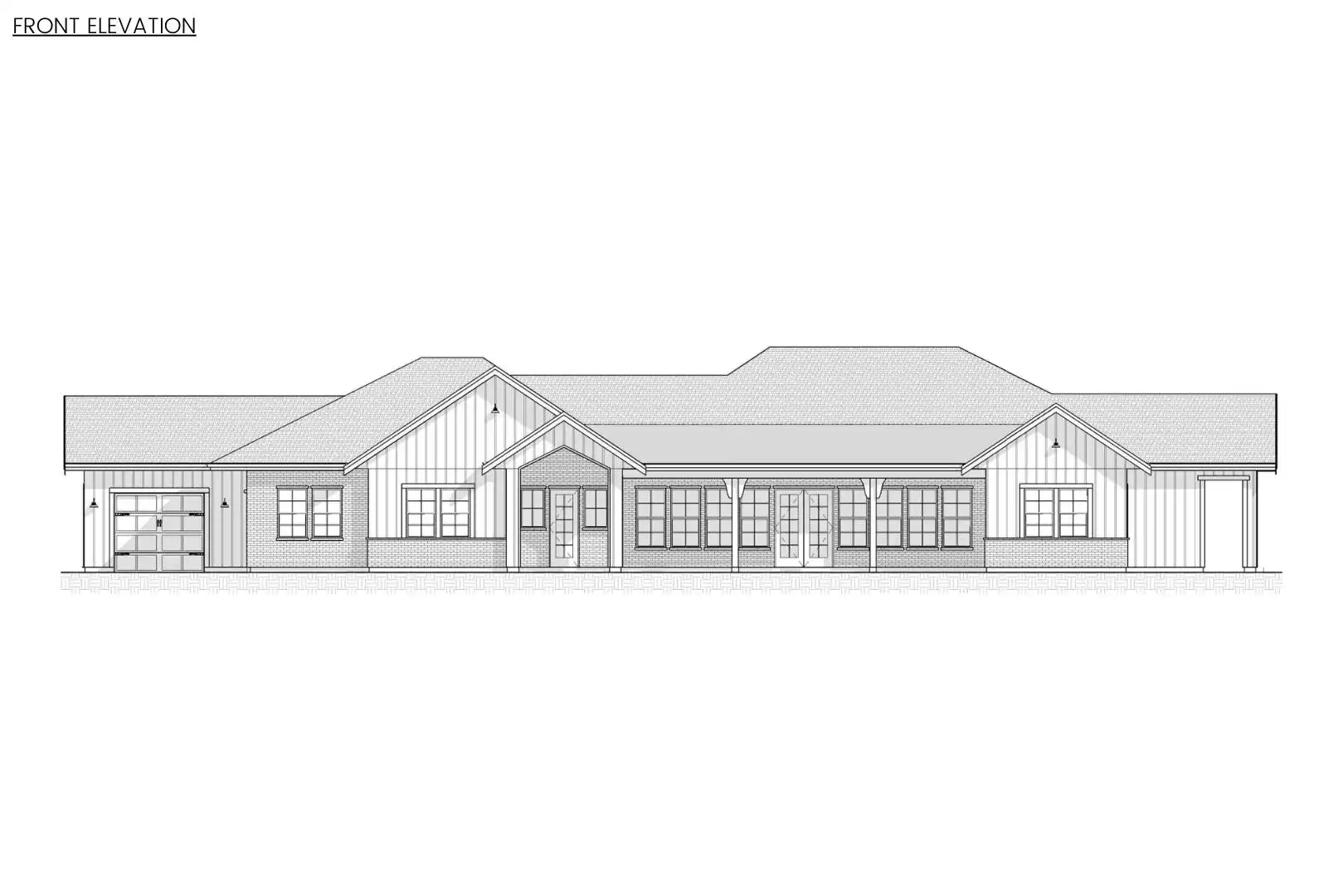

 View All 10 Images | Photographs may reflect modified home
Sq Ft
3,153 FT²
Beds
3
Baths
2.5
Stories
1
Garage
3
Depth
56' 4"
Width
118' 8"

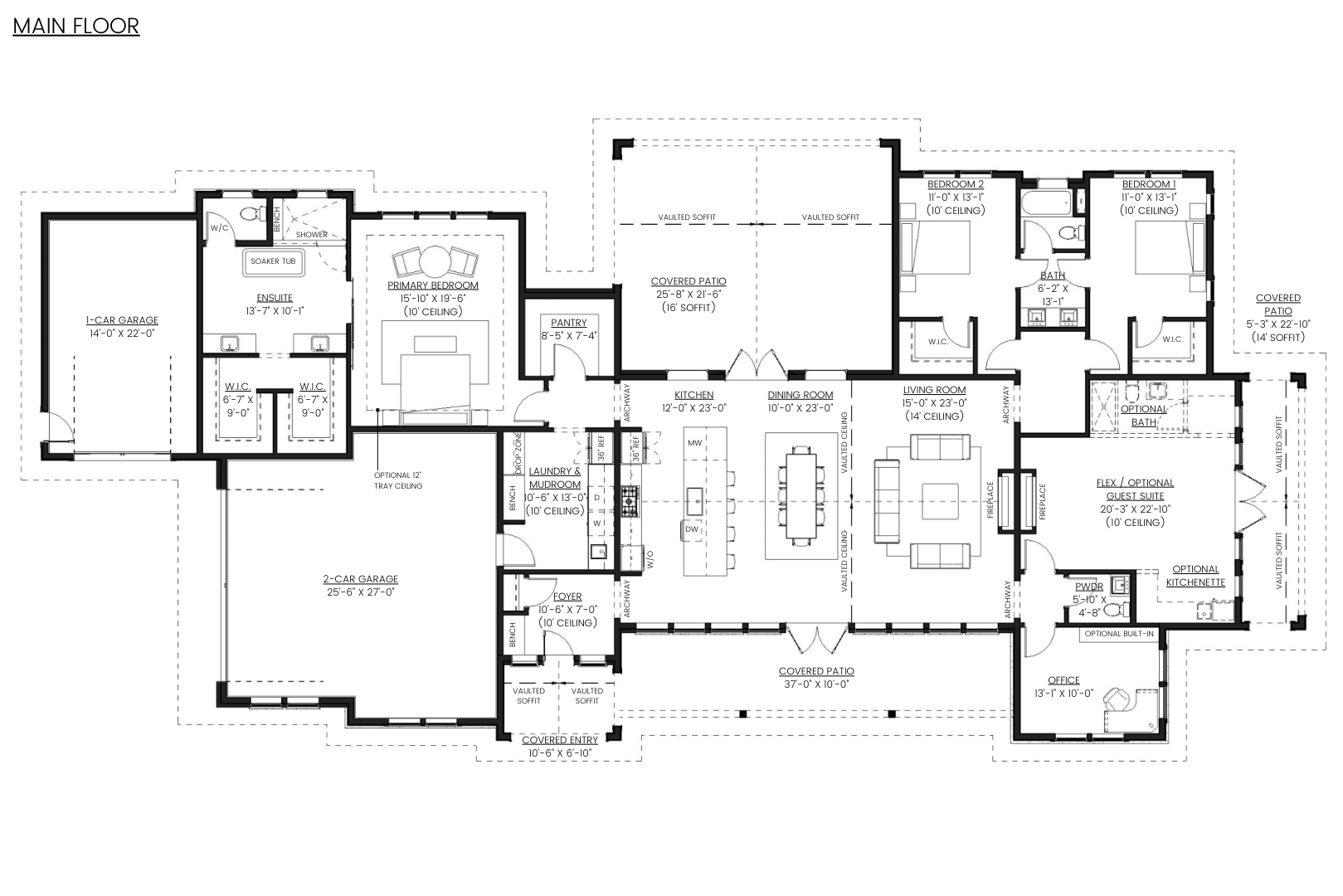

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

House Plan 10646 is a stunning transitional ranch with a lot to love in 3,153 square feet! With three bedrooms and two-and-a-half baths in a split arrangement, this design checks the boxes for the average family. It also offers a flex room with an optional bathroom and kitchenette in case you'd like to have a guest suite! The open-concept great room is the heart of the home that connects everything. It lines the island kitchen, dining area, and living space up in a straight line beneath a vaulted ceiling and connects to covered patios in front and back--talk about a roomy feel! The primary suite on one side has an optional tray ceiling in the bedroom and a lovely five-piece bath with a walk-in closet. Across the house, the other two bedrooms have their own walk-in closets and share a Jack-and-Jill bath. An office and the powder room round out the other main areas, but make sure not to miss the thoughtfully designed foyer, the spacious laundry/mudroom, or the unique garage parking for three with a double bay with side entry and a single bay with front entry!

See All Plan Options


FEATURES & DETAILS

Kitchen features
Kitchen Island
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Outdoor Living Space
Lot Options
Suited for corner lot
Suited for view lot
Additional features
Arches
Fireplace
Foyer
Great Room
Home Office
In-law Suite
Laundry 1st Fl
Mud Room
Open Floor Plan
Rec Room
Vaulted Ceilings
Vaulted Great Room/Living
Vaulted Kitchen
Garage Location
Side
Garage Options
Attached
Front-entry
Side-entry
5,280 Ft
2
Total Structure
3,153 Ft
2
Total Heated
3
Bedrooms
2.5
Bathrooms
3
Garage
1
Stories
118' 8"
Width
56' 4"
Depth
22' 10"
Height
10' 0"
Main Floor Ceiling
13' 9"
Living/Great Room Ceiling
2x6
Framing
Truss
Roof Framing
6/12
Primary Roof Pitch
8/12
Secondary Roof Pitch
3/12
Porch Roof Pitch
Single
Dwelling Number

Unheated Living Space
1,019 Ft
2
Garage
1,108 Ft
2
Deck


Plan Package Options

 Select Plan Package
$1,495
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,495
$1,795
PDF Unlimited Build

Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

$1,795
$2,295
CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

$2,295
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 30-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
