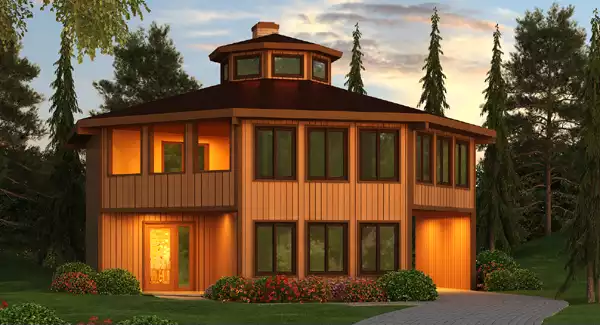

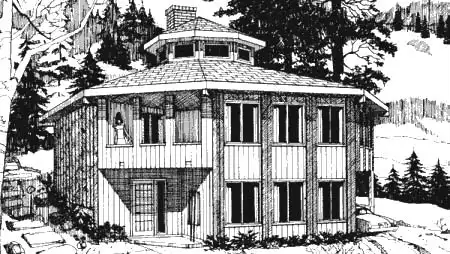

House Plan 5114: YOSEMITE

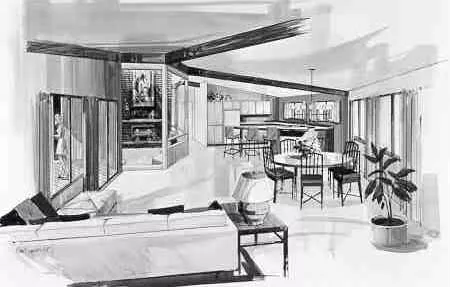

Dramatic sloped ceilings predominate in this unique octagon shaped vacation home. The central fireplace with a conversation pit is the focus of this exciting home. The spacious living and dining areas open to the pit and the kitchen.  Read more >

House Plan Details

Sq. Ft.
2,028
Beds
4
Baths
3.0
Stories
2
Garages
1
Width
40' 6"
Depth
40' 6"

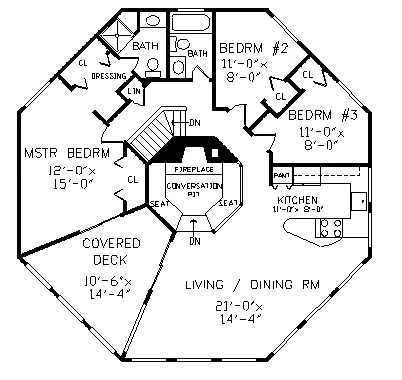

1st Floor
1,203

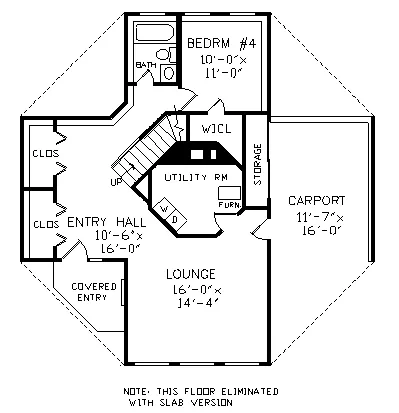

Lower
875
Garage
340
Deck
153
Select Plan Package
PDF Construction Set - Si
$925
Select Foundation Options
$0
Slab Foundation
$0
Optional Add-Ons
Subtotal: $695

PLAN IMAGES

Alternate Part Plan Without Lower Level

Alternate Part Plan Without Lower Level
© copyright by designer

Plan Details

Basic Information
Bedrooms: 4
Bathrooms: 3.0
Garage: 1
Stories: 2
Exterior Style
Cottage
Lake
Modern
Dimensions
Width: 40' 6"
Height: 27' 9"
Depth: 40' 6"
Heated Living Space
Total Sq. Ft: 2,028
1st Floor: 1,203
Lower: 875
Unheated Living Space
Garage: 340
Deck: 153
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: sloped
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Master Bdrm Main Floor
Kitchen Features
Country Kitchen
Peninsula / Eating Bar
Additional Room Features
Fireplace
Foyer
Great Room
Inverted Living
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings
Garage Location
Garage Features
Carport
Lot Features
Suited for narrow lot
Suited for sloping lot
Suited for view lot
Roof Pitch
Primary: 3.5
