Sq Ft
1,285 FT²

Beds
3

Baths
2.5

Stories
2

Garage
2

Depth
36'

Width
21'

On Sale
$1,680.90
$2,155.00

Front View

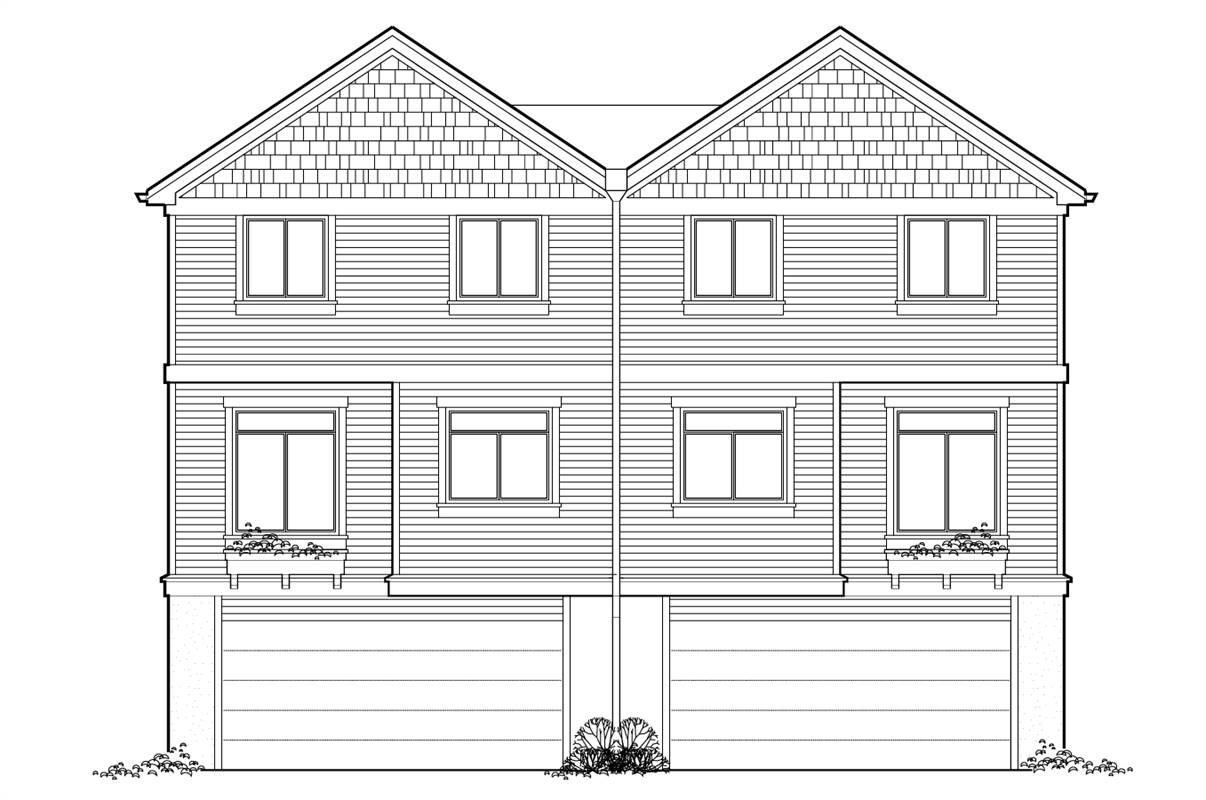

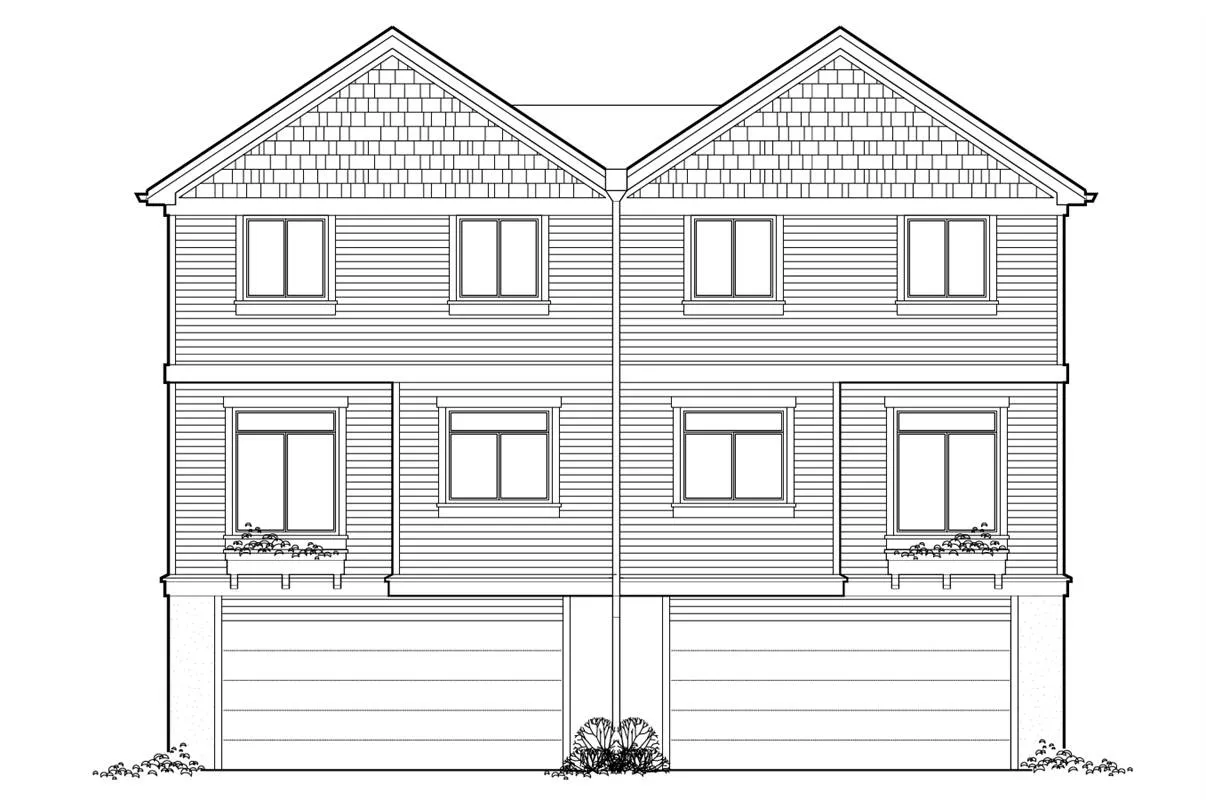

Rear View

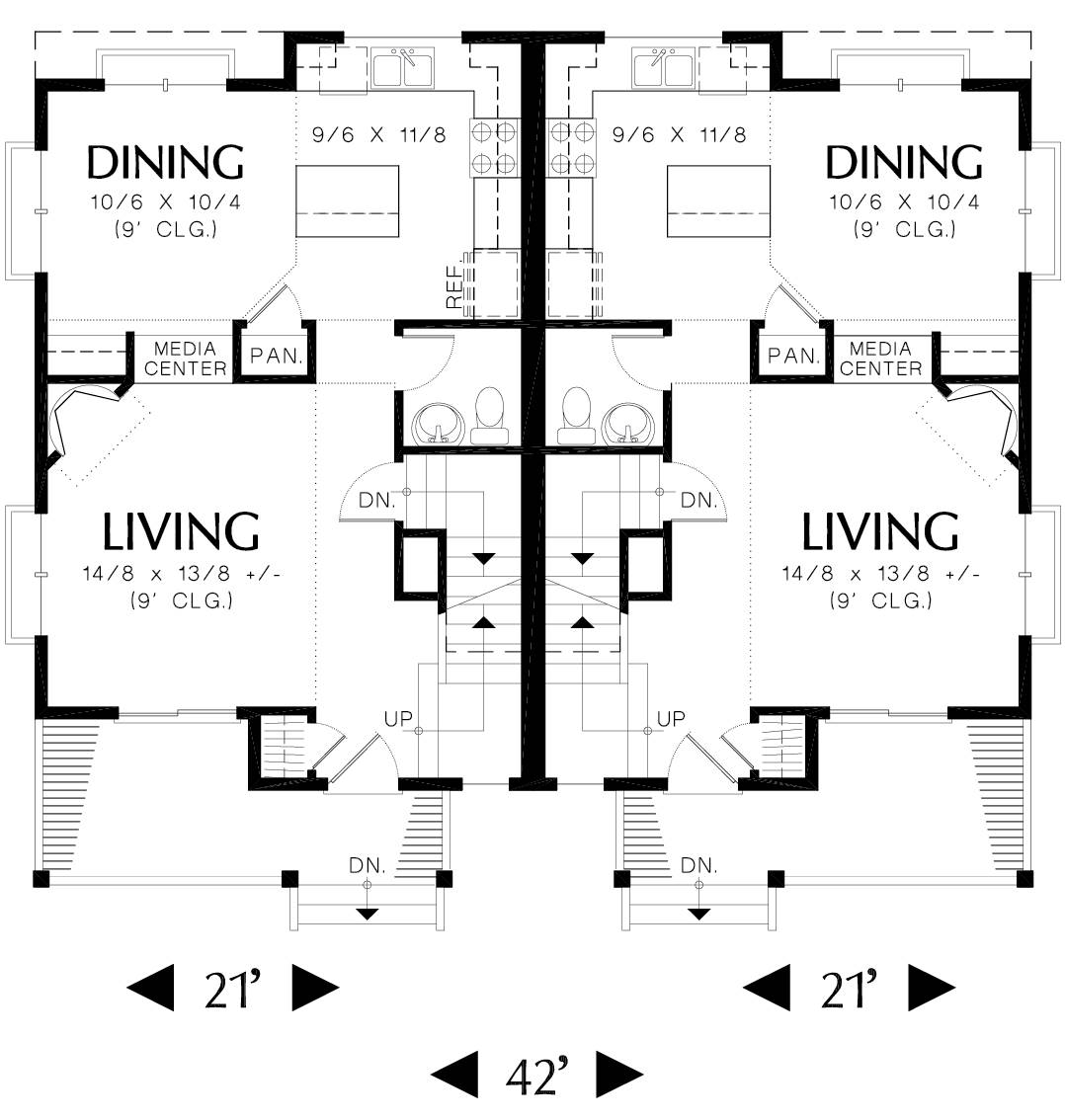

1st Floor

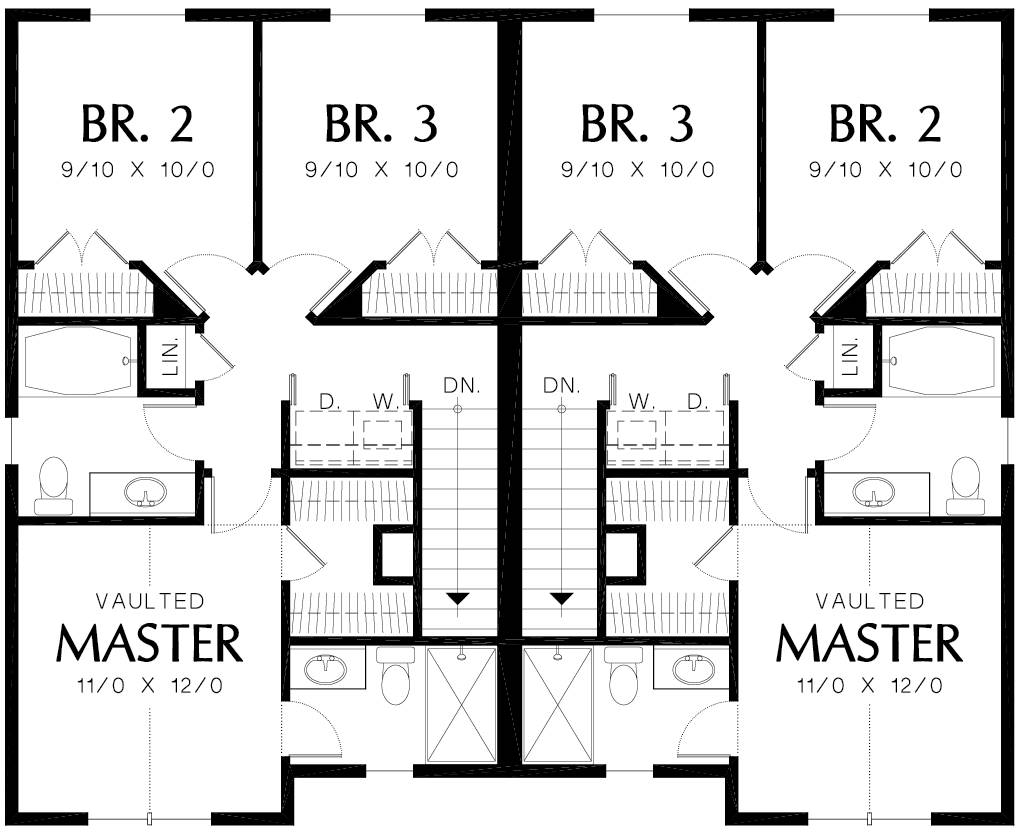

2nd Floor

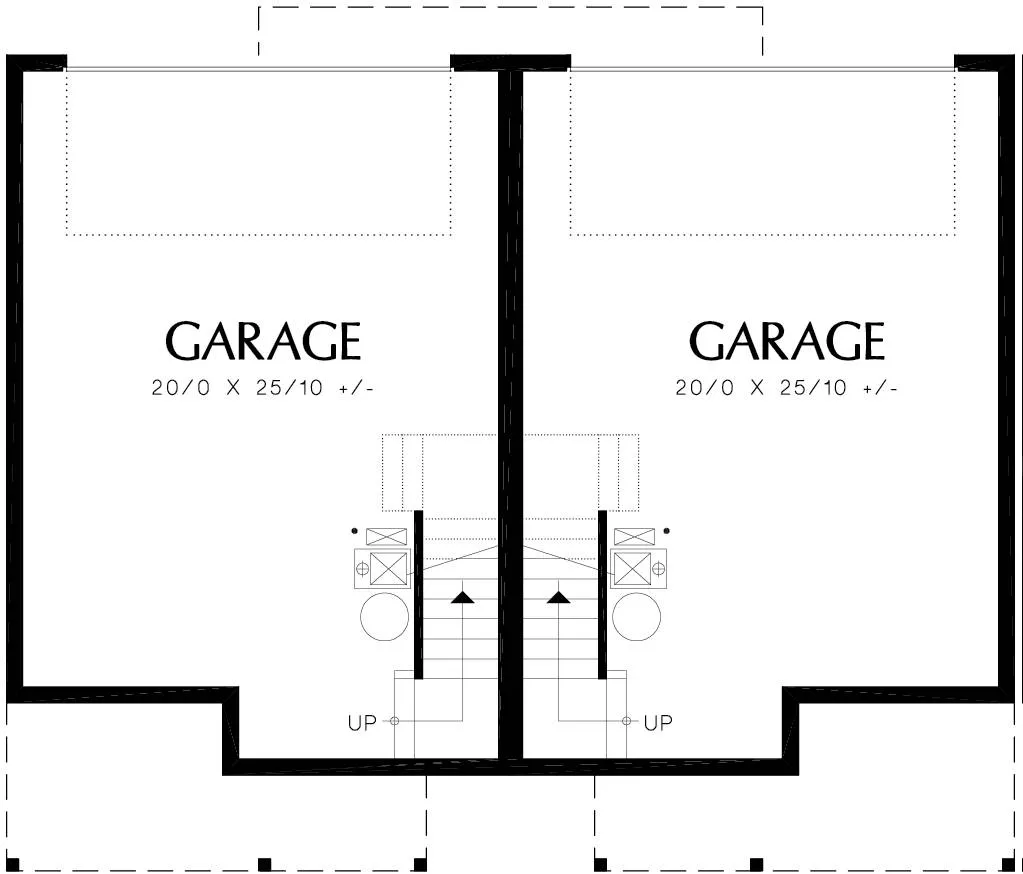

Lower Level Plan

View All 6 Images | Photographs may reflect modified home

Sq Ft

1,285 FT²

From

$1,680.90

Beds

Baths

2.5

Stories

Garage

Depth

36'

Width

21'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

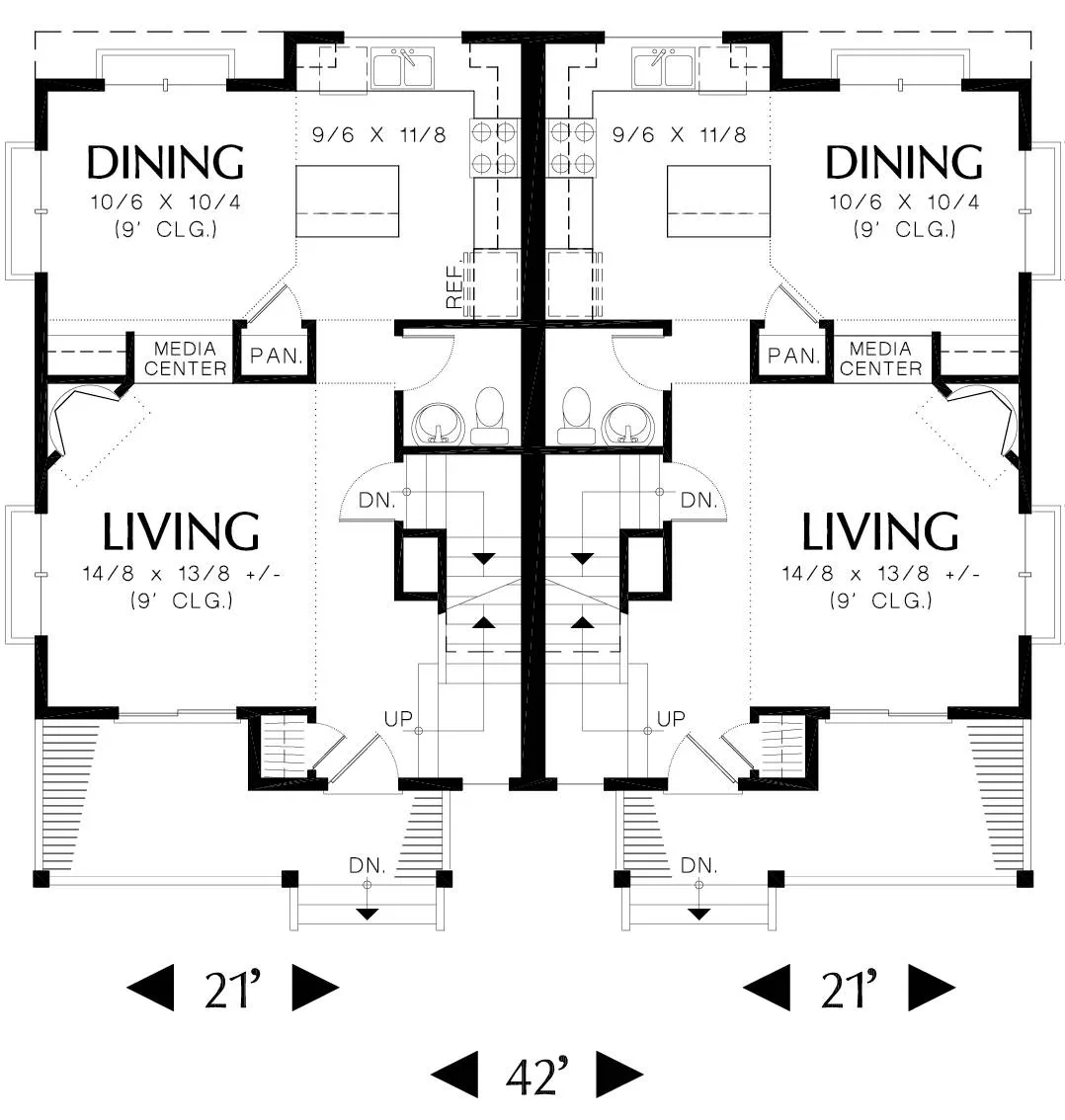

1st Floor

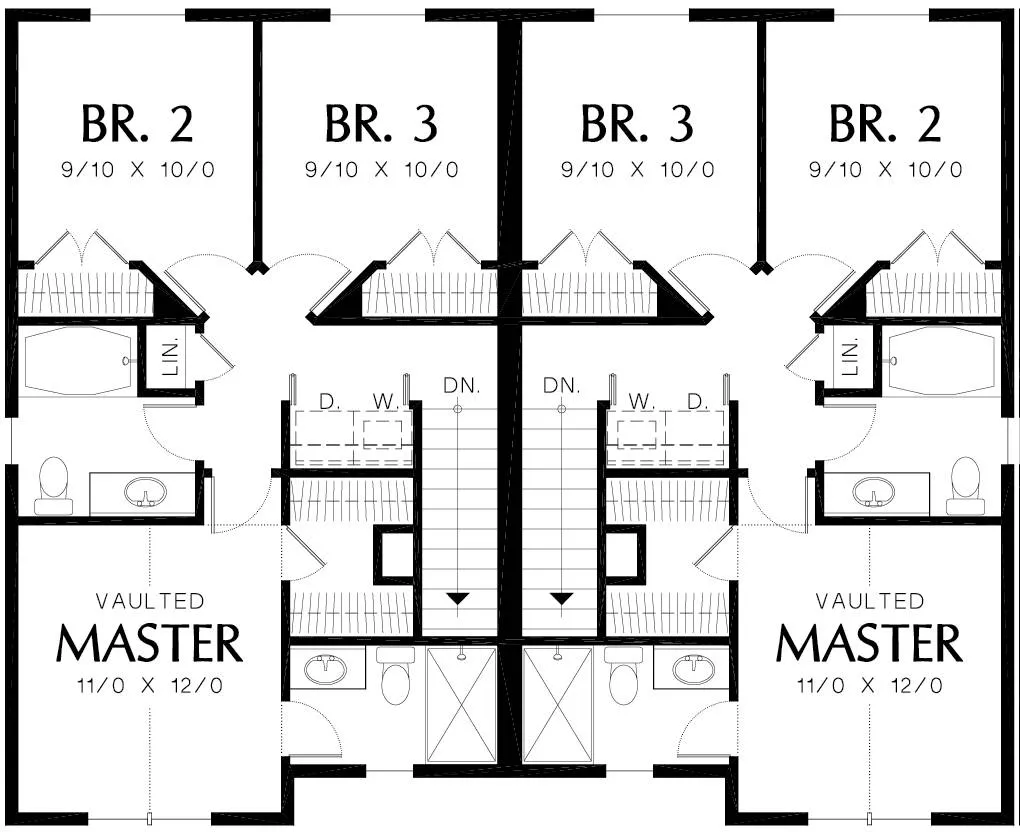

2nd Floor

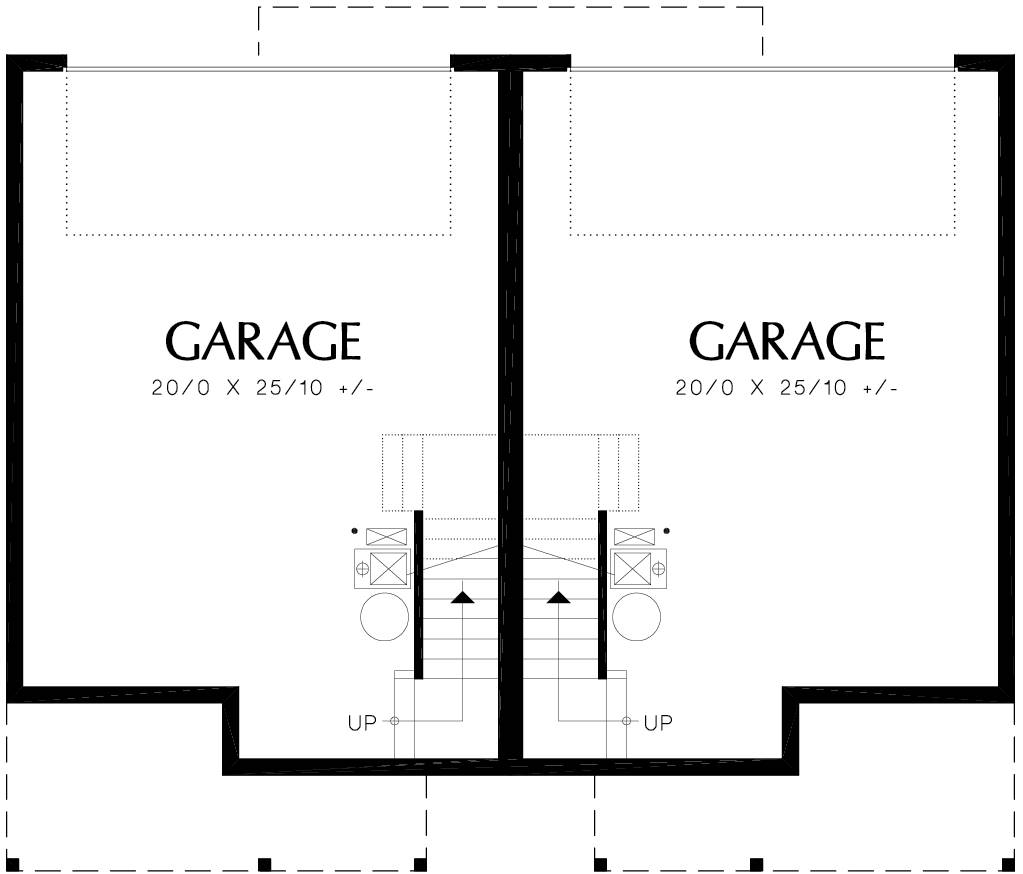

Lower Level Plan

1st Floor

2nd Floor

Lower Level Plan

About This Plan

This charming country duplex house plan is perfect for a sloping lot. The double garage tucks into the hillside and the living space sits above. Reach the main floor via a staircase in the garage or from street-level at the lovely covered porch. The living room has a nine-foot ceiling, corner fireplace, box-bay window and built-in media center. The dining room is also graced by a nine-foot ceiling and has two box-bay windows. The kitchen includes an island and a pantry. Three bedrooms and a laundry alcove are found upstairs. Bedrooms 2 and 3 have the use of a full bath with a hall linen closet. The master salon is vaulted and has a walk-in closet and full bath.

See All Plan Options

FEATURES & DETAILS

Kitchen features

Country Kitchen
Kitchen Island
Walk-in Pantry

Bedroom features

Primary Bdrm Upstairs
Walk-in Closet

Exterior features

Covered Front Porch
Front Porch

Foundation Options

Slab

Lot Options

Suited for sloping lot

Additional features

Fireplace
Foyer
Great Room
Laundry 2nd Fl

Garage Location

Rear

Garage Options

Attached
Rear-entry

2,570 Ft

Total Structure

1,285 Ft

Unit Heated

624 Ft

1st Floor

661 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

21' 0"

Width

36' 0"

Depth

28' 0"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

8/12

Primary Roof Pitch

Duplex

Dwelling Number

None

Bonus Access

Unheated Living Space

603 Ft

Garage

97 Ft

Porch

Exterior Styles

Collections

Affordable

Builders

PDFs Fast!

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $1,681

PDF Single Build

~~$2,155~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,681

Sale: $1,915

5 Printed Sets + PDF

~~$2,455~~

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

Sale: $1,915

Sale: $3,362

CAD + PDF Single Build

~~$4,310~~

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

Sale: $3,362

Need To Reverse Plan? (Optional)

$250

Readable Reverse

Reverse house plans with readable text and dimensions

$250

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractors, and/or local engineers.
