House Plan 1489: Woodwinds

This rustic one-bedroom chalet or cabin may be just what you envision for your lake property. Inside, the kitchenette has room for a table as it flows into the living room with woodstove. The sleeping area could accommodate two beds or two bunk beds.  Read more >

House Plan Details

Sq. Ft.
320
Beds
1
Baths
1.0
Stories
1
Garages
0
Width
16' 0"
Depth
20' 0"
1st Floor
320
Select Plan Package
5 sets
$609
Select Foundation Options
$0
Screw Pile (included)
$0
Optional Add-Ons
Subtotal: $609

PLAN IMAGES

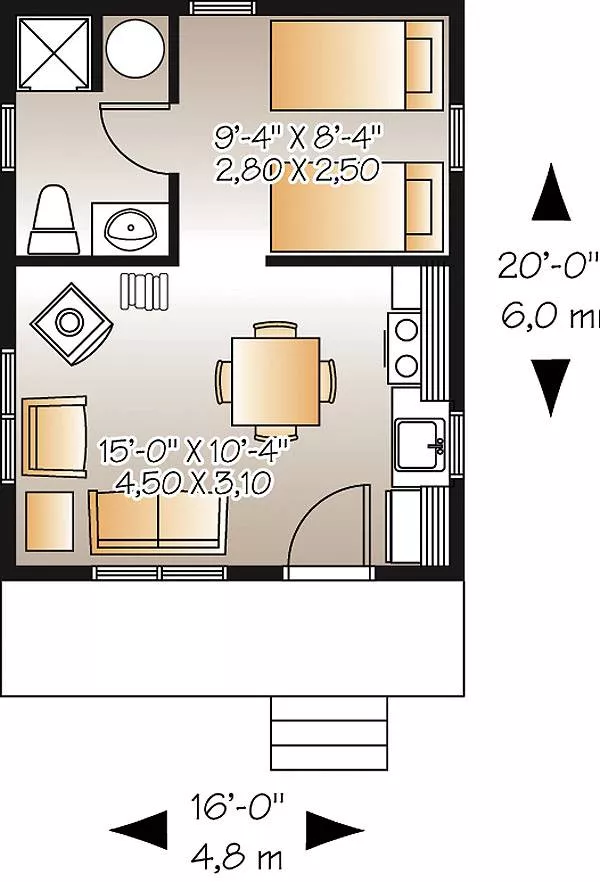

First level

First level
© copyright by designer

Plan Details

Basic Information
Bedrooms: 1
Bathrooms: 1.0
Garage: 0
Stories: 1
Exterior Style
Cottage
Country
Lake
Dimensions
Width: 16' 0"
Height: 14' 1"
Depth: 20' 0"
Heated Living Space
Total Sq. Ft: 320
1st Floor: 320
Unheated Living Space
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 8'-2"
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Kitchen Features
Additional Room Features
Garage Location
None
Garage Features
None
Lot Features
Suited for narrow lot
Roof Pitch
Primary: 5
Secondary: 6
