Sq Ft
1,664 FT²

Beds
3

Baths
2.5

Stories
2

Garage
2

Depth
40' 2"

Width
47' 10"

From
$1,050.00

Front Elevation Rendering

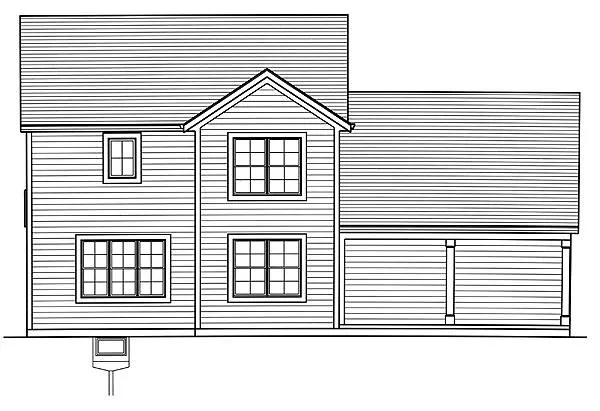

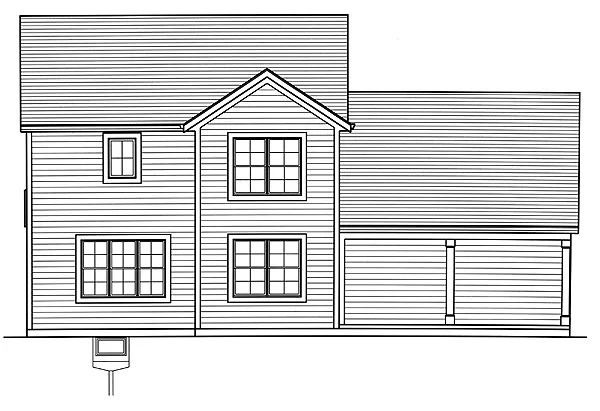

Rear Elevation

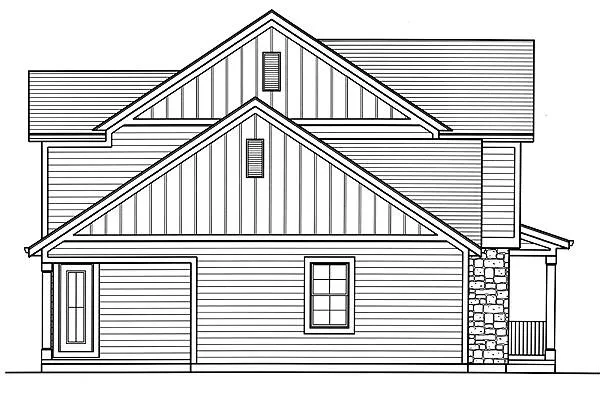

Left Side Elevation

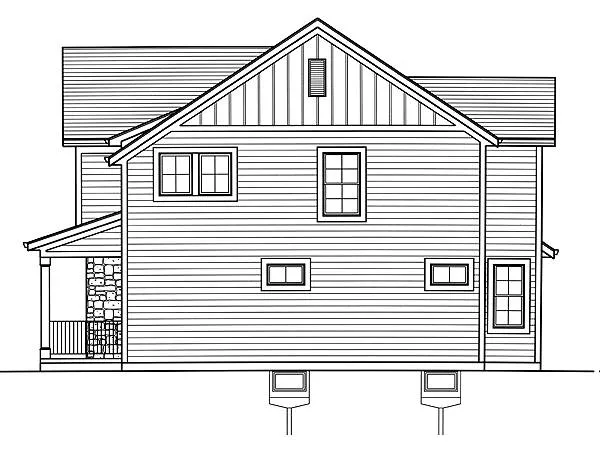

Right Side Elevation

View All 7 Images | Photographs may reflect modified home

Sq Ft

1,664 FT²

From

$1,050.00

Beds

Baths

2.5

Stories

Garage

Depth

40' 2"

Width

47' 10"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

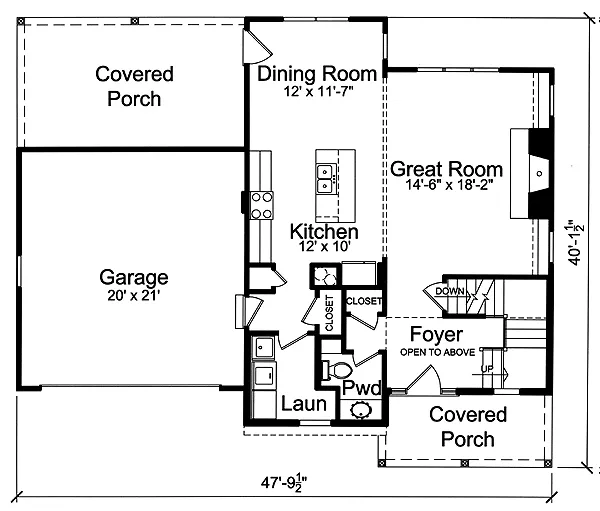

First Floor Plan

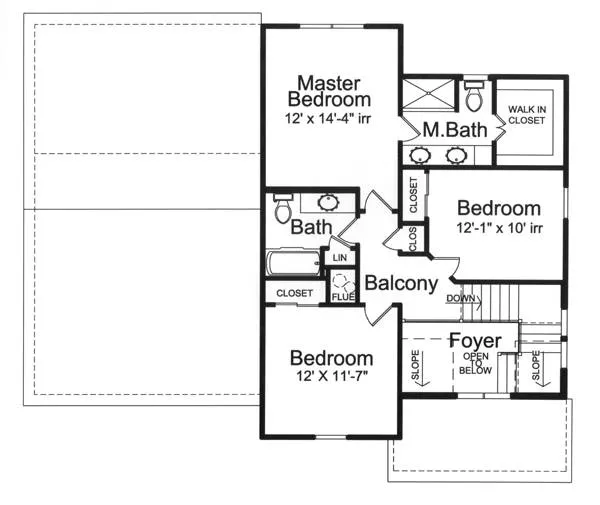

Second Floor Plan

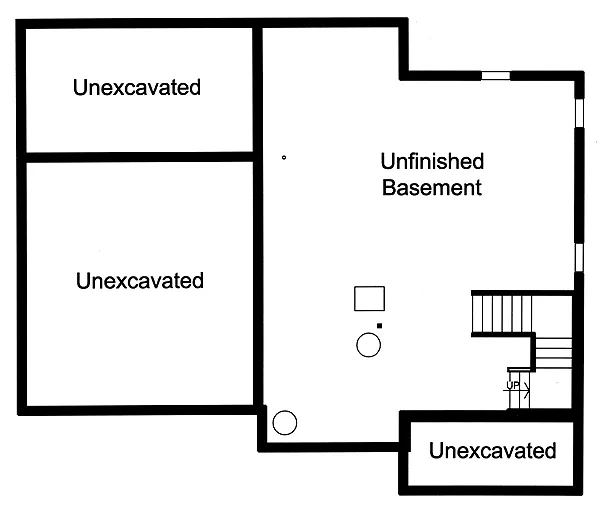

Foundation Plan

First Floor Plan

Second Floor Plan

Foundation Plan

About This Plan

1,664 square feet has this three-bedroom, two-story country home plan offering an open concept great room, kitchen with island, and dining area with access to a rear covered porch. A warm and inviting welcome is extended via the covered front porch, which decorates the exterior. 8' ceiling heights and an 8:12 pitched roof offer price saving features. U shaped stairs lead to a second-floor balcony that overlooks the foyer and leads to a master suite that enjoys a double bowl vanity, walk-in shower and large walk-in closet. This home is drawn with a full basement for added storage or can be finished to provide additional square footage if desired.

FEATURES & DETAILS

Kitchen features

Country Kitchen
Kitchen Island

Bedroom features

Double Vanity Sink
Guest Suite
Primary Bdrm Upstairs
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Basement

Additional features

2 Story Volume
Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Loft / Balcony
Open Floor Plan
Unfinished Space

Garage Location

Front

Garage Options

Front-entry

1,664 Ft

Total Heated

900 Ft

1st Floor

764 Ft

2nd Floor

99 Ft

Front Porch

Bedrooms

2.5

Bathrooms

Garage

Stories

47' 10"

Width

40' 2"

Depth

28' 0"

Height

8' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Truss

Roof Framing

8:12

Primary Roof Pitch

4:12

Secondary Roof Pitch

Single

Dwelling Number

Unheated Living Space

425 Ft

Garage

233 Ft

Patio

Exterior Styles

Bungalow

Country

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$820

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$820

$1,050

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,050

$1,100

5 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,100

$1,130

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$1,130

$1,775

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,775

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
