HOUSE PLANS
START AT $2,500
SQ FT
4,735
BEDS
5
BATHS
5
STORIES
2
CARS
3
WIDTH
94'
DEPTH
90'
© copyright by designer
Photographs may reflect modified home | View all 28 images
SQ FT
4,735
BEDS
5
BATHS
5
STORIES
2
CARS
3



Winthrop Ridge Walkout Basement Cottage Style House Plan 9871

Welcome to the Winthrop Ridge, our new 5 bedroom, 5 bath cottage style plan.  4,735 sf of luxury, this beautiful home is designed with your family in mind.  The exterior curb appeal of this lovely home invites you to come in.  Read more >
Click to Zoom In on Floor Plan

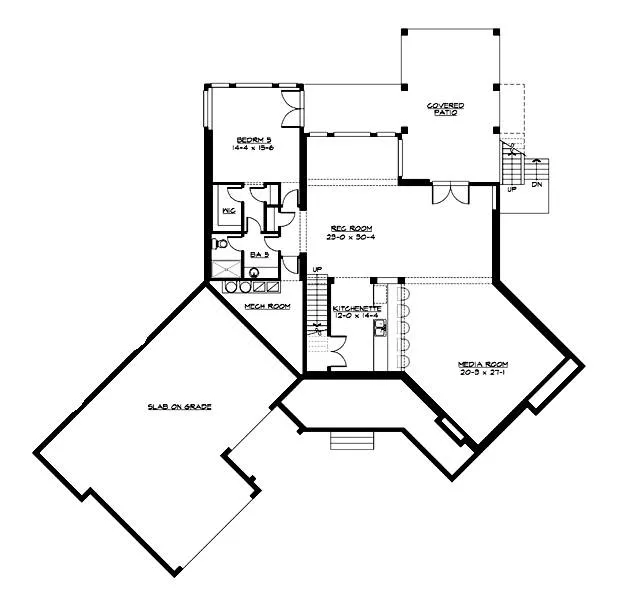

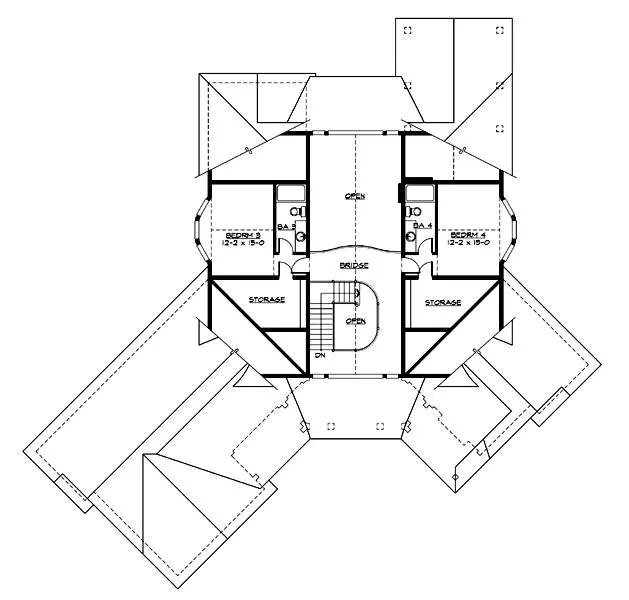

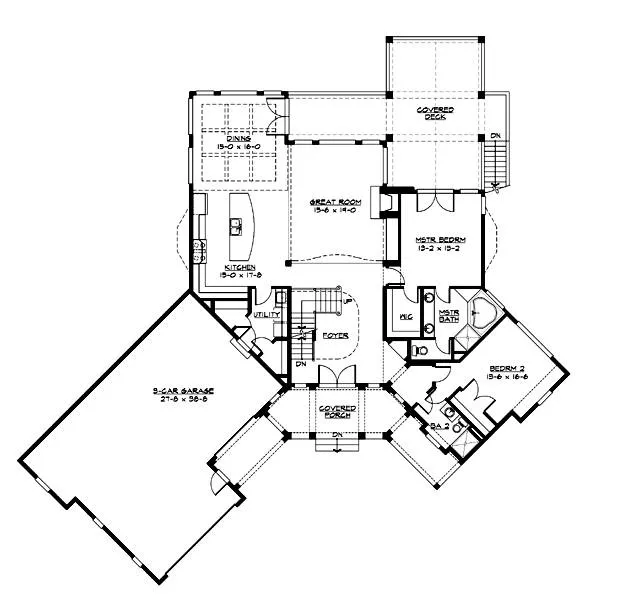

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$2,500
CAD Single Use

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$4,200
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$300
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
IMPORTANT NOTE: Due to state regulations, this home is not available for purchase in the State of Washington. Contact us for more information.
Features:
View All Plan Features

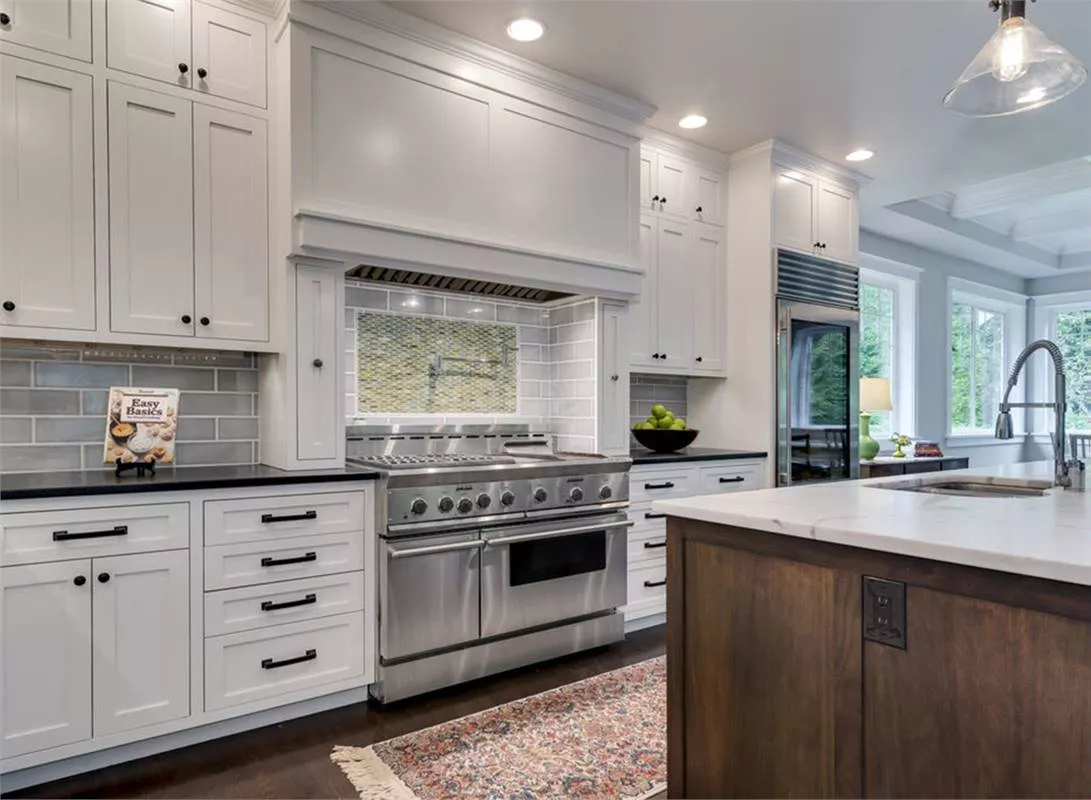

Kitchen features

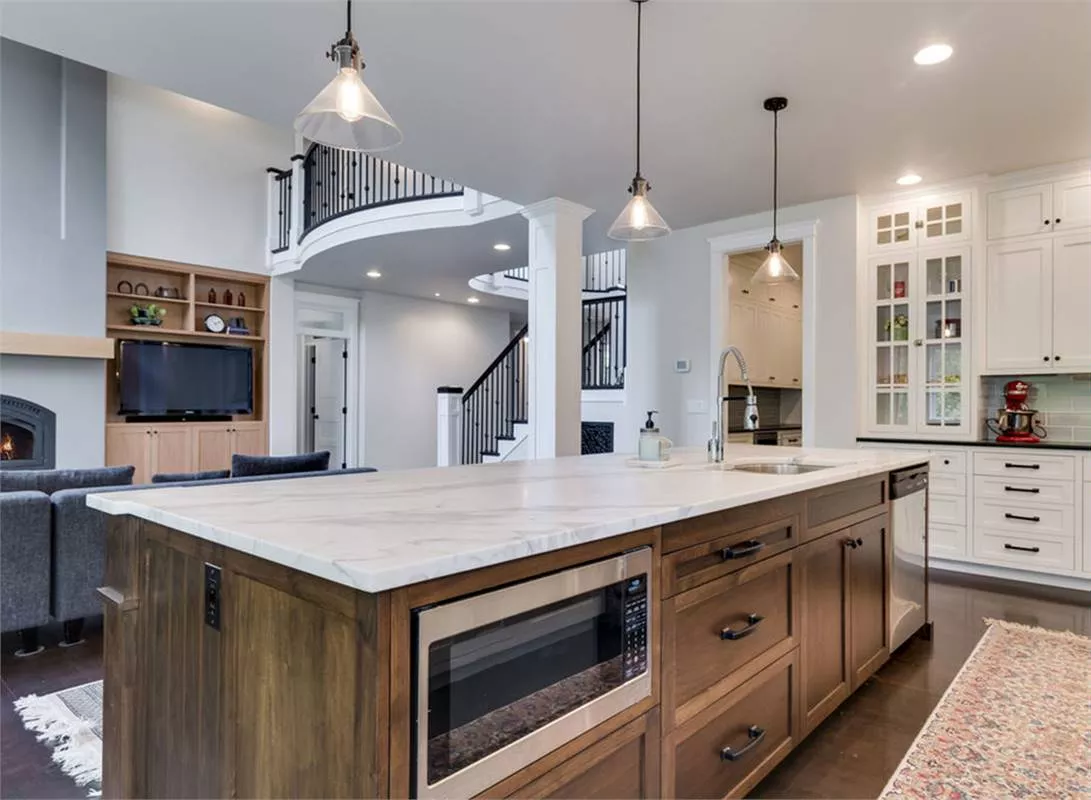

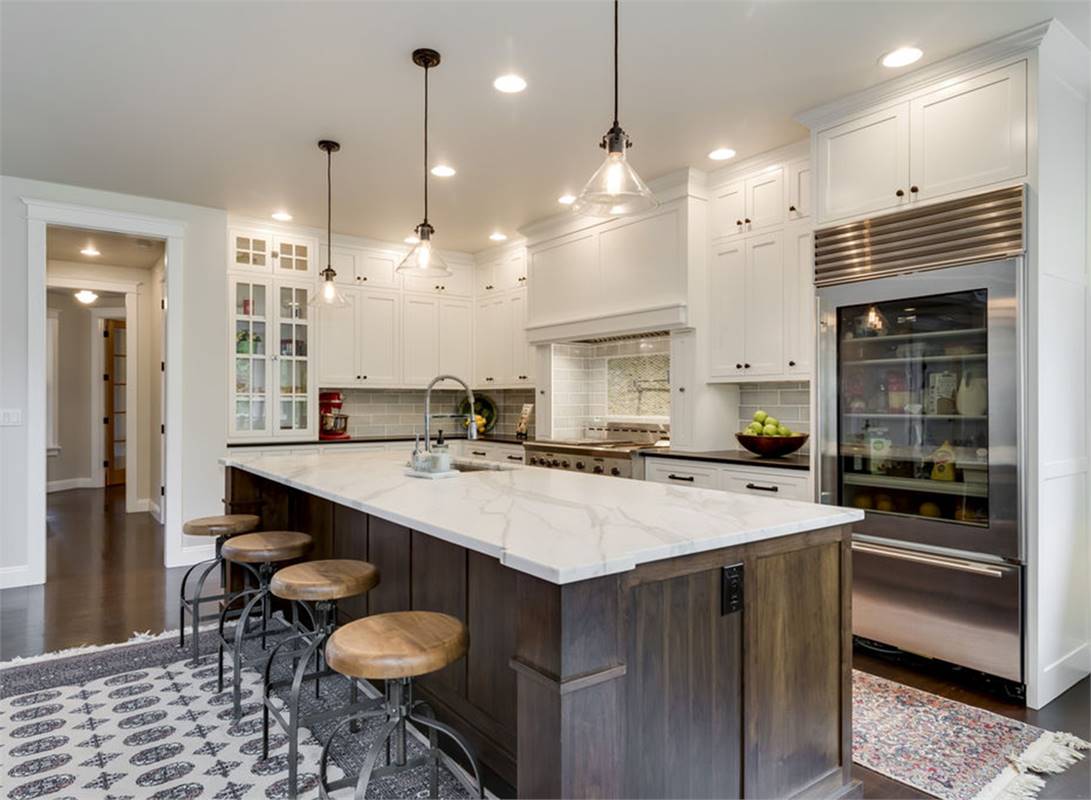

Kitchen Island
L-Shaped
Bedroom features

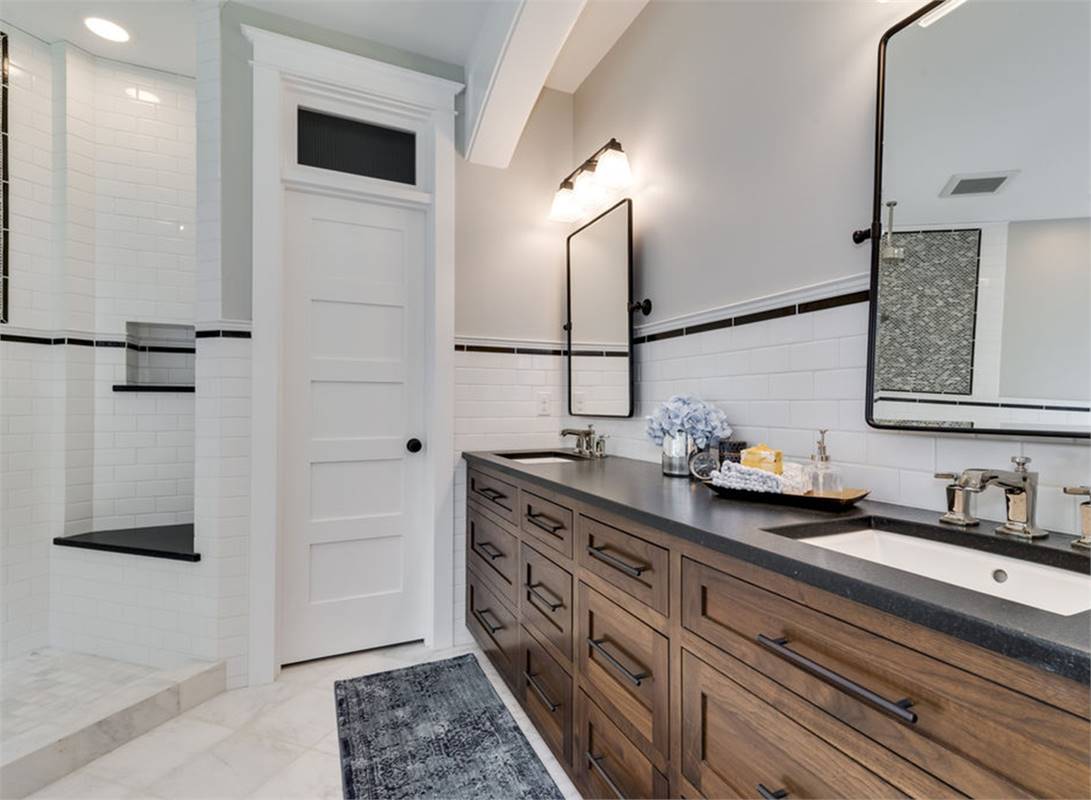

Double Vanity Sink
Guest Suite
Master Bdrm Main Floor

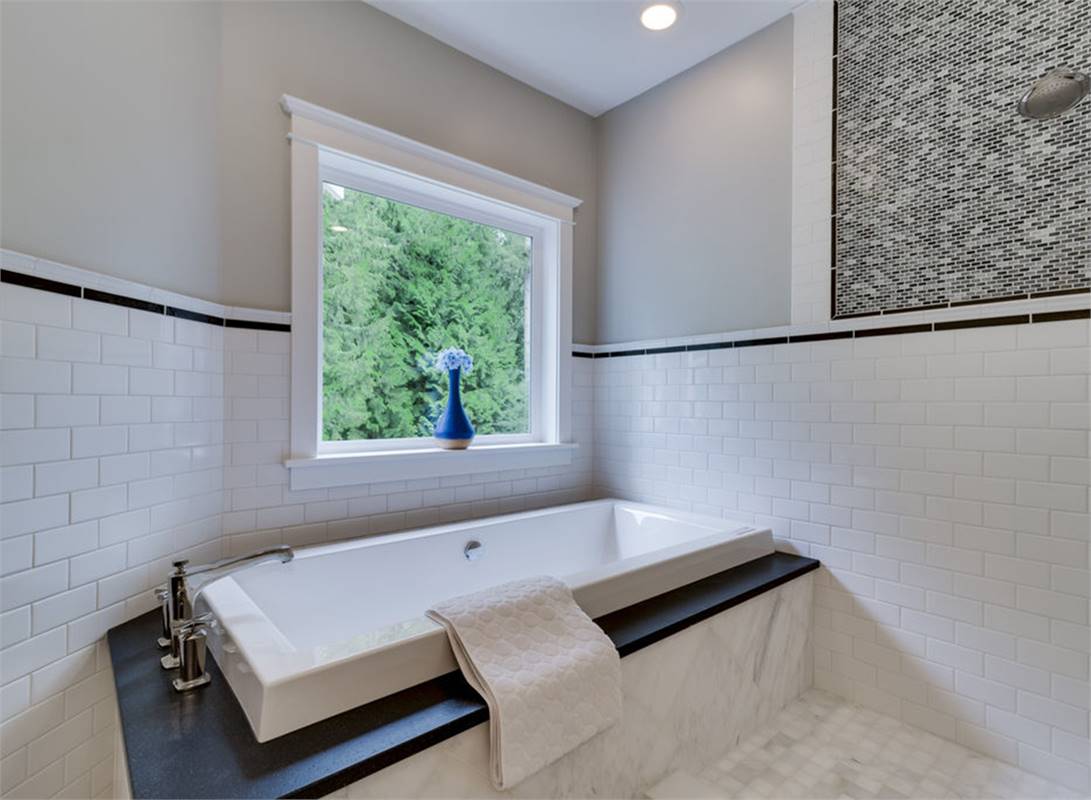

Separate Tub and Shower
Walk-in Closet
Additional features

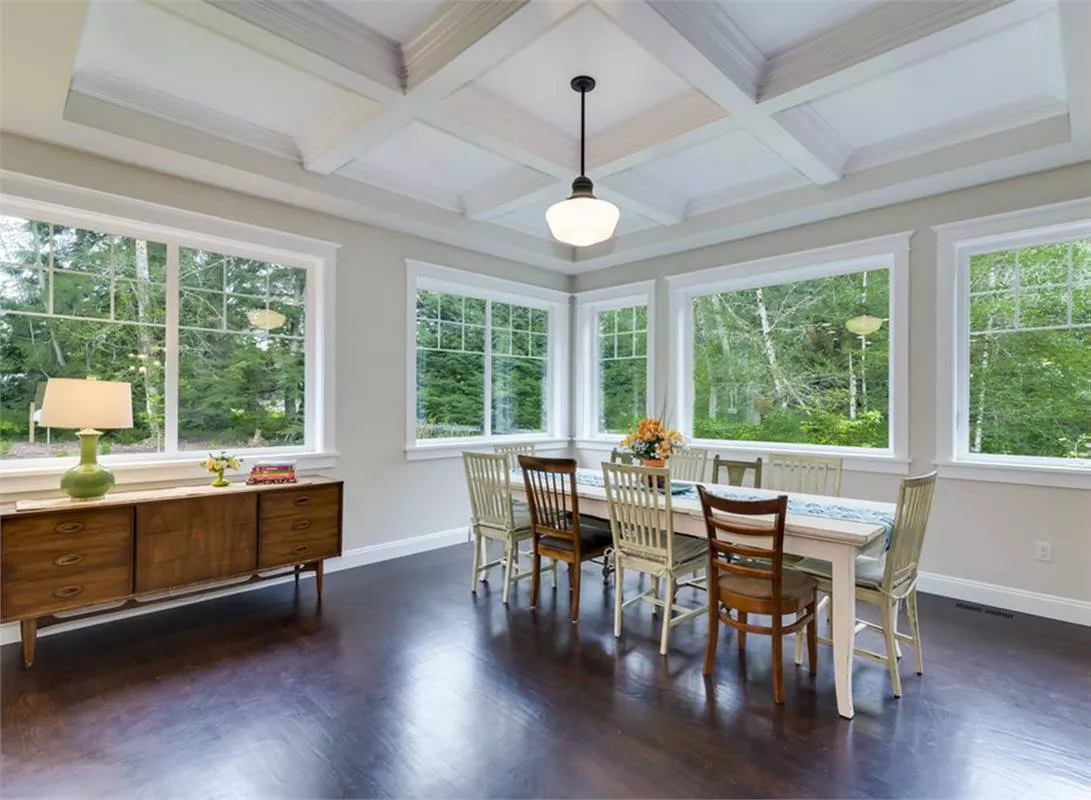

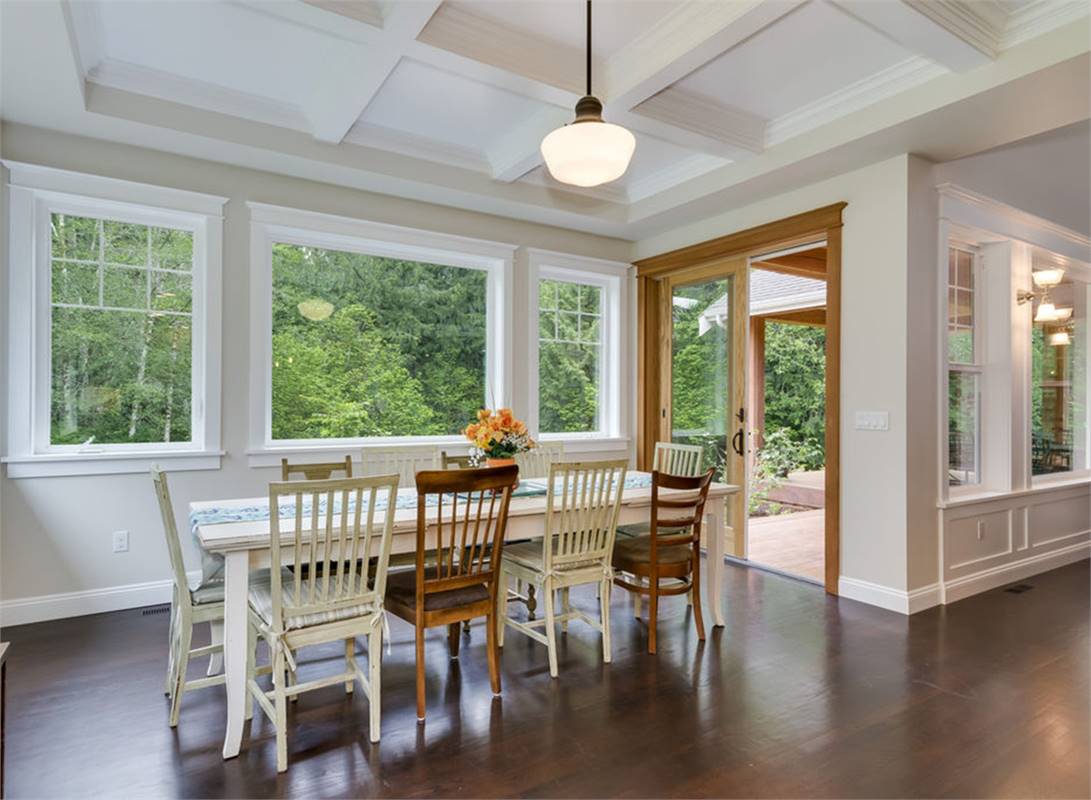

Dining Room
Fireplace

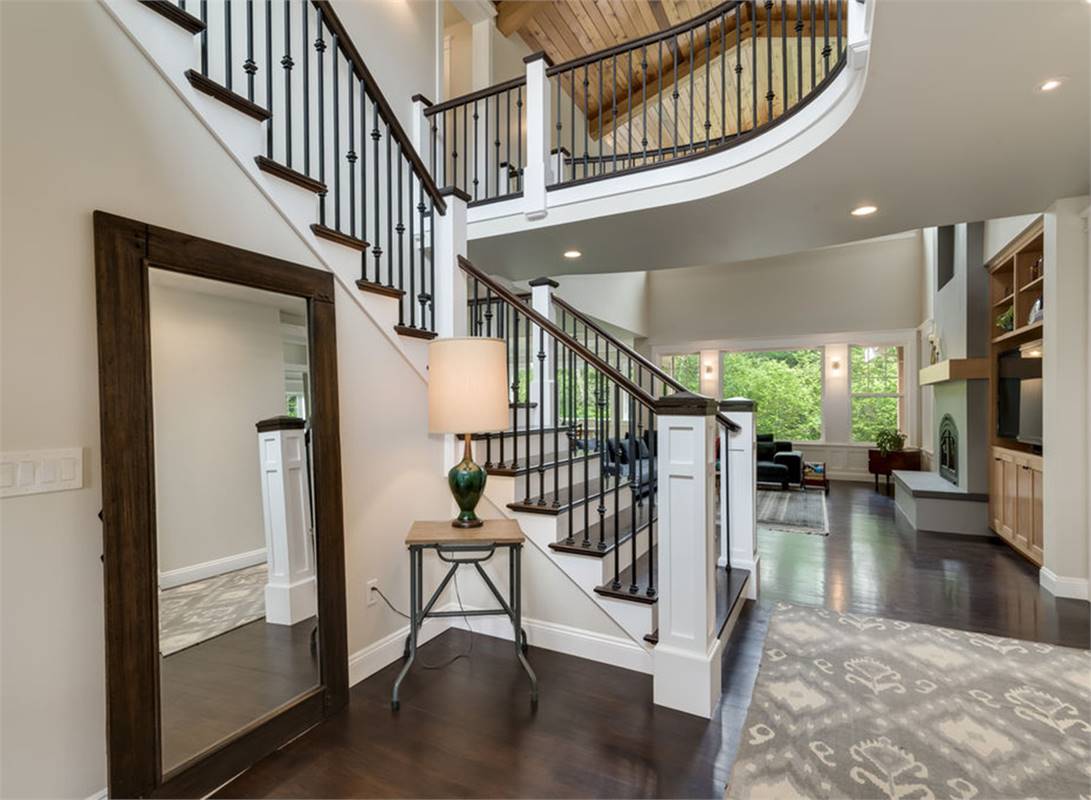

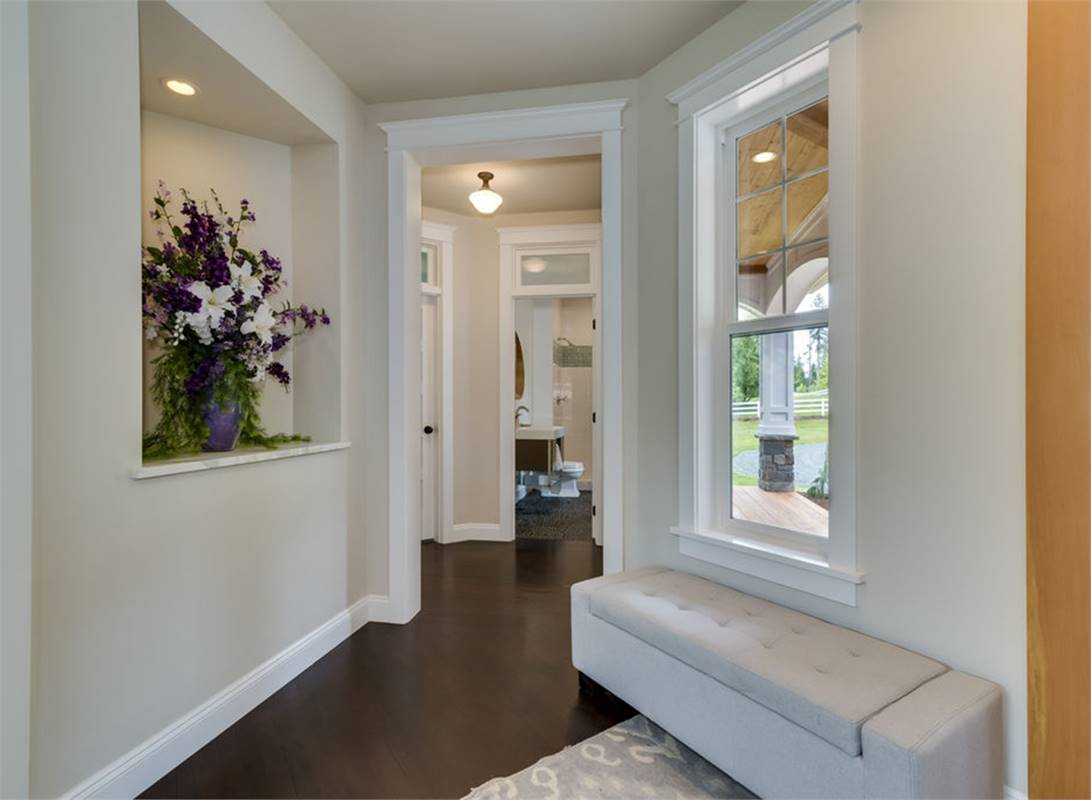

Foyer

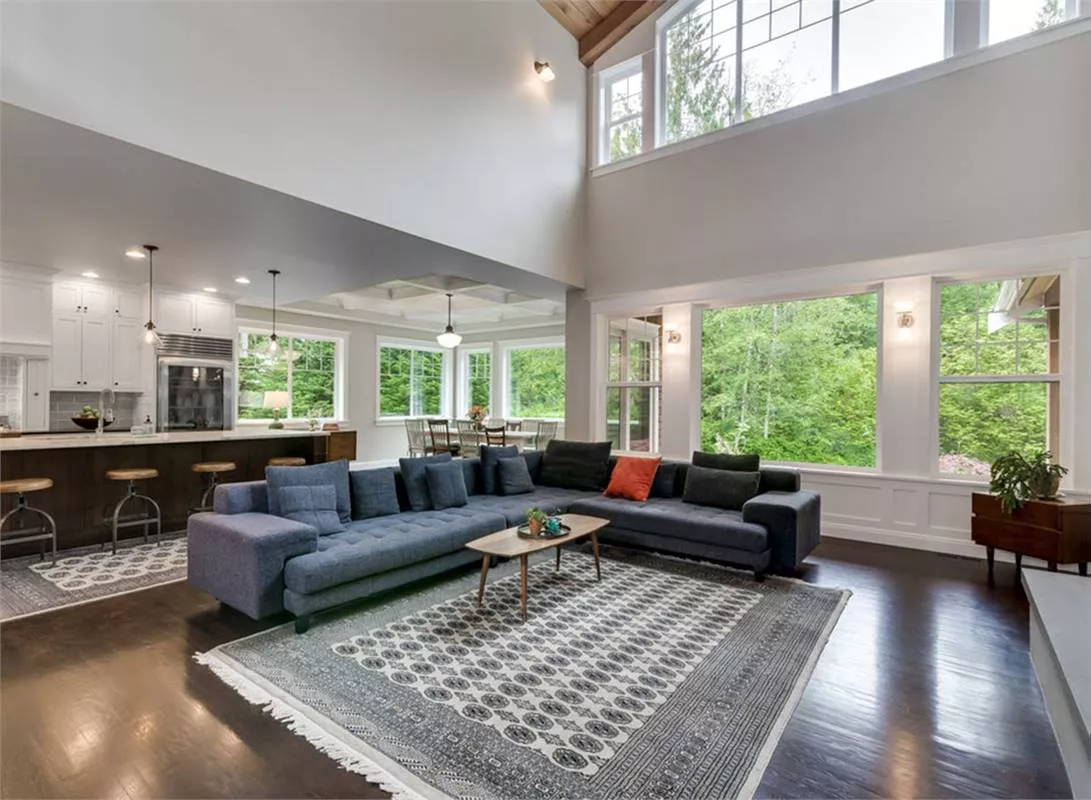

Great Room
Laundry 1st Fl
Library/Media Rm

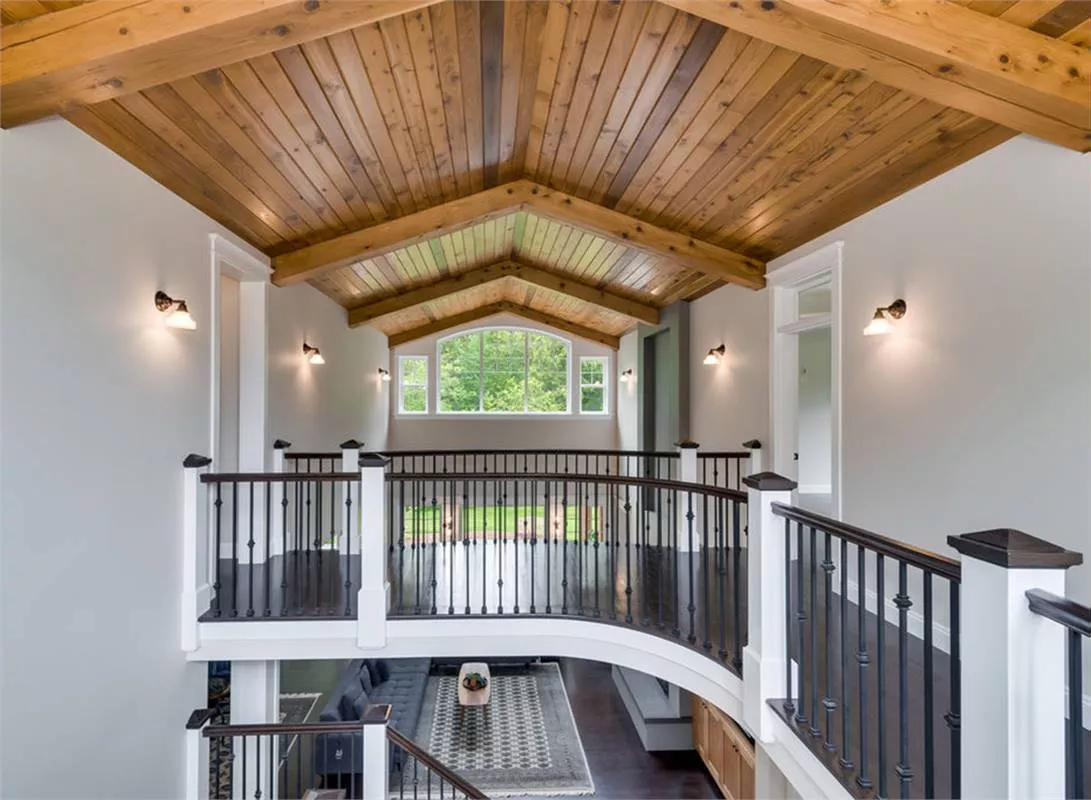

Loft / Balcony
Rec Room
Storage Space
Vaulted Great Room/Living
Exterior features

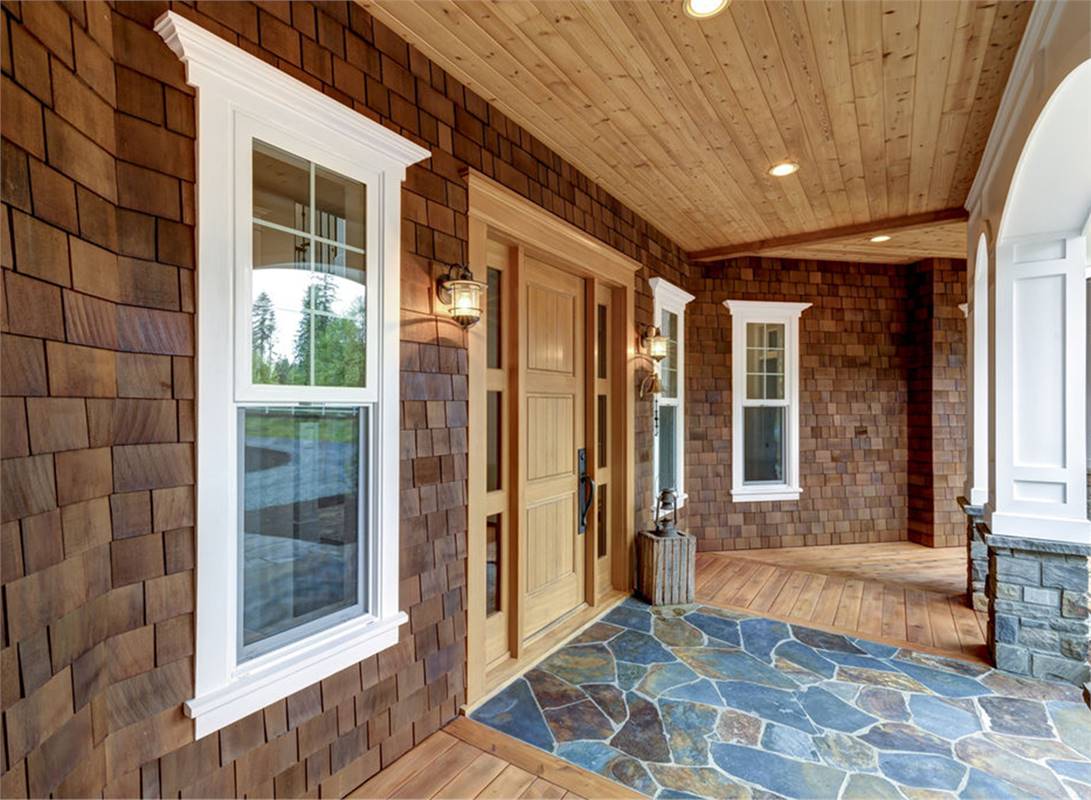

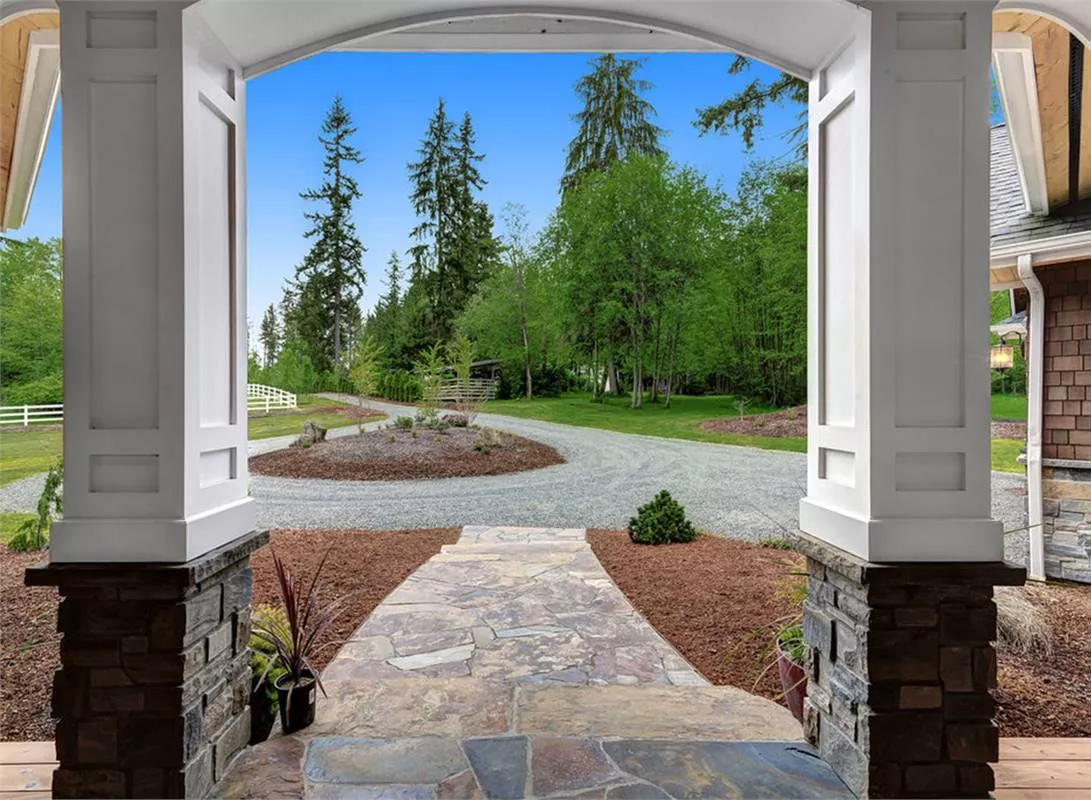

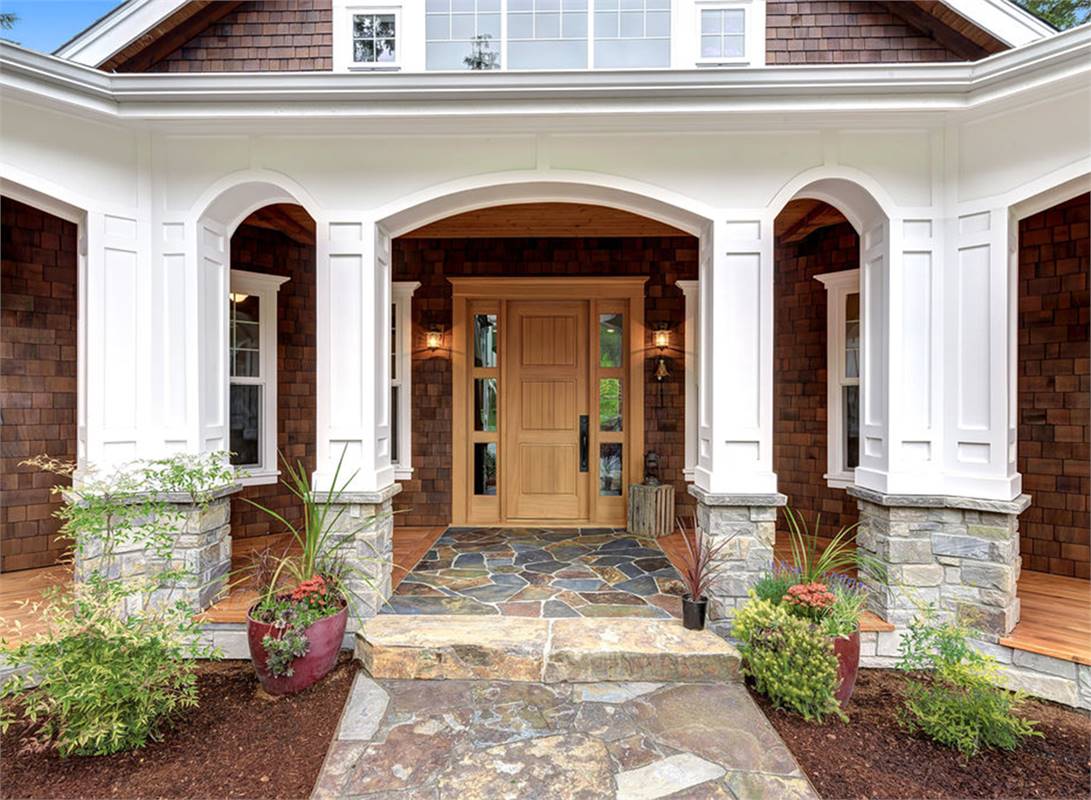

Covered Front Porch

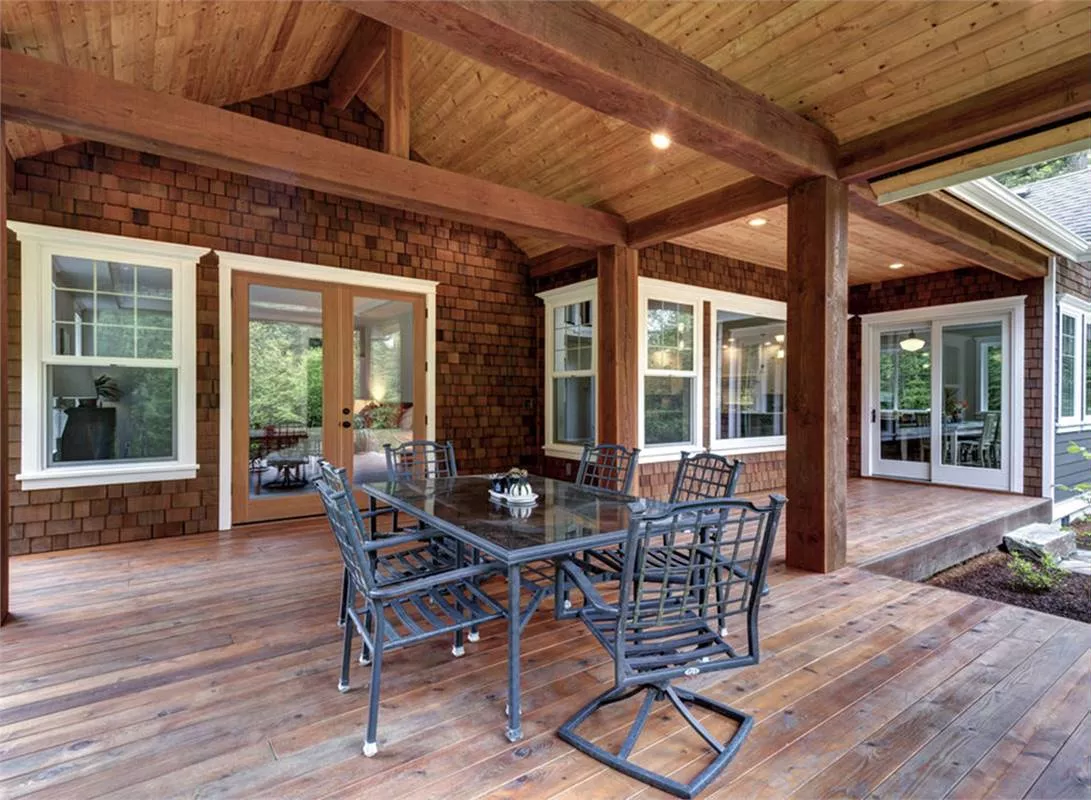

Covered Rear Porch
Deck
Garage Location
Front
Garage Options
Attached
Front-entry
Tandem
Lot Options
Suited for sloping lot

Hide Plan Features
Details:
View All Plan Details
5,760 Ft
2
Total Structure:
4,735 Ft
2
Total Heated:
2,065 Ft
2
1st Floor:
750 Ft
2
2nd Floor:
1,920 Ft
2
Lower Floor:
5
Bedrooms:
5
Bathrooms:
3
Garage:
2
Stories:
94' 0"
Width:
90' 0"
Depth:
26' 4"
Height:
9
Main Floor Ceiling:
9
Upper Floor Ceiling:
2x6
Framing:
Truss
Roof Framing:
8:12
Primary Roof Pitch:
4:12
Secondary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
1,025 Ft
2
Garage:
Exterior Styles
Cottage
Craftsman
Collections
Open Floor Plan
Outdoor Living

Hide Plan Details
Best Price Guarantee

If you find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% Satisfaction Guarantee

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
