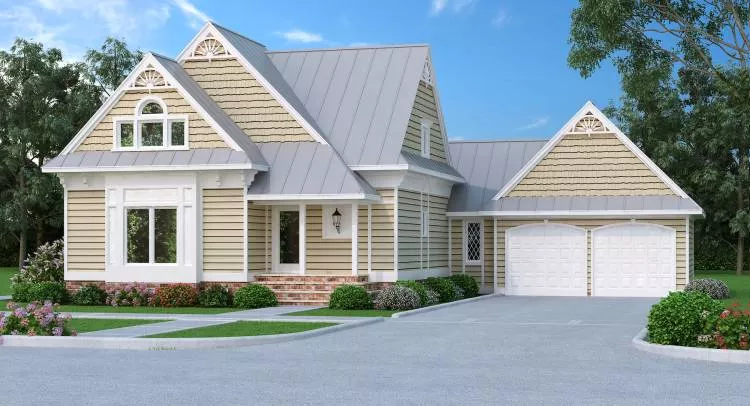

House Plan 9397: Winchester Abby - 2008

This period style 4 bedroom, 3 bath home offers lots of style and charm but in a rather compact footprint. The home is a super energy efficient designed with 2x6 exterior walls, modified raised roof plate to accommodate ceiling insulation, insulated doors and windows and a host of other features that will drastically cut your utility bills.  Read more >

House Plan Details

Sq. Ft.
2,020
Beds
4
Baths
3.0
Stories
2
Garages
2
Width
62' 0"
Depth
52' 0"
1st Floor
1,182
2nd Floor
838
Garage
530
Storage
66
Select Plan Package
PDF Construction Set - 1
$950
Select Foundation Options
$100
Optional Basement Foundat...
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

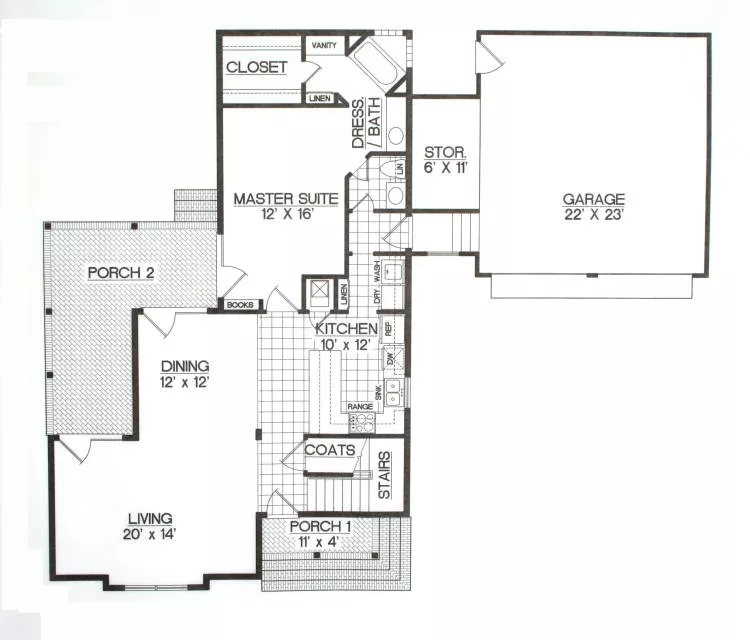

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 4
Bathrooms: 3.0
Garage: 2
Stories: 2
Exterior Style
Country
Farm House
Victorian
Dimensions
Width: 62' 0"
Height: 35' 0"
Depth: 52' 0"
Heated Living Space
Total Sq. Ft: 2,020
1st Floor: 1,182
2nd Floor: 838
Unheated Living Space
Garage: 530
Storage: 66
Porch: 268
Ceiling
Upper Ceiling Ft: 8
Main Ceiling Ft: 8
Framing Information
Framing: 2x6
Roof Framing: Stick
Bedroom Features
Master Bdrm Main Floor
Split Bedrooms
Walk-in Closet
Kitchen Features
Country Kitchen
Additional Room Features
Dining Room
Foyer
Great Room
Laundry 1st Fl
Open Floor Plan
Storage Space
Garage Location
Side
Garage Features
Attached
Oversized
Lot Features
Suited for narrow lot
Suited for view lot
Roof Pitch
Primary: 12:12
