Sq Ft
902 FT²

Beds
1

Baths
1.5

Stories
1

Garage
0

Depth
44'

Width
36'

From
$770.00

Front rendering

Kitchen and dining room

Rear rendering

optional detached garage elevation

View All 6 Images | Photographs may reflect modified home

Sq Ft

902 FT²

From

$770.00

Beds

Baths

1.5

Stories

Garage

Depth

44'

Width

36'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

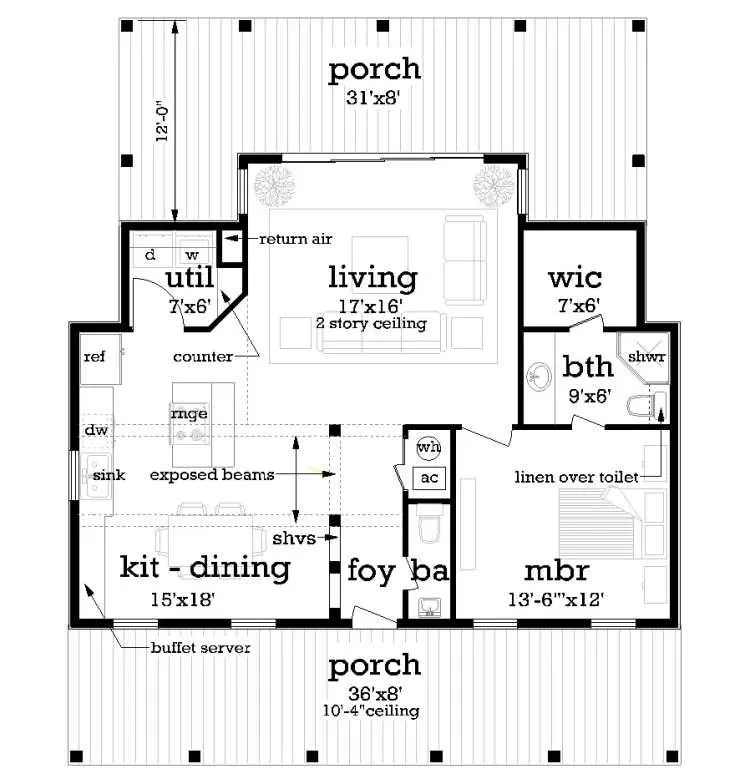

1st Floor Plan

optional detached garage floor plan

1st Floor Plan

optional detached garage floor plan

About This Plan

Intended as a guest house or even a permanent residence for up to two people, this adorable 902 s.f. cottage is sure to please those who appreciate designs that are historical in appearance but with modern day features. The open airy layout of the main living spaces will enhance the compact size making it appear as a much larger home. The spaces have subtle divisions that definitely define each space but all work together for open entertainment. The 9’ ceilings accommodate the window and door transoms opening to the front porch providing maximum light for the interior. The two story ceilings of the living room have exposed beams and clipped ceilings which create grandness for such a compact home. The 12’ sliding glass doors of the living room lead out to the wrap-a-round rocking chair size rear porch. The 8’ deep front porch can also accommodate rocking chairs. The kitchen is comparable to those found in larger homes and it features a large island with serving bar, a buffet serving area and beamed ceilings. The master bedroom is illuminated with 2 large windows and transoms and features a bath with shower and a big walk-in closet. The half bath and equipment closet are located for convenience and maximum efficiency. A two story, 3 bedroom version of this plan is available for those who want a family size version. Refer to "Similar Plans"

FEATURES & DETAILS

Kitchen features

Country Kitchen
Kitchen Island

Bedroom features

Primary Bdrm Main Floor
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Wraparound Porch

Foundation Options

Crawlspace

Lot Options

Suited for corner lot
Suited for narrow lot
Suited for view lot

Additional features

2 Story Volume
Dining Room
Foyer
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings

Garage Options

None

1,494 Ft

Total Structure

902 Ft

Total Heated

Bedrooms

1.5

Bathrooms

Garage

Stories

36' 0"

Width

44' 0"

Depth

23' 0"

Height

9' 0"

Main Floor Ceiling

2x6

Framing

Stick

Roof Framing

10:12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

592 Ft

Porch

Exterior Styles

Beach

Cottage

Southern

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$400

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$400

$770

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$770

$855

4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

$855

$900

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$900

$1,010

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$1,010

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,010

$1,340

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,340

Need To Reverse Plan? (Optional)

$125

Readable Reverse

Reverse house plans with readable text and dimensions

$125

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
