HOUSE PLANS
START AT $1,248
SQ FT
2,549
BEDS
3
BATHS
2
STORIES
2
CARS
2
WIDTH
58'
DEPTH
70'
© copyright by designer

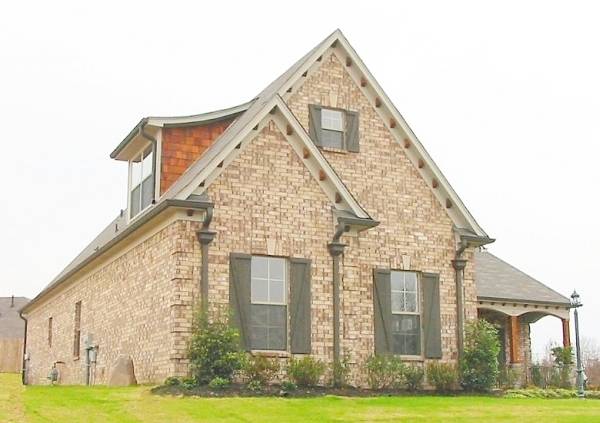

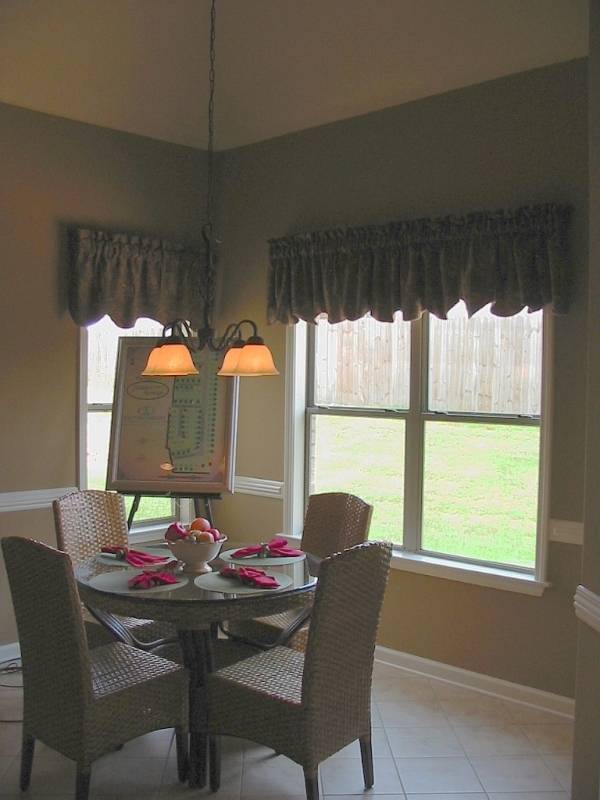

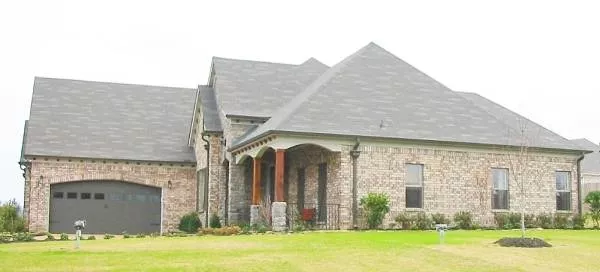

Photographs may reflect modified homes.   View all 6 photos
SQ FT
2,549
BEDS
3
BATHS
2
STORIES
2
CARS
2



House Plan 8147: Westminster

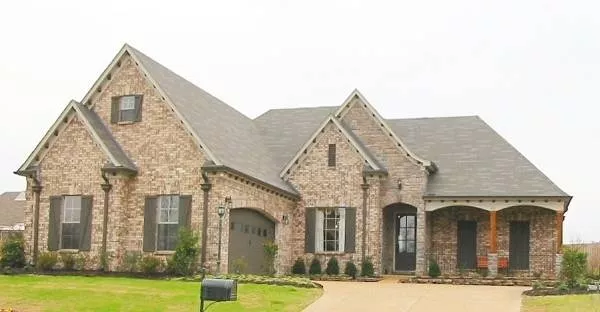

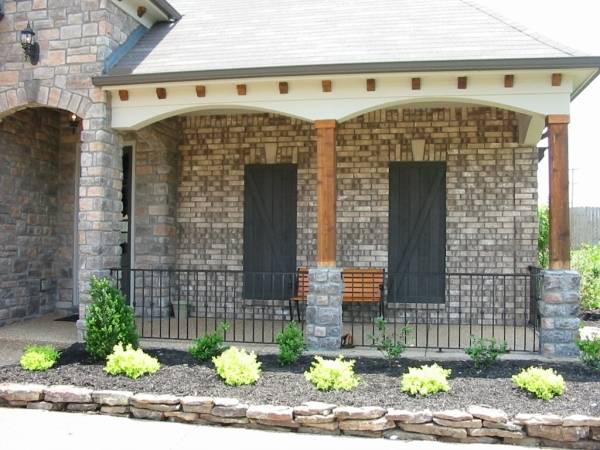

Natural stone and graceful arches adorn this charming design. Just beyond the sheltered porch lies the foyer to a large vaulted family room with corner fireplace and view of the generous back porch beyond. The dining room features a stately window and double-tray ceiling, which can be seen through arched openings to the foyer and to the family room. The master suite is amazing with the sitting ...  Read more >
Click to Zoom In on Floor Plan

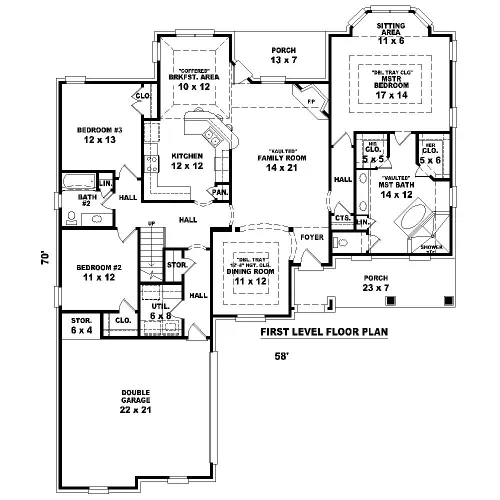

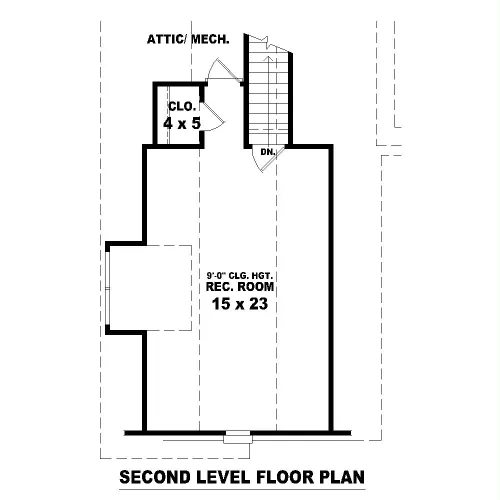

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
Digital set of plans for bidding purposes only
$650

1 Printed Set


Note: Plans can not be copied. A 5 set package is recommended in order to provide copies to permit offices and subcontractors.
1 Printed Set
A single set
$1,140

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,248

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,636

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,023
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$350
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Additional features
Fireplace
Garage Location
Side
Garage Features
Attached

Hide Plan Features
Details:
View All Plan Details
3,312 Ft
2
Total Structure:
2,549 Ft
2
Total Heated:
2,104 Ft
2
1st Floor:
445 Ft
2
2nd Floor:
3
Bedrooms:
2
Bathrooms:
2
Garage:
2
Stories:
58' 0"
Width:
70' 0"
Depth:
26' 0"
Height:
9
Main Floor Ceiling:
8
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
14
Primary Roof Pitch:
10
Secondary Roof Pitch:
Single
Dwelling Number:
None
Bonus Access:
Unheated Living Space
519 Ft
2
Garage:
244 Ft
2
Porch:

Hide Plan Details
