House Plan 3490: Westfield

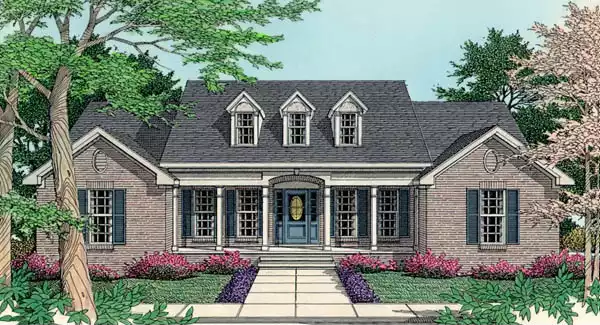

A raised front porch is cradled between two gables forming this fabulous, symmetrical design. The foyer serves as a hallway accessing every area of the home. In the living room, a vaulted ceiling is well lit by skylights and large windows beside the fireplace.  Read more >

House Plan Details

Sq. Ft.
1,722
Beds
3
Baths
3.0
Stories
2
Garages
2
Width
57' 4"
Depth
72' 0"
Select Plan Package
PDF Construction Set - Si
$1050
Select Foundation Options
$0
Basement
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

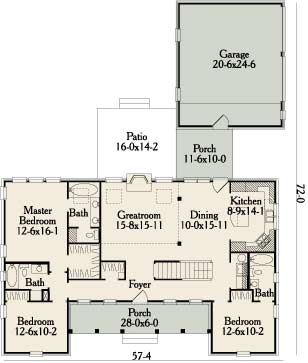

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,722
1st Floor SQ. FT.:
1,722
Bonus:
819
Bedrooms:
3
Bathrooms:
3.0
Garage:
2
Stories:
2
Main Ceiling Height:
8'
Upper Ceiling Height:
8'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 9/12
Width:
57' 4"
Depth:
72' 0"
Height:
25' 0"
Exterior Styles:
Cottage
Southern
Traditional
Unheated Living Space:
Garage: 572
Porch: 283
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Double Vanity Sink
Master Bdrm Main Floor
Master Bdrm Main Floor
Walk-in Closet
Walk-in Closet
Kitchen Features:
Kitchen Island
Kitchen Island
Peninsula / Eating Bar
Peninsula / Eating Bar
Additonal Features:
Fireplace
Fireplace
Foyer
Foyer
Great Room
Great Room
Laundry 1st Fl
Laundry 1st Fl
Open Floor Plan
Open Floor Plan
Unfinished Space
Unfinished Space
Garage Features:
Detached
Detached
Side-entry
Side-entry
Garage Location:
Rear
Lot Features:
Suited for corner lot
Suited for corner lot
