House Plan 4802: Walton-2605

This comfortable farm house design is fit into a surprisingly small footprint suitable for smaller lots. The breakfast area presents an interesting twist that radiates to the rear porch and deck. The grand stairwell is accessed from the dining and living areas.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
2,651
Beds
5
Baths
2.0
Stories
2
Garages
3
Width
72' 0"
Depth
58' 0"
1st Floor
1,671
2nd Floor
980
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
PDF Construction Set - 1
$1050
Select Foundation Options
$0
Crawl Space Foundation
$0
Optional Add-Ons
Subtotal: $0
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

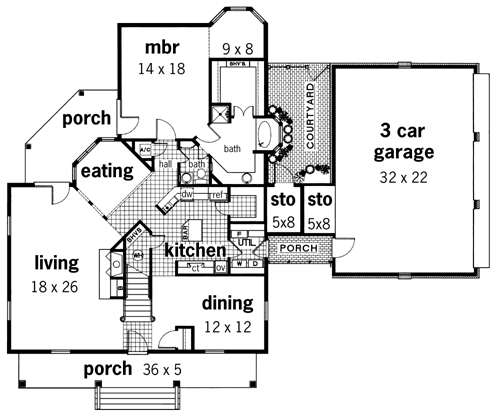

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 5
Bathrooms: 2.0
Garage: 3
Stories: 2
Exterior Style
Country
Southern
Traditional
Dimensions
Width: 72' 0"
Height: 0' 0"
Depth: 58' 0"
Heated Living Space
Total Sq. Ft: 2,651
1st Floor: 1,671
2nd Floor: 980
Unheated Living Space
Ceiling
Upper Ceiling Ft: 8
Main Ceiling Ft: 8
Framing Information
Framing: 2x6
Roof Framing:
Bedroom Features
Kitchen Features
Additional Room Features
Garage Location
Side
Garage Features
Attached
Lot Features
Suited for corner lot
Roof Pitch
Primary: 12/12
