Sq Ft
4,874 FT²
Bed
5
Bath
4.5
Stories
2
Garage
3
Depth
64' 8"
Width
82' 2"
On Sale
$1,428.00
$1,428.00
EXCLUSIVE PLAN
© copyright by designer

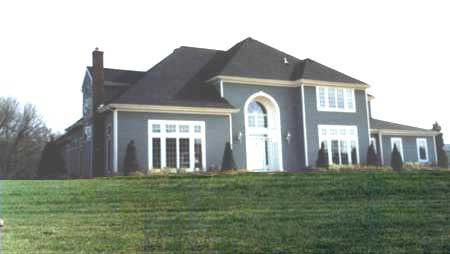

View All 3 Images | Photographs may reflect modified home
Sq Ft
4,874 FT²
From
$1,428.00
Bed
5
Bath
4.5
Stories
2
Garage
3
Depth
64' 8"
Width
82' 2"

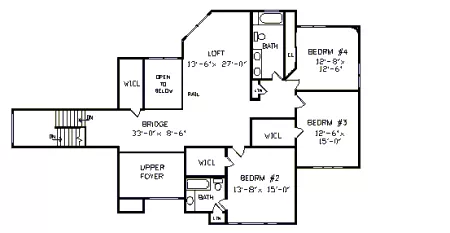

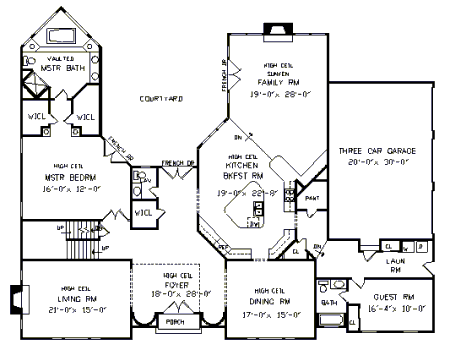

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

Visitors to this home are greeted by a two-story, light-filled reception foyer that is flanked by the formal living spaces with tall ceilings. It leads straight ahead to a beautiful, private rear courtyard. The angled kitchen features a triangular island and French doors that open to the courtyard. The magnificent, main-floor master bedroom offers two walk-in closets and a private bath with dual sinks and a whirlpool tub surrounded by glass block walls. I also provided it with access to the courtyard. Three bedrooms, two baths and a large versatile loft are included in the expansive upper floor.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Bedroom features
Master Bdrm Main Floor
Foundation Options
Basement
Crawlspace
Additional features
2 Story Volume
In-law Suite
Garage Location
Side
Garage Options
Attached
Side-entry
4,874 Ft
2
Total Heated
3,299 Ft
2
1st Floor
1,575 Ft
2
2nd Floor
5
Bedrooms
4.5
Bathrooms
3
Garage
2
Stories
82' 2"
Width
64' 8"
Depth
36' 10"
Height
10'-1"' 0"
Main Floor Ceiling
8'-1"' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
10/12
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
617 Ft
2
Garage


Plan Package Options

 Select Plan Package
$1,325
PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$1,325
$1,680
PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,680
$1,800
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,800
$1,910
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,910
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
