Sq Ft
5,739 FT²

Beds
3

Baths
4.5

Stories
3

Garage
4

Depth
82'

Width
106'

From
$1,695.00

View All 24 Images | Photographs may reflect modified home

Sq Ft

5,739 FT²

From

$1,695.00

Beds

Baths

4.5

Stories

Garage

Depth

82'

Width

106'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

1st Floor Plan

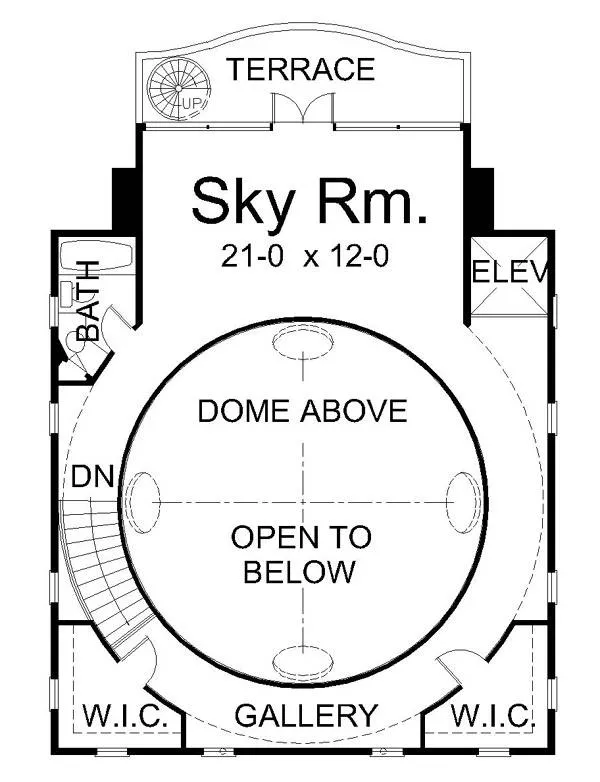

3rd Floor

2nd Floor Plan

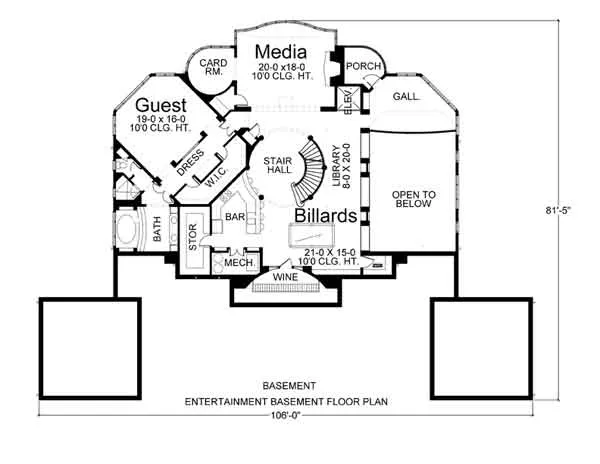

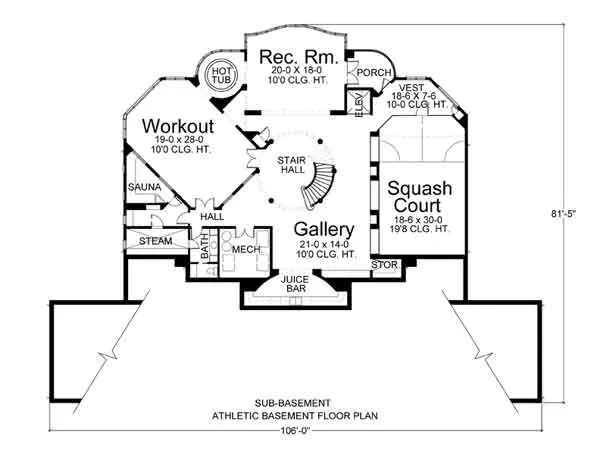

Basement Floor Plan

About This Plan

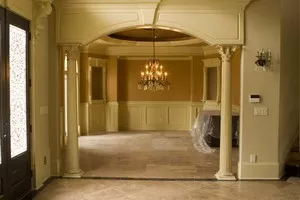

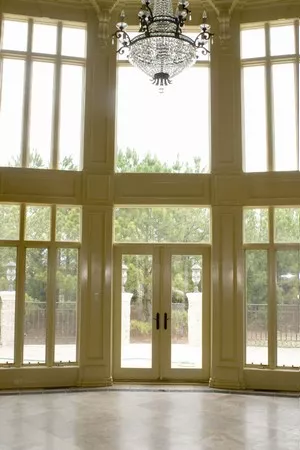

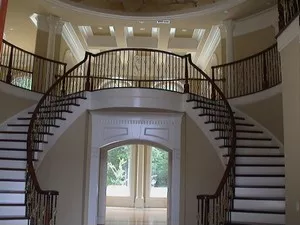

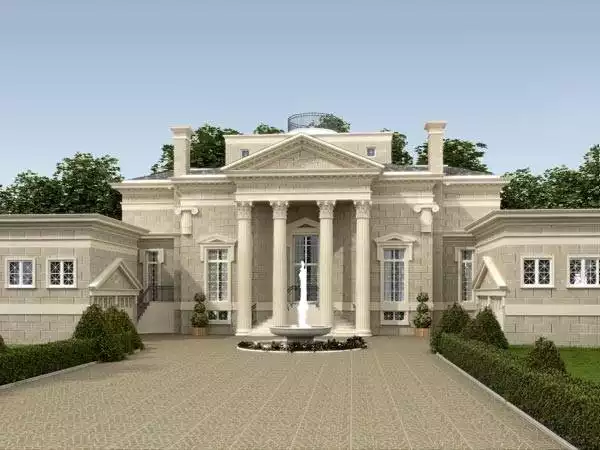

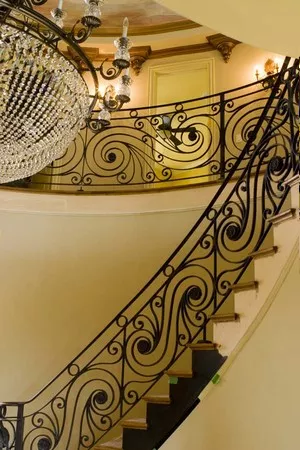

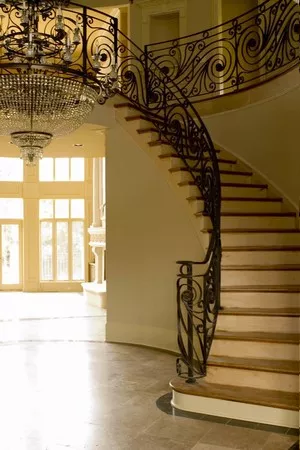

This lavish home incorporates so many distinctive architectural details it will never be confused with any other estate home or forgotten by visitors. From the two-story foyer to the Grand Room (which also ascends two stories) every room in this noble home has distinguishing woodwork and design elements. Such gracious amenities as a full master suite on the first floor, four large bedroom suites, a sky room and four car garage make this home cherished by family and extraordinary for your guests. This home is designed for a very steep lot. It is showing two basements, one can easily be removed.

FEATURES & DETAILS

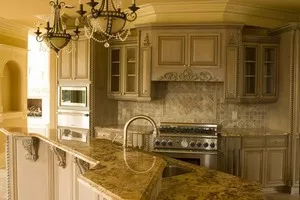

Kitchen features

Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

His and Hers Primary Closets
Primary Bdrm Main Floor

Exterior features

Covered Rear Porch

Foundation Options

Basement
Daylight Basement

Lot Options

Suited for sloping lot

Additional features

Laundry 1st Fl
Storage Space
Vaulted Ceilings
Vaulted Primary
Wine Cellar

Garage Location

Front

Garage Options

Courtyard/Motorcourt Entry
Detached

5,730 Ft

Total Structure

5,739 Ft

Total Heated

3,339 Ft

1st Floor

1,540 Ft

2nd Floor

860 Ft

3rd Floor

3,386 Ft

Basement

3,386 Ft

Sub-Basement

553 Ft

Mechanical

Bedrooms

4.5

Bathrooms

Garage

Stories

106' 0"

Width

82' 0"

Depth

47' 0"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

9' 0"

Third Floor Ceiling

10' 0"

Lower Floor Ceiling

2x6

Framing

Stick

Roof Framing

5/12

Primary Roof Pitch

1/12

Secondary Roof Pitch

Single

Dwelling Number

Unheated Living Space

968 Ft

Garage

501 Ft

Storage

350 Ft

Porch

Exterior Styles

Classical

European

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,695

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,695

$2,125

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,125

$2,225

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,225

$2,495

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,495

$3,290

CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

$3,290

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
