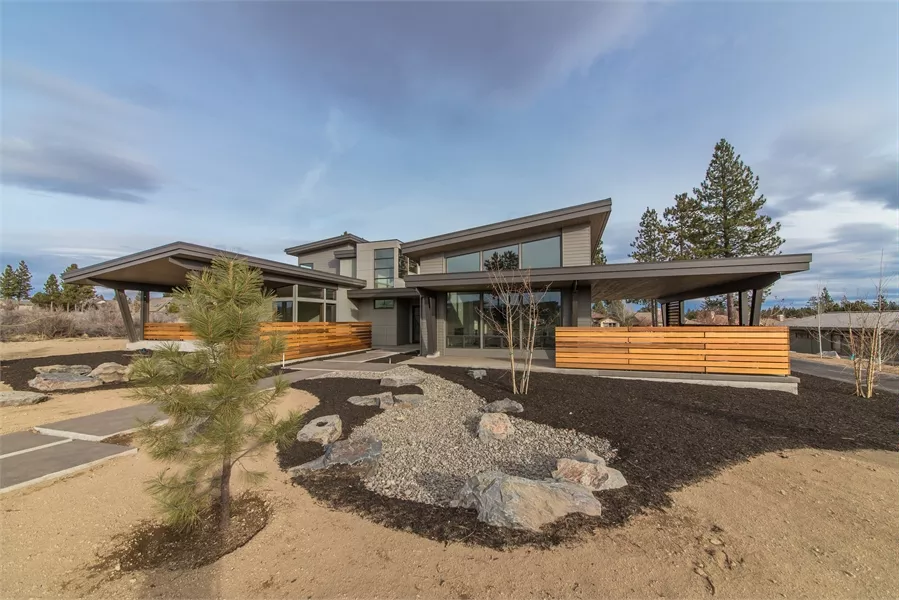

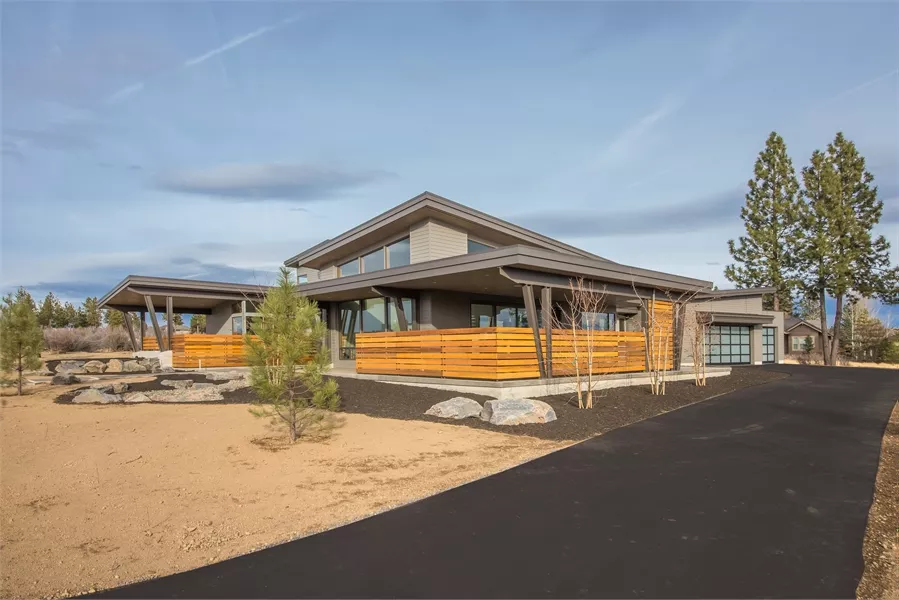

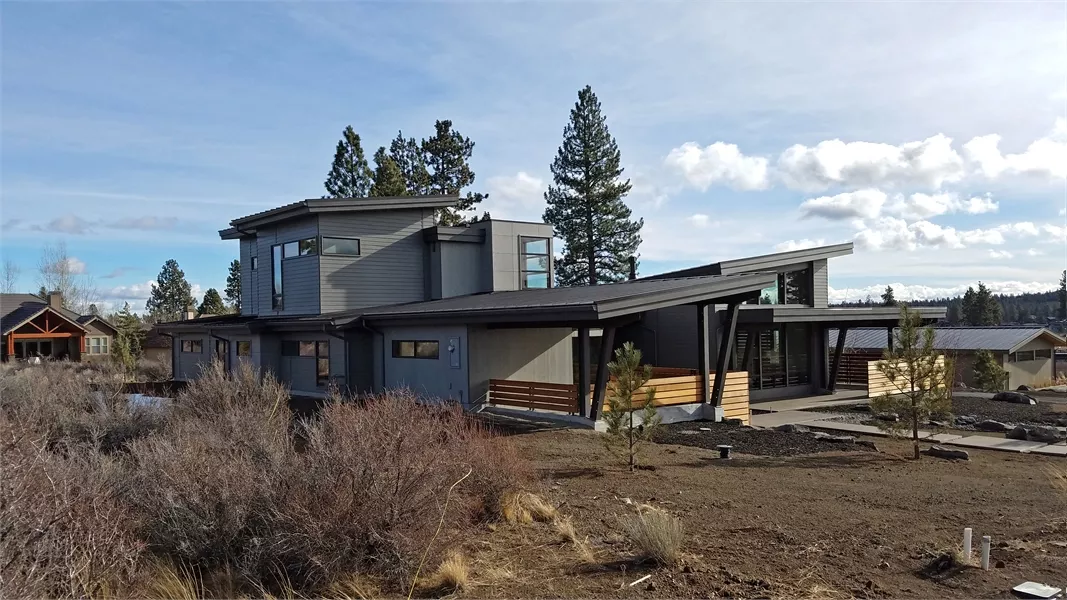

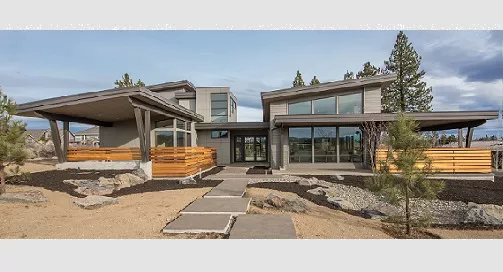

House Plan 3072: Ultra Modern H-Shaped

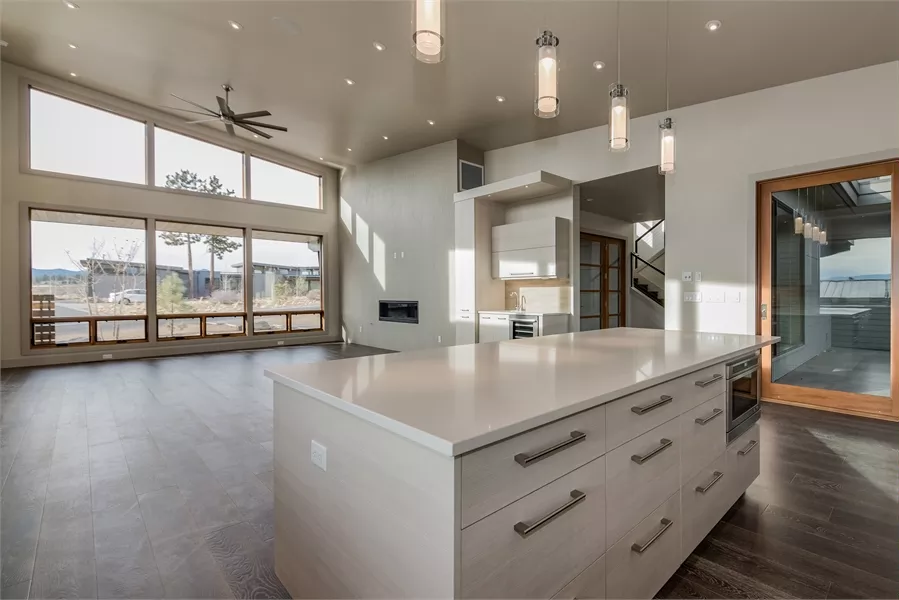

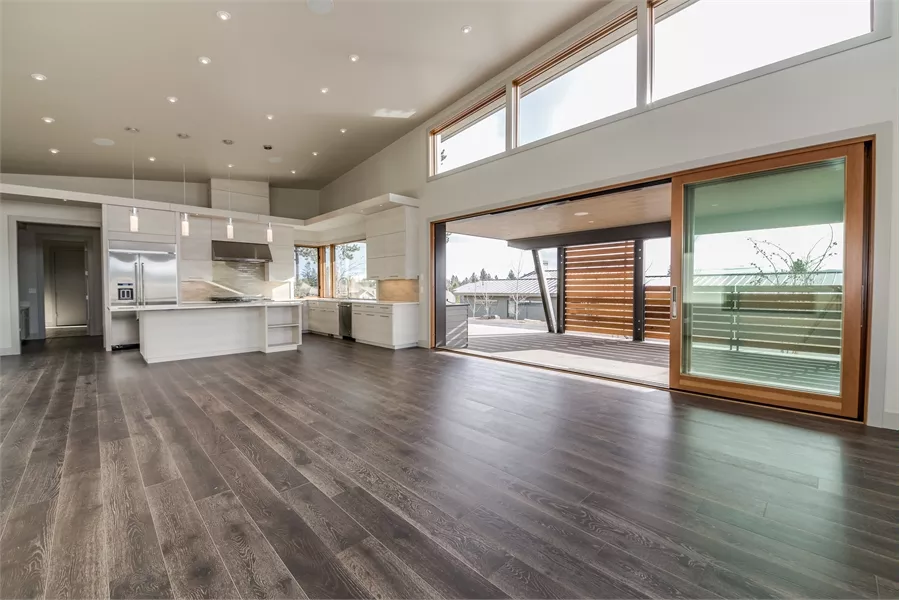

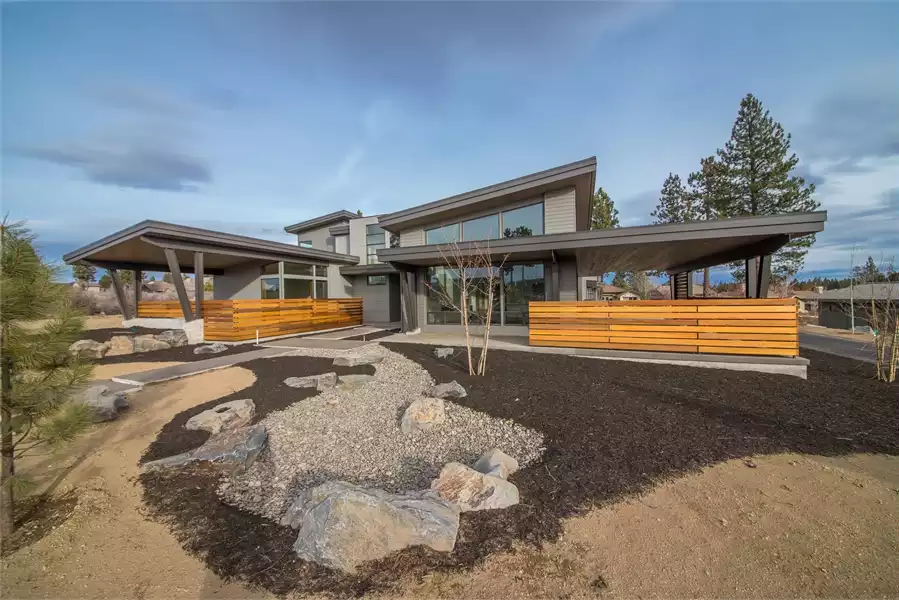

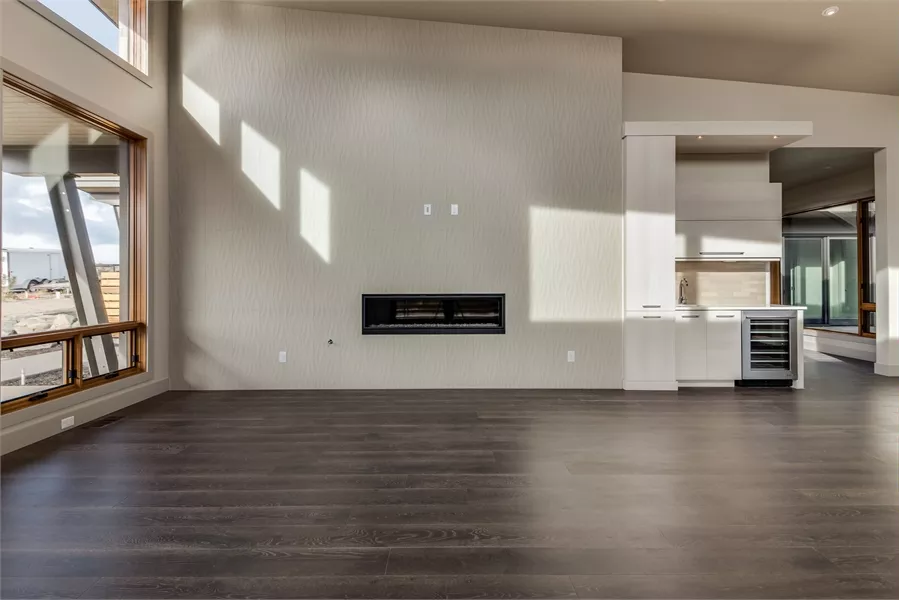

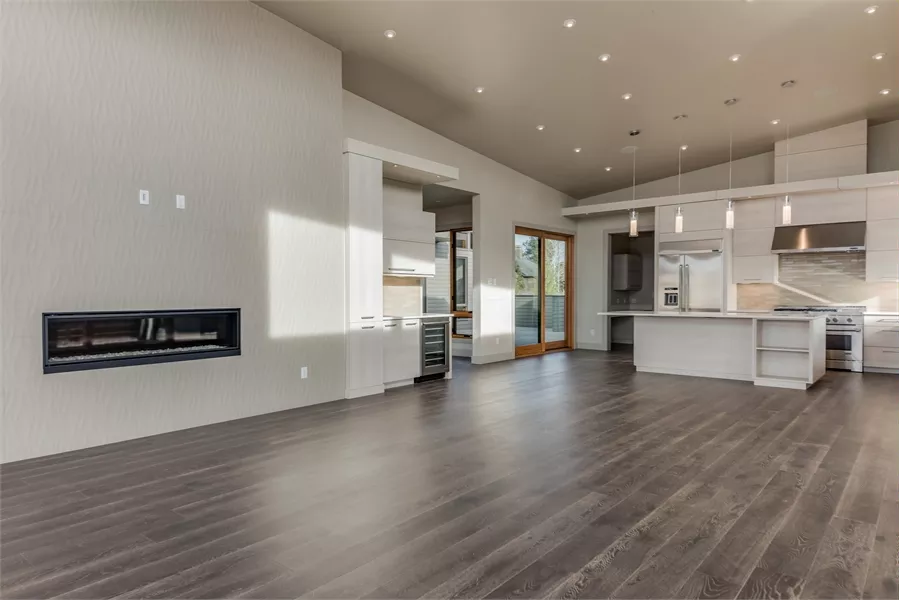

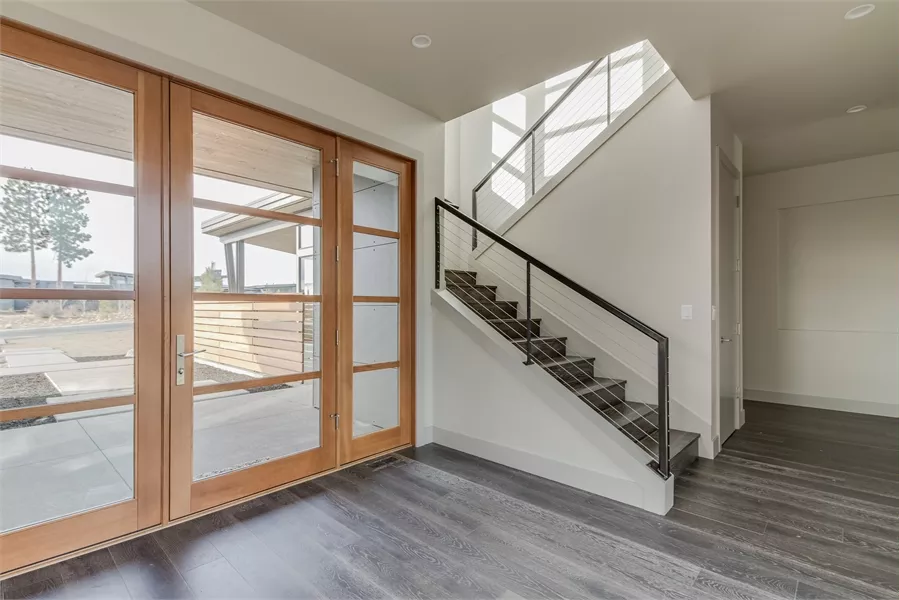

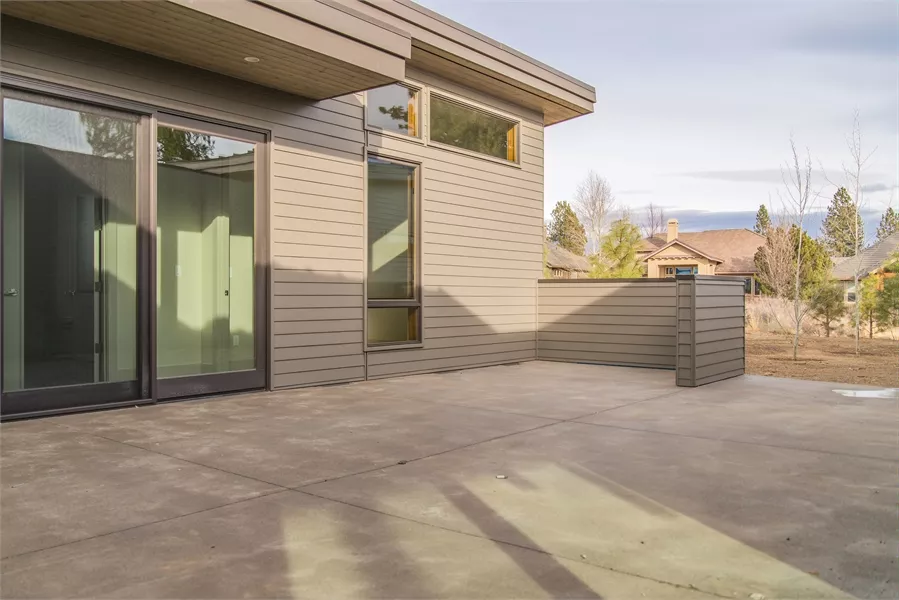

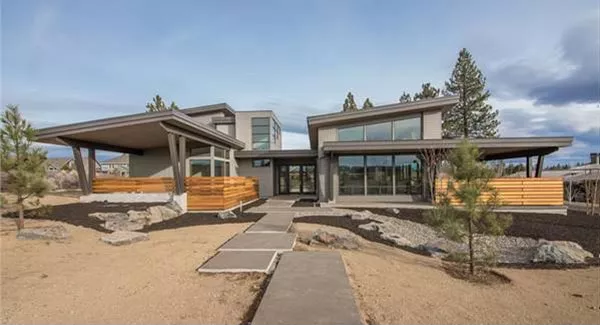

Interesting rooflines adorn this modern two-story house plan. You'll love the unique layout of the home plan, wrapping around a sunny courtyard. The spacious foyer directs guests into the bright great room, warmed by a fireplace.  Read more >

House Plan Details

Sq. Ft.
3,345
Beds
3
Baths
3.1
Stories
2
Garages
3
Width
79' 3"
Depth
121' 6"
1st Floor
2,757
2nd Floor
588
Garage
968
Select Plan Package
PDF
$1995
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $1095

Floor Plans

1st Floor Plan

1st Floor Plan
© copyright by designer

House Plan Specifications

Basic Information
Bedrooms: 3
Bathrooms: 3.1
Garage: 3
Stories: 2
Exterior Style
Contemporary
Lake
Modern
Dimensions
Height: 24' 7"
Depth: 121' 6"
Width: 79' 3"
Heated Living Space
Total Sq. Ft: 3,345
1st Floor: 2,757
2nd Floor: 588
Unheated Living Space
Garage: 968
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 9'6"
Framing Information
Framing: 2x6
Roof Framing: Combination
Additional Room Features
Bonus Room
Exercise Room
Family Room
Fireplace
Foyer
Inverted Living
Laundry 2nd Fl
Library/Media Rm
Loft / Balcony
Mud Room
Open Floor Plan
Rec Room
Storage Space
Vaulted Ceilings

Our Guarantee

  • Only the highest quality plans
  • International Residential Code compliant
  • Complete structural details on all plans
  • Best plan and modification price guaranteed
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • House plans delivered in minutes
  • 100% satisfaction guarantee
