HOUSE PLANS
START AT $1,055
SQ FT
2,832
BEDS
4
BATHS
3.5
STORIES
2
CARS
2
WIDTH
70'
DEPTH
40'
© copyright by designer

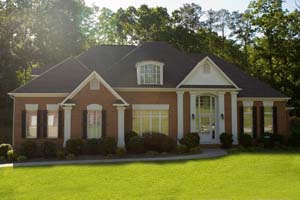

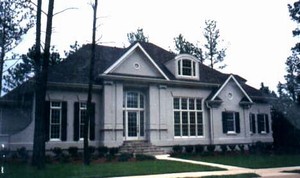

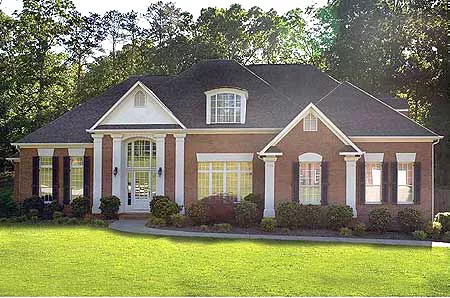

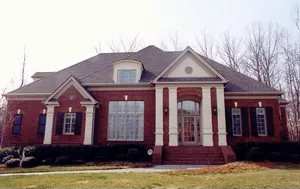

Photographs may reflect modified homes.
SQ FT
2,832
BEDS
4
BATHS
3.5
STORIES
2
CARS
2



House Plan 7162: Trumbauer

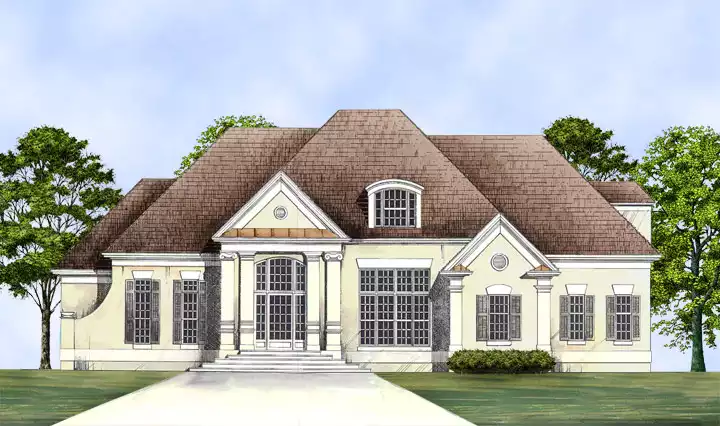

The impressive facade of this classic design previews an elegant floor plan. To the left of the large foyer, French doors open to a study filled with natural light. The open dining room, to the right of the foyer, is defined by a single column. To the rear of the plan, the living room/den and kitchen--with a bowed breakfast area--provide space for the family to gather. Also at the rear of the plan...  Read more >
Click to Zoom In on Floor Plan

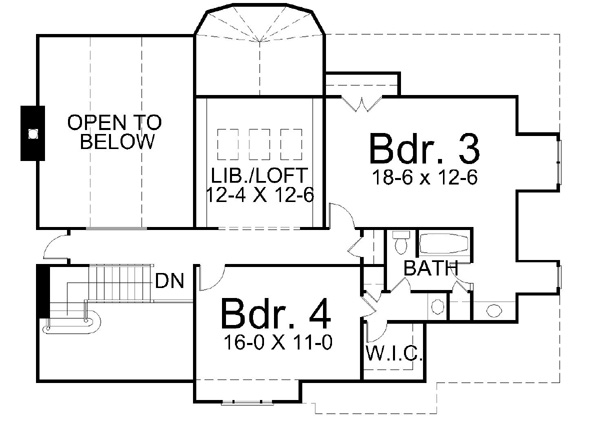

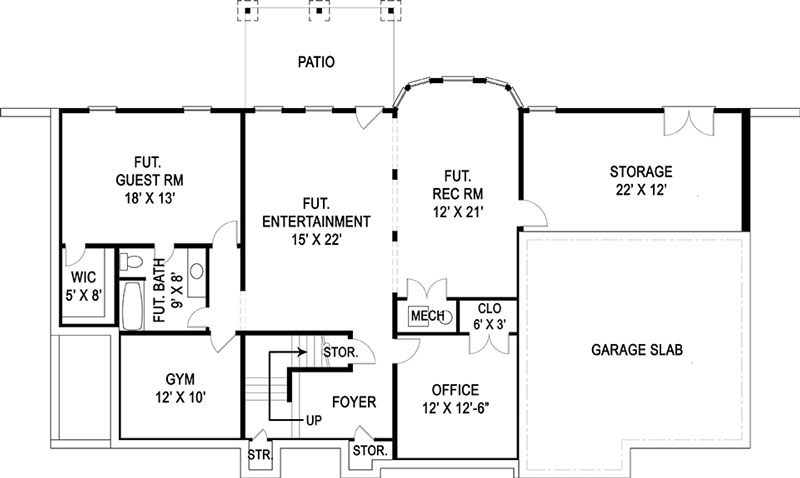

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format allowing minor changes, printing copies, and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Immediate Delivery!
Most recommended package
$1,295

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,475

5 Printed Sets + PDF


Digital plan emailed to you in PDF format allows making minor changes and printing copies on home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF
Digital plans plus 5 printed sets
$1,575

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,095

CAD Multi-Use


2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

CAD Multi-Use
2D electronic editable computer files
$2,890
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$200
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
Features:
View All Plan Features
Garage Features
Attached

Hide Plan Features
Details:
View All Plan Details
2,832 Ft
2
Total Heated:
1,920 Ft
2
1st Floor:
912 Ft
2
2nd Floor:
1,751 Ft
2
Lower Floor:
1,751 Ft
2
Lower Floor:
1,751 Ft
2
Lower Floor:
4
Bedrooms:
3.5
Bathrooms:
2
Garage:
2
Stories:
70' 0"
Width:
40' 0"
Depth:
29' 2"
Height:
9
Main Floor Ceiling:
9
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
12/12
Primary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
510 Ft
2
Garage:
Exterior Styles
Traditional
