Sq Ft
1,955 FT²

Beds
1

Baths
2

Stories
2

Garage
5

Depth
47' 6"

Width
81'

From
$1,500.00

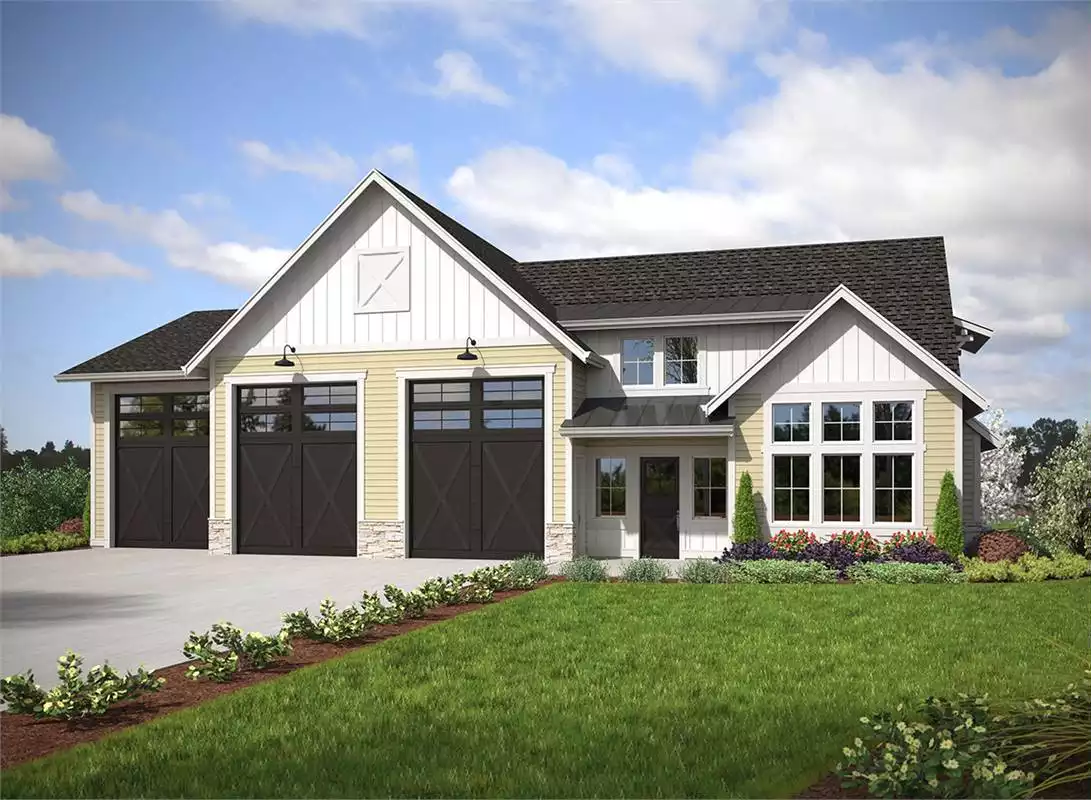

Front View

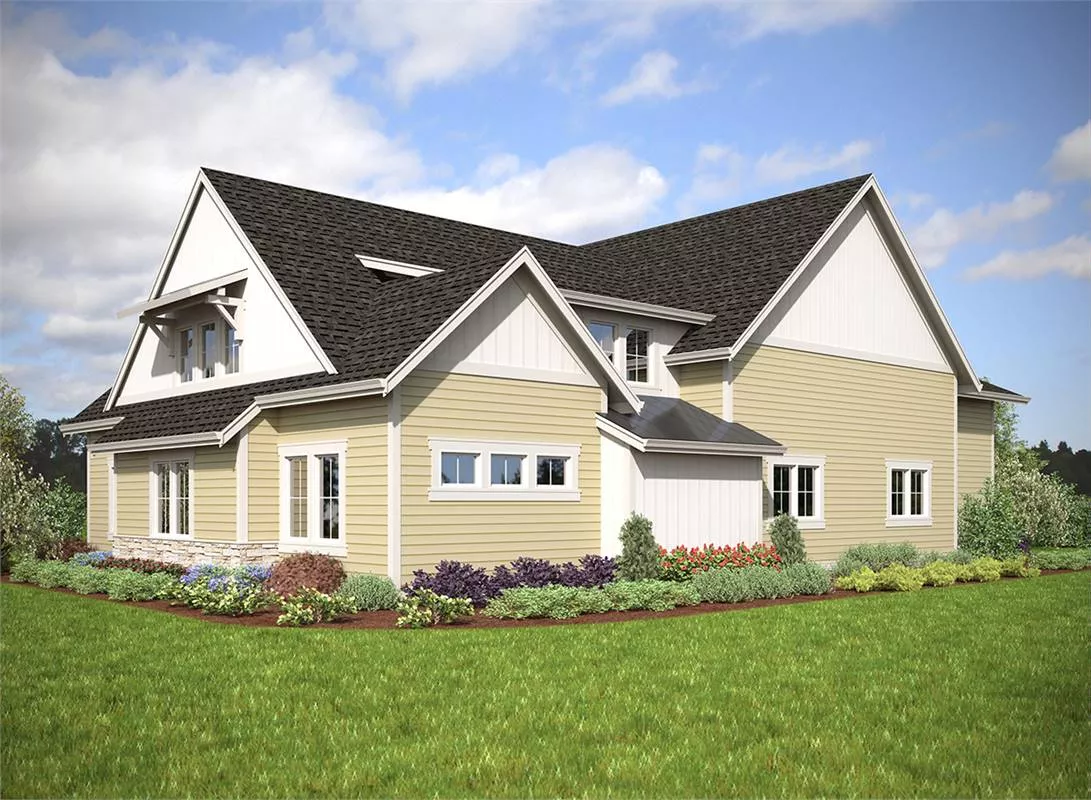

Rear View

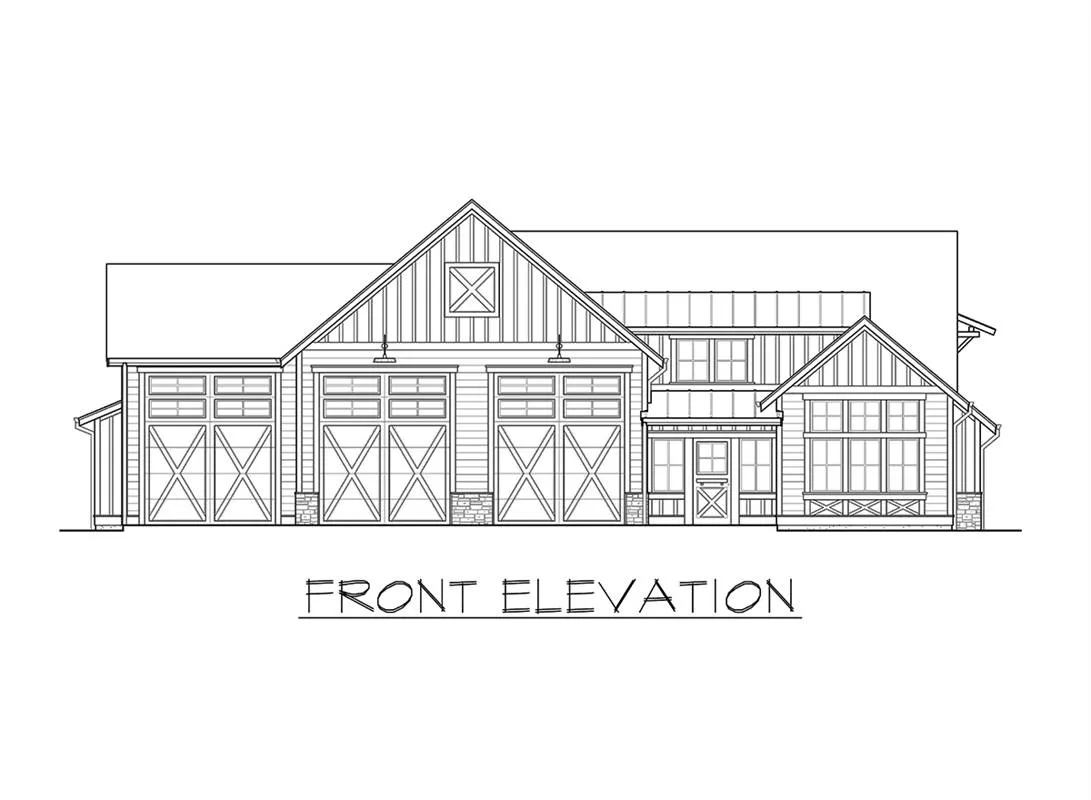

Front View

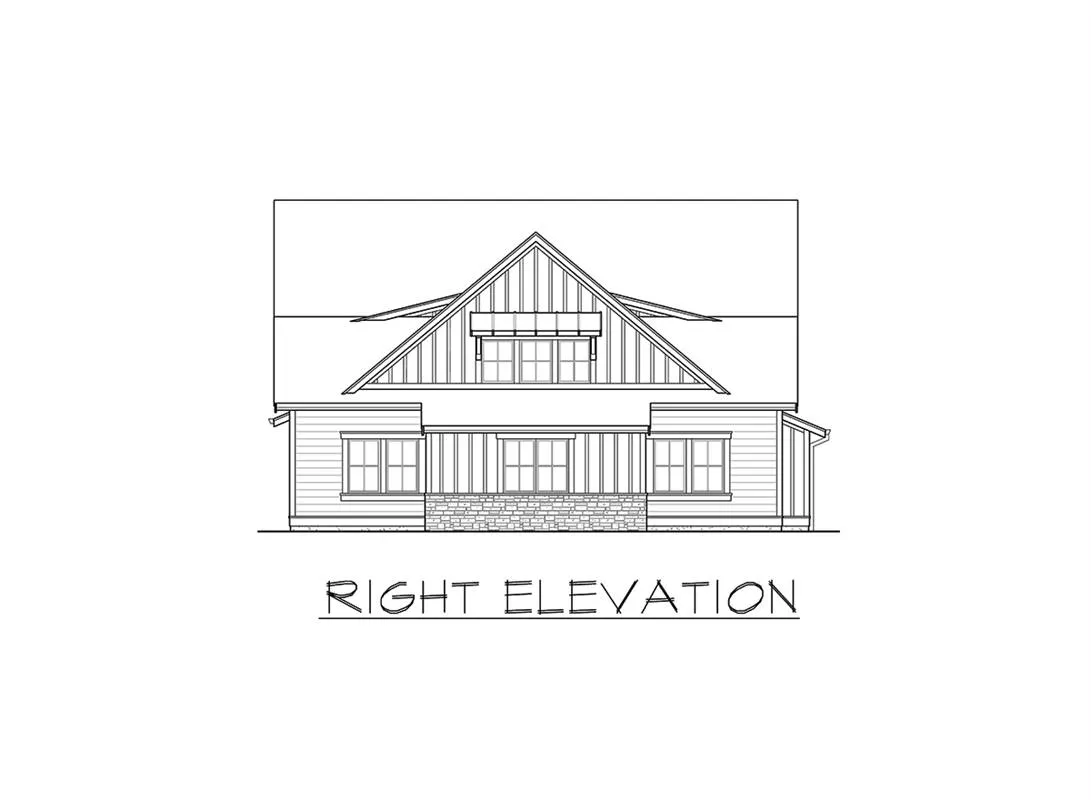

Right View

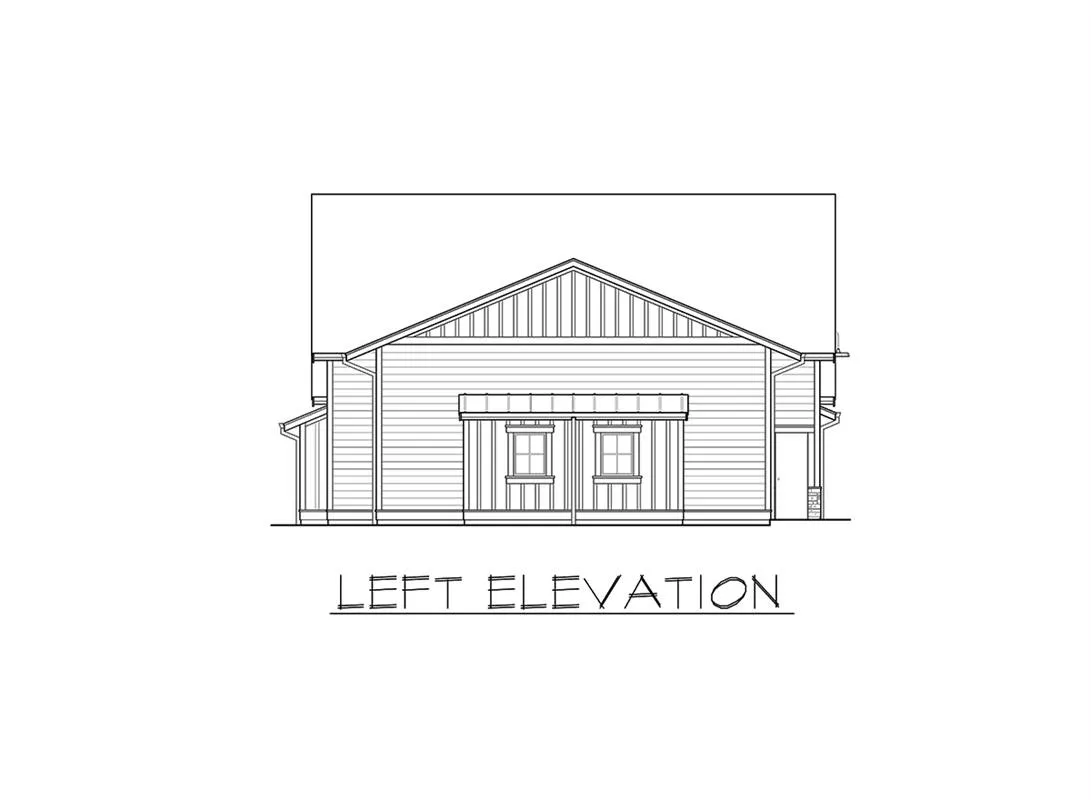

Left View

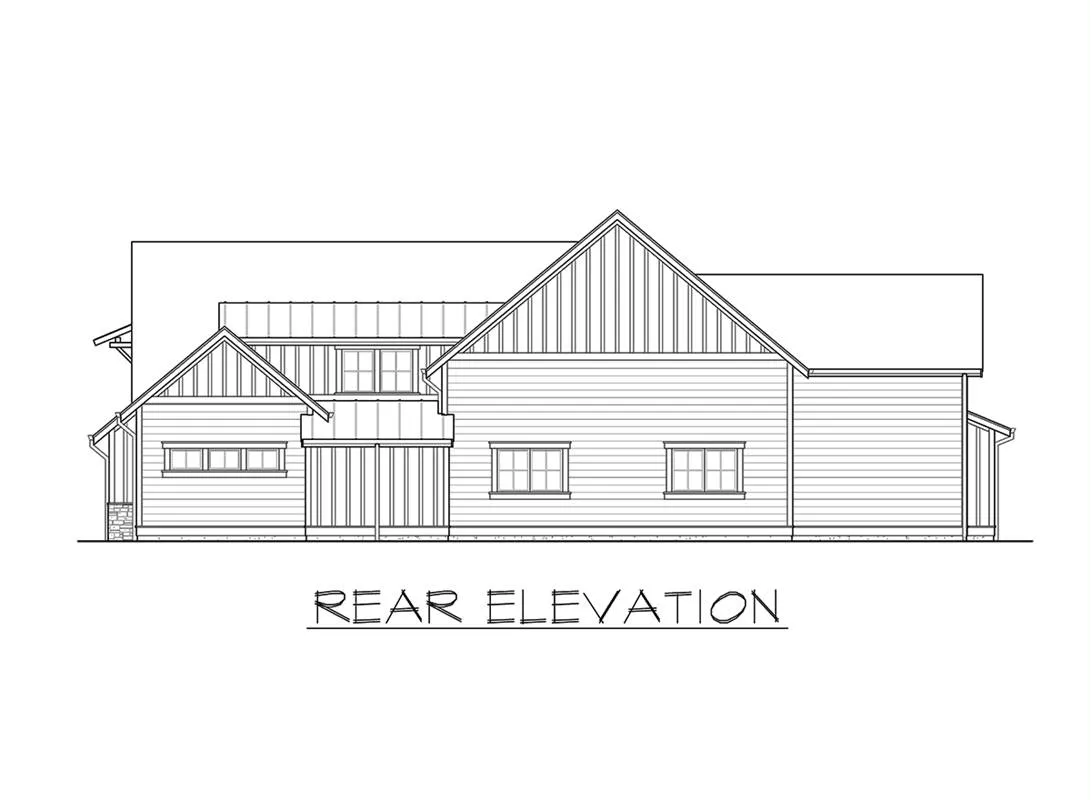

Rear View

View All 6 Images | Photographs may reflect modified home

Sq Ft

1,955 FT²

From

$1,500.00

Beds

Baths

Stories

Garage

Depth

47' 6"

Width

81'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

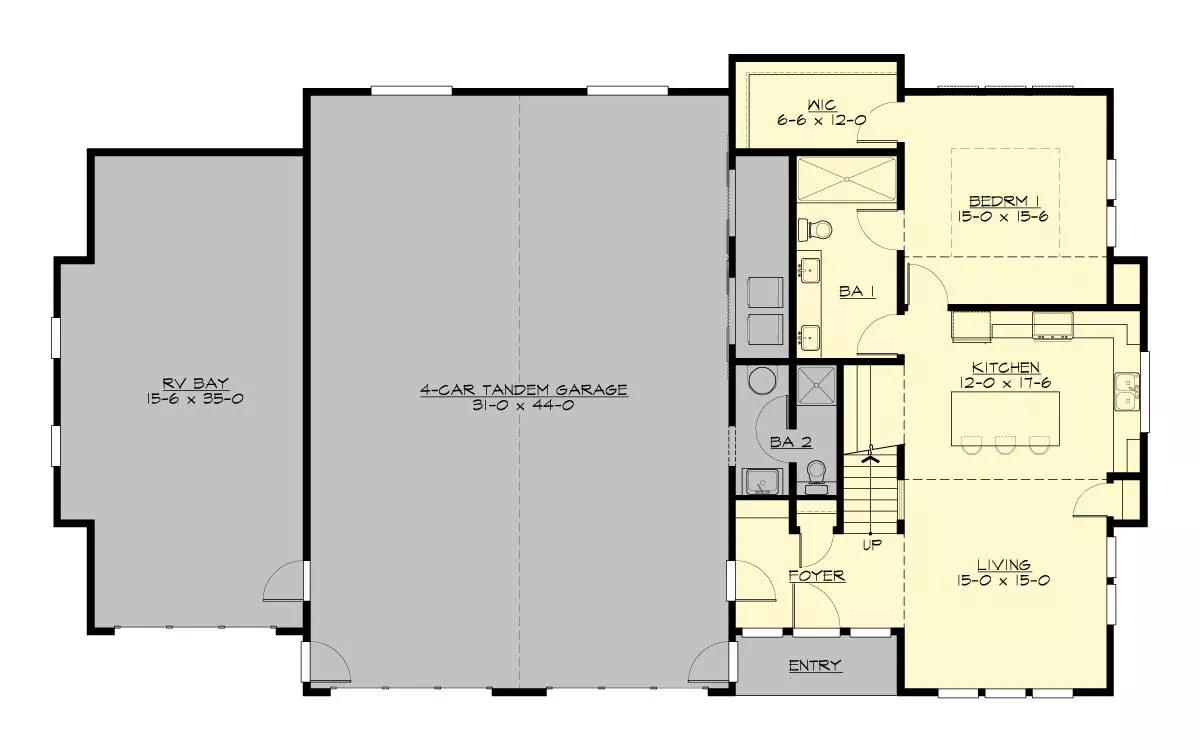

1st Floor

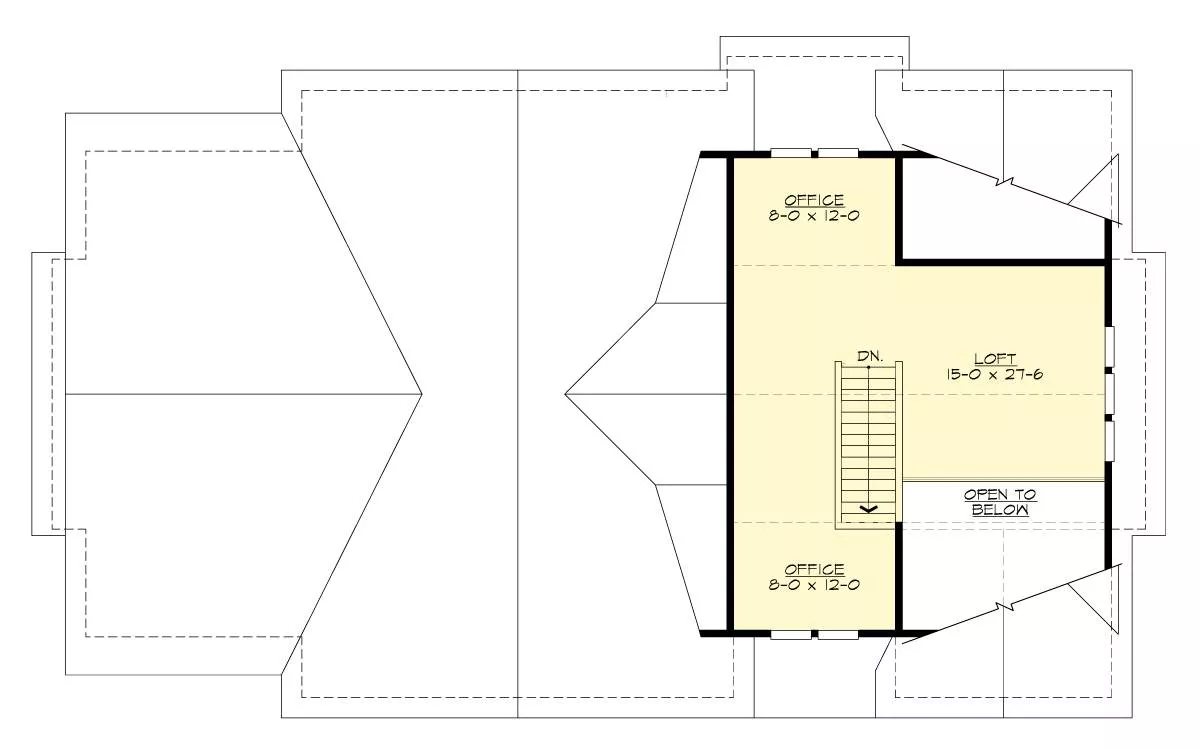

2nd Floor

1st Floor

2nd Floor

About This Plan

The perfect property or addition for the owner with plenty of vehicles, this garage plan features a four-car tandem garage as well as a dedicated RV bay on the side. There's also a residence attached - a one-bedroom apartment perfect for guests, renting out, or living in yourself! The two garage portions both feature windows for natural light, and there's a full bath by the car section to make cleaning up after automobile maintenance a snap. Whether you enter the apartment from the garage or the front door, you're welcomed into a foyer with plenty of storage. The living space is in front with an island kitchen farther back. The bedroom connects to a large four-piece bath; also with hall access and a walk-in closet. And upstairs, you'll find a loft with two office nooks!

FEATURES & DETAILS

Kitchen features

Kitchen Island
L-Shaped
Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower

Additional features

Foyer
Home Office
Laundry 1st Fl
Loft / Balcony
Open Floor Plan
Storage Space

Garage Location

Front

Garage Options

Attached
Front-entry
Oversized
RV Garage

1,955 Ft

Total Heated

1,280 Ft

1st Floor

675 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

Stories

81' 0"

Width

47' 6"

Depth

30' 0"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

10:12

Primary Roof Pitch

5:12

Secondary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

2,065 Ft

Garage

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,500

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,500

$2,800

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,800

Need To Reverse Plan? (Optional)

$300

Readable Reverse

Reverse house plans with readable text and dimensions

$300

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

IMPORTANT NOTE: Due to state regulations, this home is not available for purchase in the State of Washington. Contact us for more information.

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
