SQ FT
2,033
BEDS
3
BATHS
2
STORIES
2
CARS
2
WIDTH
79' 4"
DEPTH
43' 4"
© copyright by designer
Photographs may reflect modified homes.   View all 3 photos
SQ FT
2,033
BEDS
3
BATHS
2
STORIES
2
CARS
2



House Plan 3489: Thornhill

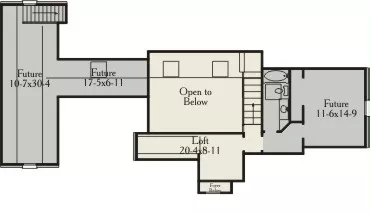

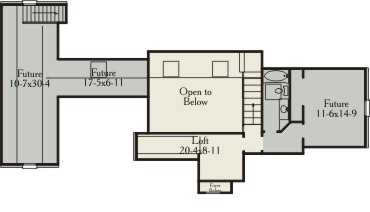

Architectural columns define the great room which hosts a glowing fireplace. A French door provides a private exit to the outdoors from the master bedroom. The front bedroom features an 11' ceiling and a plant shelf above the closets. The staircase leads to the open loft above and 789 square feet for future expansion.

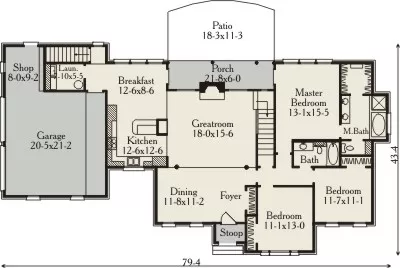

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
PDFs NOW!™
Most recommended package
$1,150

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,215
5 Printed Sets + PDF
5 printed sets plus Digital PDF plans
$1,390

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,100
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$255
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Nook / Breakfast Area
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet
Lot features
Suited for corner lot
Suited for view lot
Additional features
Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Loft / Balcony
Open Floor Plan
Unfinished Space
Vaulted Ceilings
Garage Location
Side
Garage Features
Attached
Side-entry

Hide Plan Features
Details:
View All Plan Details
2,033 Ft
2
Total Heated:
1,868 Ft
2
1st Floor:
165 Ft
2
2nd Floor:
3
Bedrooms:
2
Bathrooms:
2
Garage:
2
Stories:
79' 4"
Width:
43' 4"
Depth:
28' 0"
Height:
8
Main Floor Ceiling:
8
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
10/12
Primary Roof Pitch:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unheated Living Space
565 Ft
2
Garage:
160 Ft
2
Porch:
789 Ft
2
Bonus Room:
Exterior Styles
European
Southern
Traditional
Collections
First Home
Open Floor Plan

Hide Plan Details
