The Windsor House, THD-1601

Sq Ft
2,510 FT²
Bed
4
Bath
3
Stories
2
Garage
2
Depth
80' 8"
Width
44'
From
$1,570.00
© copyright by designer
View All 2 Images | Photographs may reflect modified home
Sq Ft
2,510 FT²
From
$1,570.00
Bed
4
Bath
3
Stories
2
Garage
2
Depth
80' 8"
Width
44'

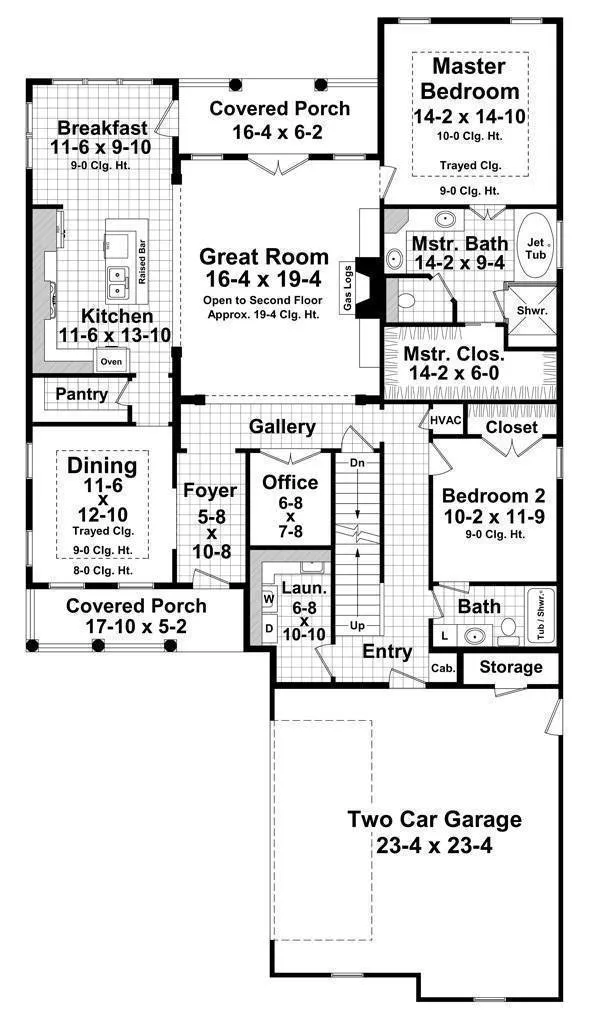

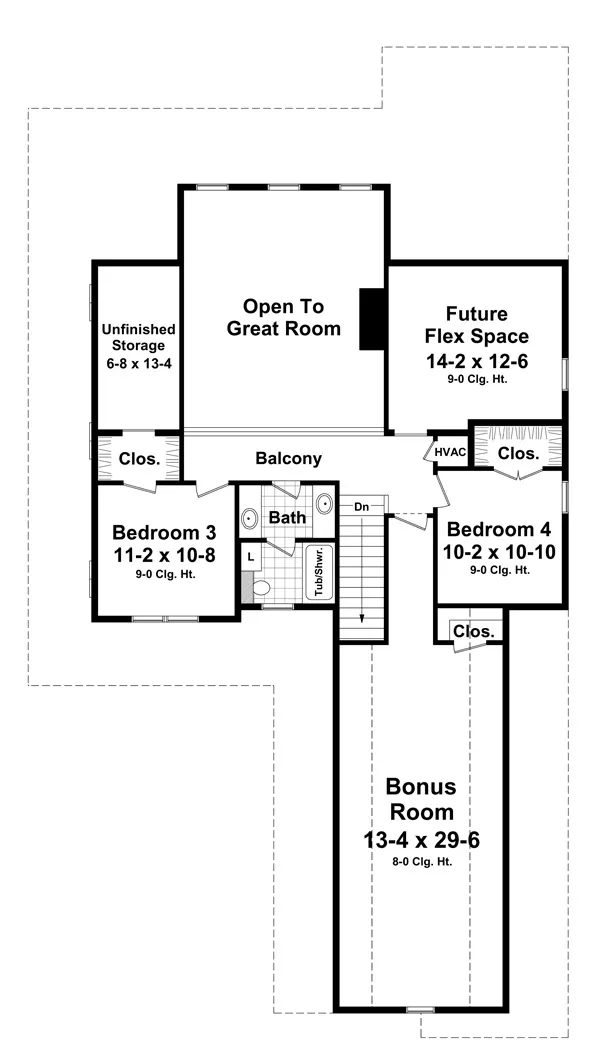

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

This beautiful narrow lot design offers traditional neighborhood styling along with great floor plan features. The first floor includes a large great room complimented by two story ceilings, a gas log fireplace, built-in cabinets, and great views. A well-equipped kitchen offers easy access to the formal dining room as well as the casual breakfast area and large walk-in pantry. The master suite features a large walk-in closet, trayed ceiling, dual vanities, jet tub, and separate shower. A guest bedroom is also provided on the first floor with private bath. A large laundry room and half bath are also provided with easy access to the two car garage with additional storage. Two covered porches also provide the perfect environment for outdoor entertaining. The second floor boasts two well-sized bedrooms complete with ample closet space and plenty of room for additional storage or expansion. The functional floorplan and attractive exterior combine to make this a plan that you and your family can be proud to call home.


FEATURES & DETAILS

Kitchen features
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Basement
Walkout Basement
Lot Options
Suited for corner lot
Suited for narrow lot
Suited for sloping lot
Suited for view lot
Additional features
2 Story Volume
Bonus Room
Dining Room
Exercise Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Mud Room
Open Floor Plan
Storage Space
Unfinished Space
Workshop
Garage Location
Side
Garage Options
Attached
Side-entry
4,116 Ft
2
Total Structure
2,510 Ft
2
Total Heated
1,998 Ft
2
1st Floor
512 Ft
2
2nd Floor
4
Bedrooms
3
Bathrooms
2
Garage
2
Stories
44' 0"
Width
80' 8"
Depth
32' 8"
Height
9' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
10/12
Primary Roof Pitch
12:12
Secondary Roof Pitch
6:12
Teritary Roof Pitch
Single
Dwelling Number
2nd Floor
Bonus Access

Unheated Living Space
616 Ft
2
Garage
311 Ft
2
Storage
193 Ft
2
Porch
486 Ft
2
Bonus Room


Plan Package Options

 Select Plan Package
$1,455
Study Set - Printed
One printed set of house plans stamped NOT FOR CONSTRUCTION". This set is intended for review purposes and are mailed to you. To build from the plans, you need to upgrade to a licensed set.
$1,455
$1,570
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,570
$1,680
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,680
$1,790
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,790
$2,325
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,325
 Need To Reverse Plan? (Optional)
$150
Readable Reverse

Reverse house plans with readable text and dimensions

$150
  Select Foundation Option
  Add-Ons (Optional)

Free Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
