House Plan 5786: The Wimberley

This plan is a great use of space. The Family Room is relaxing with a fireplace and plenty of windows for viewing nature. The large island Kitchen is complete with breakfast Nook, and plenty of storage. The Master Suite and Bath are the perfect retreat for relaxing.  Read more >

House Plan Details

Sq. Ft.
1,779
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
60' 0"
Depth
55' 5"
1st Floor
1,779
Garage
549
Porch
391
Select Plan Package
Five Sets
$540
Select Foundation Options
$0
Basement
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

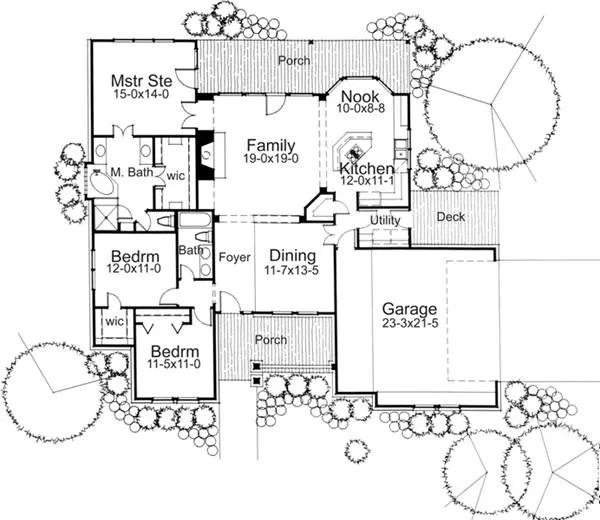

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 2
Stories: 1
Exterior Style
Contemporary
European
Dimensions
Width: 60' 0"
Height: 25' 10"
Depth: 55' 5"
Heated Living Space
Total Sq. Ft: 1,779
1st Floor: 1,779
Unheated Living Space
Garage: 549
Porch: 391
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 9
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Kitchen Features
Walk-in Pantry
Walk-in Pantry
Additional Room Features
Garage Location
Side
Garage Features
Attached
Attached
Lot Features
Roof Pitch
Primary: 12:12
Secondary: 8:12
Porch: 3:12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
