House Plan 1774: The Waimea

Picture yourself enjoying the view from the decks of the Waimea, because with its main living spaces on the second floor this home truly is designed for a view. The second floor boasts an efficient and open space with the Master Bedroom situated to the wonderful view and includes a walk-in shower.  Read more >

House Plan Details

Sq. Ft.
2,005
Beds
3
Baths
3.0
Stories
2
Garages
3
Width
39' 0"
Depth
48' 2"
Select Plan Package
PDF Plan Package
$1445
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

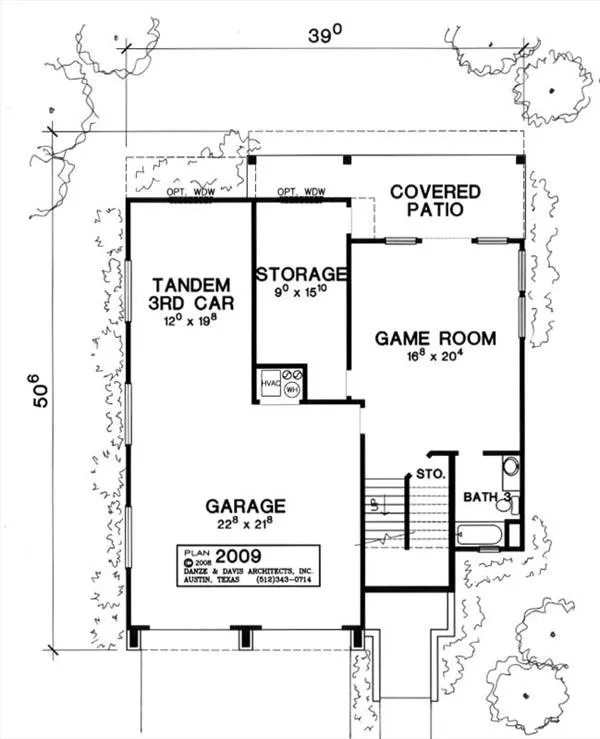

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
2,005
1st Floor SQ. FT.:
1,567
Lower:
438
Bedrooms:
3
Bathrooms:
3.0
Garage:
3
Stories:
2
Main Ceiling Height:
9'
Upper Ceiling Height:
9/Slope'
Framing:
2x4 or 2x6
Roof Framing:
Stick
Roof Pitch:
Primary: 3/12
Width:
39' 0"
Height:
27' 4"
Depth:
48' 2"
Exterior Styles:
Beach
Contemporary
Modern
Unheated Living Space:
Garage: 992
Porch: 38
Deck: 232
Patio: 183
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Master Bdrm Main Floor
Walk-in Closet
Kitchen Features:
Kitchen Island
Additonal Features:
Family Room
Inverted Living
Library/Media Rm
Rec Room
Storage Space
Garage Features:
Attached
Tandem
Garage Location:
Front
Lot Features:
Suited for narrow lot
Suited for view lot
