Sq Ft
1,831 FT²
Bed
3
Bath
2.5
Stories
1
Garage
2
Depth
74' 3"
Width
50'
On Sale
$1,100.75
$1,295.00
© copyright by designer
View All 3 Images | Photographs may reflect modified home
Sq Ft
1,831 FT²
From
$1,100.75
Bed
3
Bath
2.5
Stories
1
Garage
2
Depth
74' 3"
Width
50'

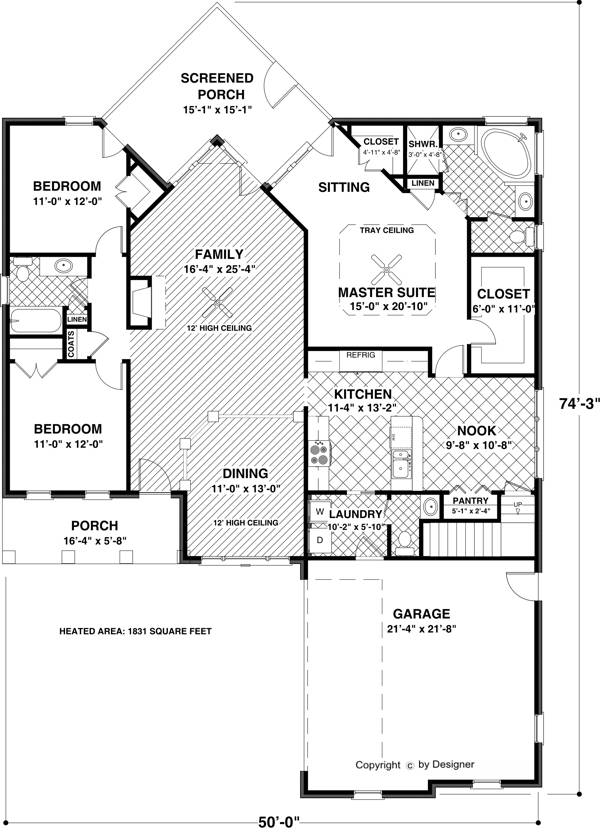

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

This lovely 1,831 sq. ft. plan is a Jim Wells signature design. An inviting covered porch welcomes you to a dining room, surrounded by classic columns, and a spacious family room. A cozy fireplace, 12 high ceilings and an arch-top window unit highlight this space. Located off the family room is a screened porch that is perfect for relaxing with a good book. Look closely and youll see the foremost walls form a W, the signature of this Jim Wells collection! This functional split bedroom plan offers a private master suite near the kitchen. Abundant closet space, a sitting/reading area and roomy master bath with separate vanities, corner garden tub, shower and toilet compartment make this truly an owners paradise. The opposite end of the house features two comfortable bedrooms and a full bath. Boasting a serving bar and breakfast nook with a pantry, the kitchen is a gourmets delight. The laundry room with an adjacent powder room is located off the kitchen. A door in the breakfast nook leads to a double bonus 2 bonus rooms to be exact! These could serve any number of functions including a home office, media room, playroom, library, craft/sewing room, etc.


FEATURES & DETAILS

Kitchen features
Nook / Breakfast Area
Walk-in Pantry
Bedroom features
Master Bdrm Main Floor
Sitting Area
Exterior features
Covered Front Porch
Front Porch
Screened Porch/Sunroom
Foundation Options
Basement
Crawlspace
Slab
Lot Options
Suited for narrow lot
Additional features
Family Room
Laundry 1st Fl
Garage Location
Side
Garage Options
Attached
1,831 Ft
2
Total Heated
3
Bedrooms
2.5
Bathrooms
2
Garage
1
Stories
50' 0"
Width
74' 3"
Depth
22' 6"
Height
9'-0"' 0"
Main Floor Ceiling
2x4
Framing
Slab
Roof Framing
7/12
Primary Roof Pitch
12/12
Secondary Roof Pitch
Single
Dwelling Number
1st Floor
Bonus Access

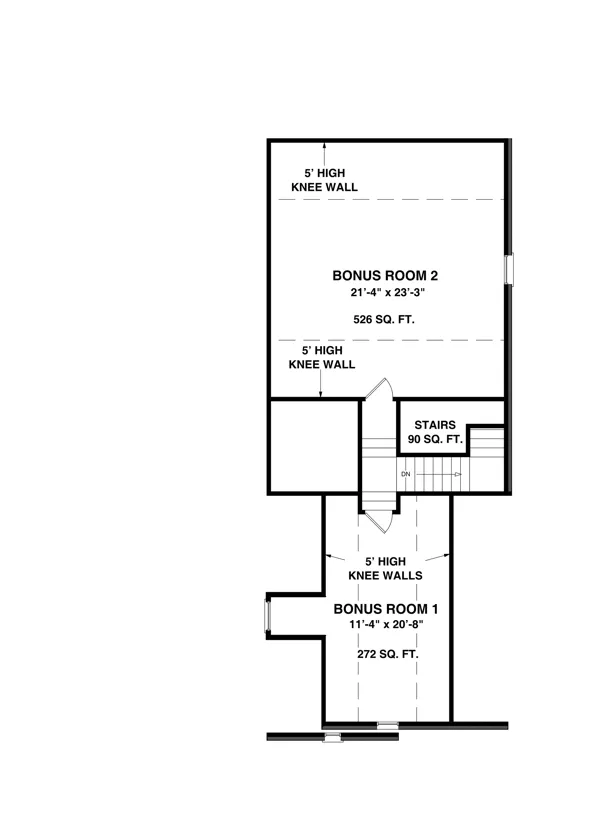

Unheated Living Space
888 Ft
2
Bonus Room


Plan Package Options

 Select Plan Package
$845
PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$845
$1,295
PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,295
$1,345
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,345
$1,395
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,395
$1,795
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,795
 Need To Reverse Plan? (Optional)
$295
Readable Reverse

Reverse house plans with readable text and dimensions

$295
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
