House Plan 5419: The Springfield

An appealing wraparound porch and a rear porch are prominent exterior design features of this country farmhouse style home. The first floor master suite has direct access to the rear porch. Two bedrooms and a playroom are upstairs. The first level has a country kitchen and a study at the entry. The rear garage is side entry.

Click to Zoom In on Floor Plan

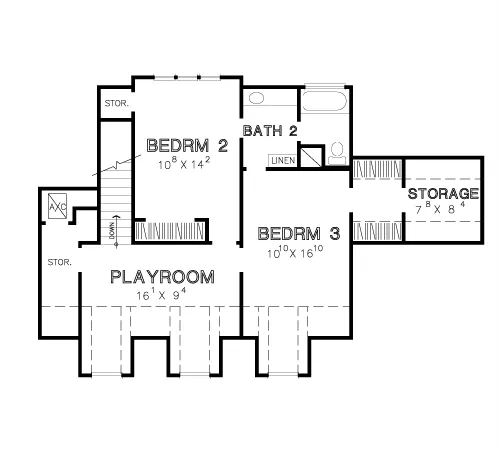

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,445

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
States N/A: TX,NM,LA
2D electronic editable computer files
$2,445
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$300
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.
Features:
View All Plan Features
Garage Location
Side
Garage Features
Attached

Hide Plan Features
Details:
View All Plan Details
2,596 Ft
2
Total Heated:
1,673 Ft
2
1st Floor:
923 Ft
2
2nd Floor:
3
Bedrooms:
2.5
Bathrooms:
2
Garage:
2
Stories:
62' 4"
Width:
66' 8"
Depth:
27' 5"
Height:
9
Main Floor Ceiling:
9
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
12/12
Primary Roof Pitch:
6/12
Secondary Roof Pitch:
12/12
Dormer Roof Pitch:
4/12
Porch Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
456 Ft
2
Garage:
430 Ft
2
Porch:
227 Ft
2
Patio:
