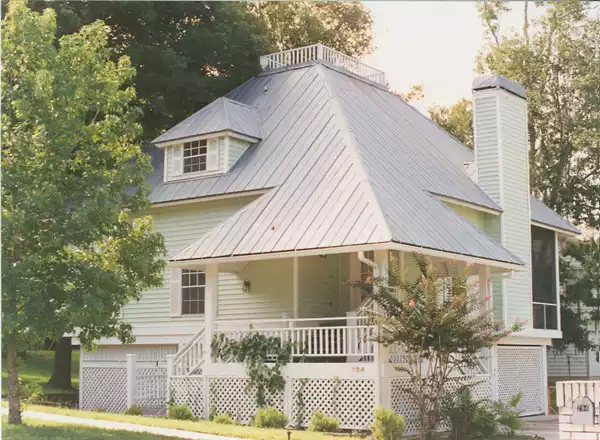

Front Photo View
Left Elevation

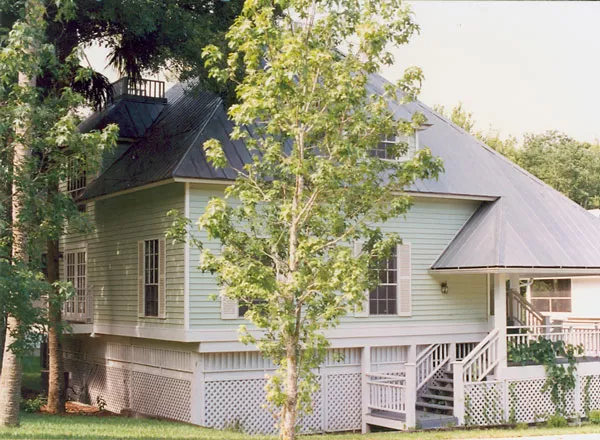

Rear Elevation

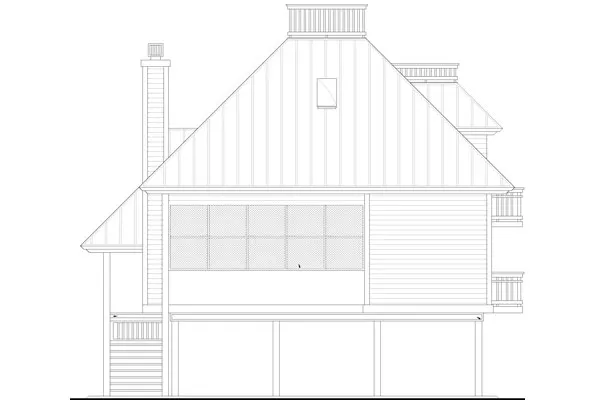

Rear Elevation

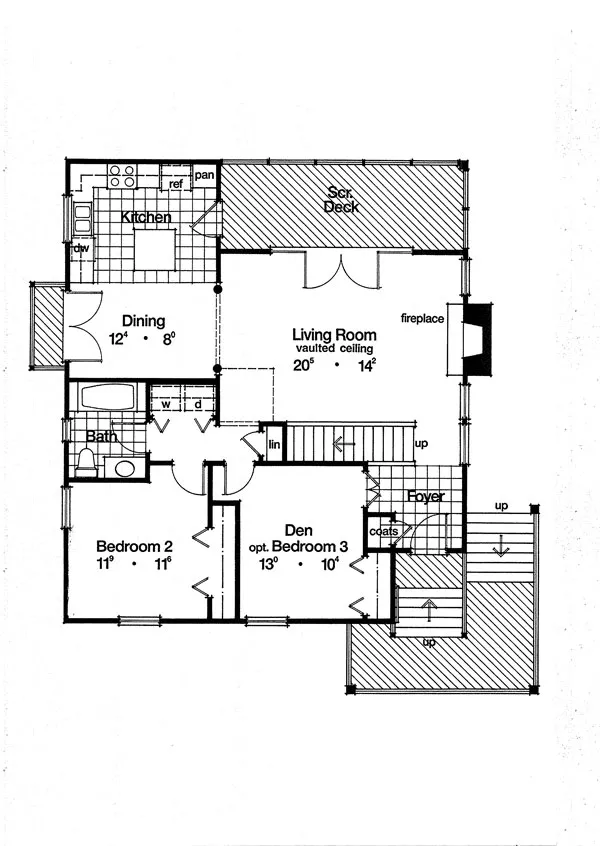

First Floor Plan

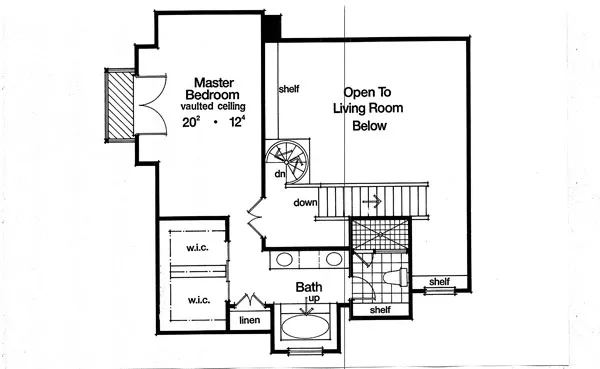

Second Floor Plan
© copyright by designer
Mouse over photo to pause

House Plan 3943: THE SIESTA KEY

This luxuriously appointed design is not only functional, but exciting to describe. The foyer welcomes you to a versatile design, with a den/guest room on the left. A staircase will lead you to the private master's quarters, which even has a spiral stair to the lookout high atop the roof.  Read more >

House Plan Details

Sq. Ft.
1,679
Beds
3
Baths
2.0
Stories
2
Garages
0
Width
33' 9"
Depth
39' 0"
Select Plan Package
PDF File Package
$950
Select Foundation Options
$0
Basement *Modification*
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,679
1st Floor SQ. FT.:
1,125
2nd Floor SQ. FT.:
554
Bedrooms:
3
Bathrooms:
2.0
Garage:
0
Stories:
2
Main Ceiling Height:
8'
Upper Ceiling Height:
Vaulted'
Framing:
2x4
Roof Framing:
Truss
Roof Pitch:
Primary: 12/12
Width:
33' 9"
Depth:
39' 0"
Height:
35' 4"
Exterior Styles:
Beach
Bungalow
Unheated Living Space:
Porch: 188
Patio: 156
HOME FEATURES
Bedroom Features:
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Upstairs
Separate Tub and Shower
Kitchen Features:
Additional Features:
Dining Room
Family Room
Fireplace
Laundry 1st Fl
Vaulted Ceilings
Garage Features:
None
Garage Location:
Lot Features:
Suited for view lot
