HOUSE PLANS
START AT $1,200
SQ FT
1,002
BEDS
2
BATHS
2
STORIES
1
CARS
2
WIDTH
52'
DEPTH
38' 4"
© copyright by designer
Photographs may reflect modified homes.
SQ FT
1,002
BEDS
2
BATHS
2
STORIES
1
CARS
2



House Plan 5862: The Sierra

This design includes many requested features, and is a two car garage version of one of our most popular houses. The plan features 9' ceilings, two large bedrooms, two baths (one with oversized jet tub, and one with tub/shower combination), two raised bars for informal visiting with friends and family, a sunroom, separate laundry, linen, pantry, gas logs and plenty of built-ins. These features make this a very functional and fun home to live in!  Read more >
Click to Zoom In on Floor Plan

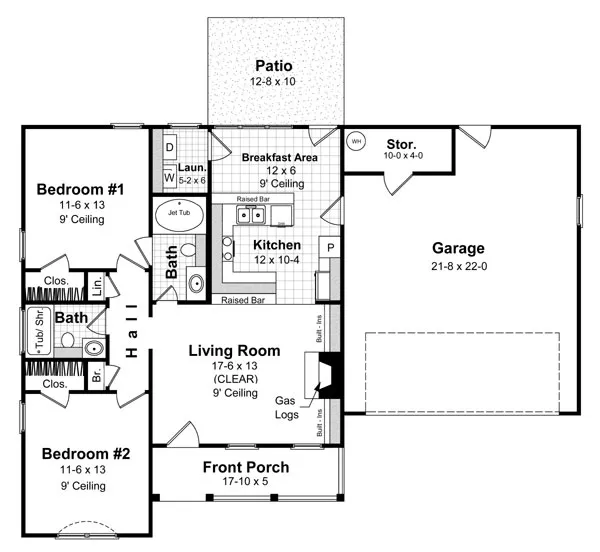

Floor Plans
© copyright by designer
Plan Packages
Select Plan Package

One Set


The basic package of drawings needed to build your new home.
One Set
A one set package
$1,075

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,200

PDF Single Build


Digital plans emailed to you in PDF format allows making minor changes and printing copies on home printer or local print shop and sharing with contractors, subs, decorators and more Digital plans emailed to you in PDF format allows making minor changes and printing copies on home printer or local print shop and sharing with contractors, subs, decorators and more.

PDF Single Build
Most recommended package
$1,300

5 Printed Sets + PDF


Digital plan emailed to you in PDF format, allows making minor changes and printing copies on home printer or local print shop and sharing with contractors, subs, decorators and more PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF
Digital plans plus 5 printed sets
$1,375

Vellums


"Recommended" - For making minor changes to your house plans. Delivered on Reproducible Vellum.
Vellums
A vellums package
$1,475

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$1,725
Standard or Readable Reverse?
Standard $0

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$150
Select Foundation Option
Optional Add-Ons
Subtotal:
$0
Free Shipping
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
Features:
View All Plan Features
Kitchen features
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Bedroom features
Master Bdrm Main Floor
Lot features
Suited for corner lot
Suited for narrow lot
Suited for sloping lot
Suited for view lot
Additional features
Exercise Room
Family Room
Fireplace
Great Room
Laundry 1st Fl
Storage Space
Workshop
Garage Location
Side
Garage Features
Attached
Front-entry
Oversized
Details:
View All Plan Details
1,002
Total Sq. Ft.:
2
Bedrooms:
2
Bathrooms:
2
Garage:
1
Stories:
52' 0"
Width:
38' 4"
Depth:
18' 2"
Height:
9
Main Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
6/12
Primary Roof Pitch:
Single
Dwelling Number:
None
Bonus Access:
Unheated Living Space
546 Ft
2
Garage:
48 Ft
2
Storage:
89 Ft
2
Porch:
Exterior Styles
Country
Traditional
Best Price Guarantee

If you find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% Satisfaction Guarantee

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
