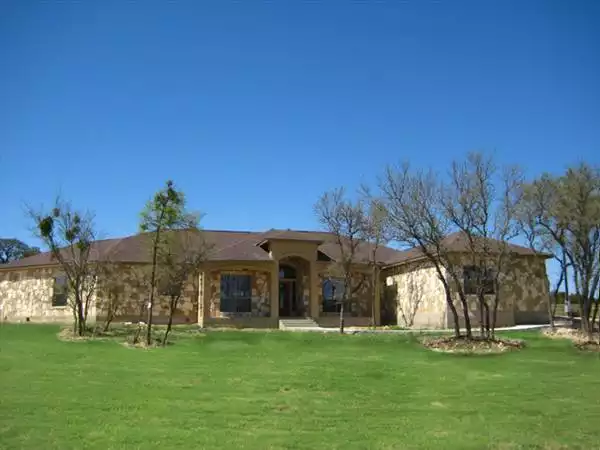

See all 1 photos (photographs may reflect modified homes)
© copyright by designer

Mouse over photo to pause

House Plan 5413: The Sendero

A high arched entry is the exterior focus of this stucco single level Mediterranean style home. The remote master suite has an adjacent study/office. Popular features include a formal dining area and a kitchen serving counter to the great room.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
2,388
Beds
4
Baths
2.1
Stories
1
Garages
2
Width
94' 4"
Depth
61' 10"
Modify this Home Plan
Estimate the Cost to Build
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
PDF Plan Package
$1445
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.
SEE DETAILED PLAN OPTIONS
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

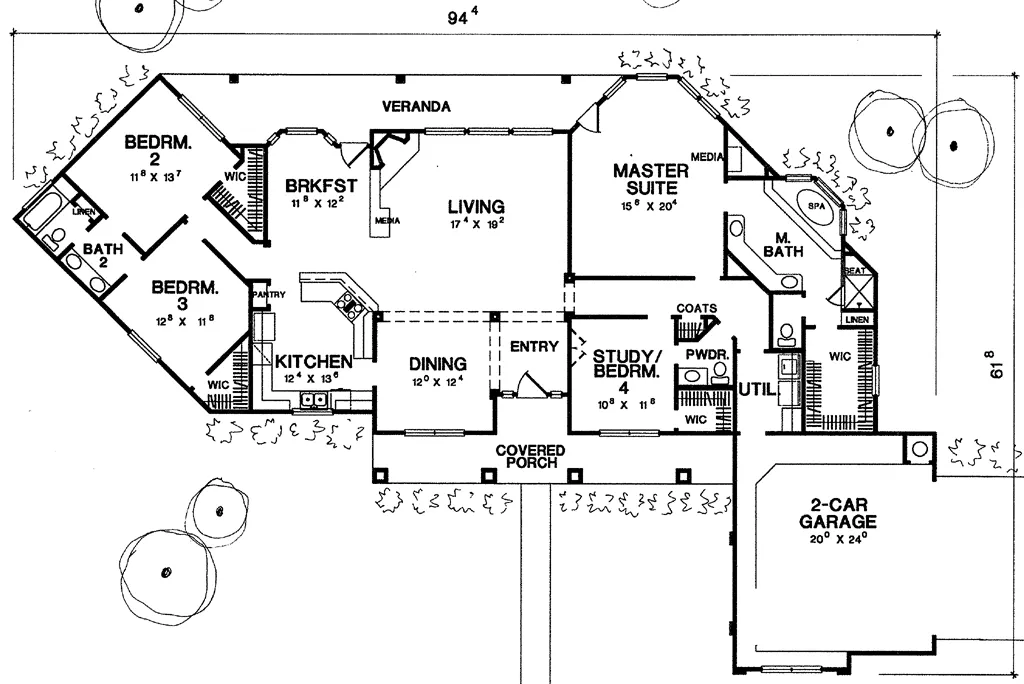

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
2,388
1st Floor SQ. FT.:
2,388
Bedrooms:
4
Bathrooms:
2.1
Garage:
2
Stories:
1
Main Ceiling Height:
10'
Upper Ceiling Height:
'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 6/12
Width:
94' 4"
Depth:
61' 10"
Height:
19' 0"
Exterior Styles:
Mediterranean
Southwest
Traditional
Unheated Living Space:
Garage: 490
Porch: 193
HOME FEATURES
Bedroom Features:
Kitchen Features:
Additonal Features:
Garage Features:
Attached
Garage Location:
Side
Lot Features:
